Home / Products / GB812 Black Medium-Carbon Steel Four-Slot Round Lock Nuts, M10-M200

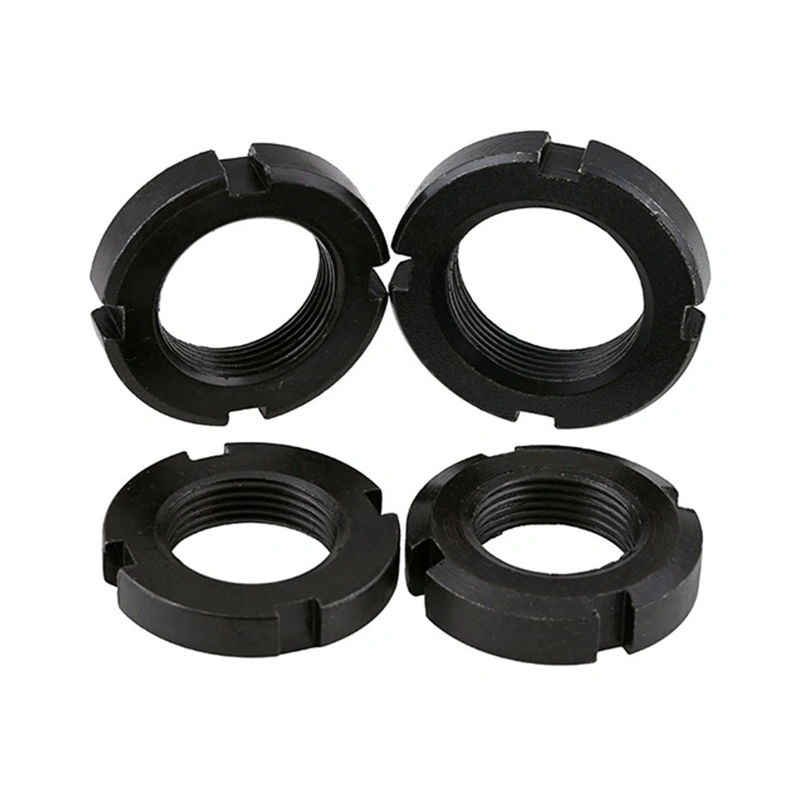

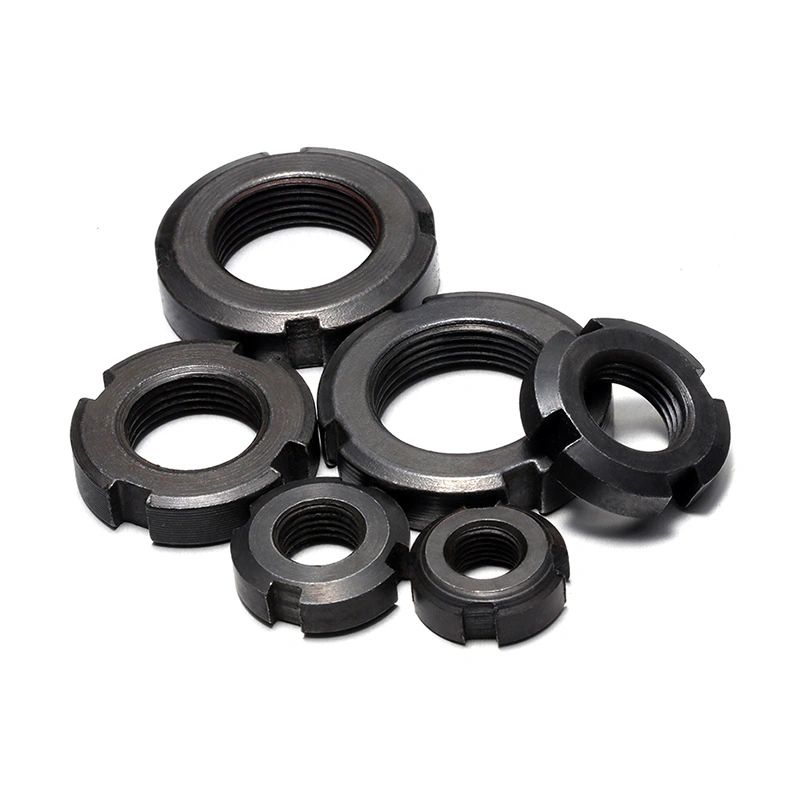

GB812 Black Medium-Carbon Steel Four-Slot Round Lock Nuts, M10-M200

PRODUCT SPECIFICATIONS

GB812 Black Medium-Carbon Steel Four-Slot Round Lock Nuts, M10-M200

Black medium-carbon steel round lock nuts with four external slots, identified as GB812 in the supplier title. Preserve the selected thread direction, thin or standard version, diameter and pitch. The source reference drawing retains all dimensions and mass values.

Price range: $0.17 through $18.75

Reference unit price · Confirm quantity and terms by inquiry

No online payment. Only email is required to inquire.

Product details

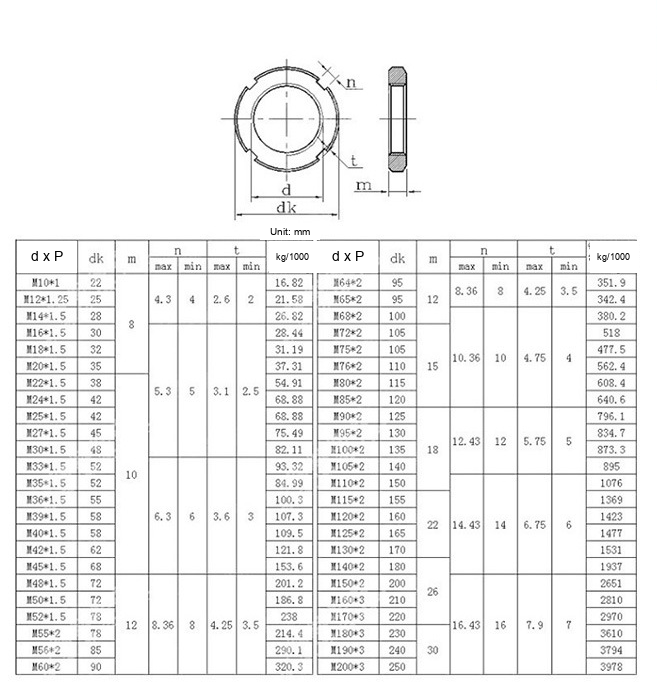

GB812 Black Medium-Carbon Steel Four-Slot Round Lock Nuts, M10-M200 - Technical Dimensions

Black medium-carbon steel round lock nuts with four external slots, identified as GB812 in the supplier title. Preserve the selected thread direction, thin or standard version, diameter and pitch. The source reference drawing retains all dimensions and mass values.

Technical Specifications

Property Supplier data
Supplier standard GB812
Supplier material Medium-carbon steel
Colour Black
Form Four-slot round lock nut
Thread direction / version As specified by each original option
Unit mm

Model: 676802493722

View all specifications (149 options)
SpezifikationUnit priceItem Ref
right-hand thread thin version M10*1.0USD 0.17676802493722
right-hand thread thin version M12*1.25USD 0.19676802493722
right-hand thread thin version M14*1.5USD 0.20676802493722
right-hand thread thin version M16*1.5USD 0.20676802493722
right-hand thread thin version M18*1.5USD 0.21676802493722
right-hand thread thin version M20*1.5USD 0.21676802493722
right-hand thread thin version M22*1.5USD 0.24676802493722
right-hand thread thin version M24*1.5USD 0.24676802493722
right-hand thread thin version M25*1.5USD 0.30676802493722
right-hand thread thin version M27*1.5USD 0.32676802493722
right-hand thread thin version M30*1.5USD 0.25676802493722
right-hand thread thin version M33*1.5USD 0.34676802493722
right-hand thread thin version M35*1.5USD 0.37676802493722
right-hand thread thin version M36*1.5USD 0.31676802493722
right-hand thread thin version M39*1.5USD 0.42676802493722
right-hand thread thin version M40*1.5USD 0.42676802493722
right-hand thread thin version M42*1.5USD 0.46676802493722
right-hand thread thin version M45*1.5USD 0.47676802493722
right-hand thread thin version M48*1.5USD 0.27676802493722
right-hand thread thin version M50*1.5USD 0.27676802493722
right-hand thread thin version M52.1.5USD 0.33676802493722
right-hand thread thin version M55*1.5USD 0.31676802493722
right-hand thread thin version M56*2USD 0.40676802493722
right-hand thread thin version M58*2USD 0.41676802493722
right-hand thread thin version M60*2USD 0.42676802493722
right-hand thread thin version M62*2USD 0.44676802493722
right-hand thread thin version M64*2USD 0.44676802493722
right-hand thread thin version M65*2USD 0.46676802493722
right-hand thread thin version M68*2USD 0.48676802493722
right-hand thread thin version M70*2USD 0.50676802493722
right-hand thread thin version M72*2USD 0.57676802493722
right-hand thread thin version M75*2USD 0.57676802493722
right-hand thread thin version M76*2USD 0.60676802493722
right-hand thread thin version M78*2USD 0.64676802493722
right-hand thread thin version M80*2USD 0.66676802493722
right-hand thread thin version M85*2USD 0.71676802493722
right-hand thread thin version M90*2USD 0.82676802493722
right-hand thread thin version M95*2USD 0.89676802493722
right-hand thread thin version M100*2USD 0.94676802493722
right-hand thread thin version M105*2USD 0.97676802493722
right-hand thread thin version M110*2USD 1.06676802493722
right-hand thread thin version M115*2USD 1.27676802493722
right-hand thread thin version M120*2USD 1.45676802493722
right-hand thread thin version M125*2USD 1.51676802493722
right-hand thread thin version M130*2USD 1.60676802493722
right-hand thread thin version M135*2USD 1.81676802493722
right-hand thread thin version M140*2USD 2.12676802493722
right-hand thread thin version M145*2USD 2.22676802493722
right-hand thread thin version M150*2USD 2.42676802493722
right-hand thread thin version M170*3USD 3.83676802493722
right-hand thread thin version M180*3USD 4.53676802493722
right-hand thread thin version M190*3USD 4.84676802493722
right-hand thread thin version M200*3USD 5.14676802493722
left-hand thread thin version M10*1.0USD 0.22676802493722
left-hand thread thin version M12*1.25USD 0.23676802493722
left-hand thread thin version M14*1.5USD 0.25676802493722
left-hand thread thin version M16*1.5USD 0.25676802493722
left-hand thread thin version M18*1.5USD 0.27676802493722
left-hand thread thin version M20*1.5USD 0.29676802493722
left-hand thread thin version M22*1.5USD 0.31676802493722
left-hand thread thin version M24*1.5USD 0.35676802493722
left-hand thread thin version M25*1.5USD 0.36676802493722
left-hand thread thin version M27*1.5USD 0.39676802493722
left-hand thread thin version M30*1.5USD 0.39676802493722
left-hand thread thin version M33*1.5USD 0.40676802493722
left-hand thread thin version M35*1.5USD 0.48676802493722
left-hand thread thin version M36*1.5USD 0.50676802493722
left-hand thread thin version M39*1.5USD 0.23676802493722
left-hand thread thin version M40*1.5USD 0.24676802493722
left-hand thread thin version M42*1.5USD 0.26676802493722
left-hand thread thin version M45*1.5USD 0.26676802493722
left-hand thread thin version M48*1.5USD 0.34676802493722
left-hand thread thin version M50*1.5USD 0.35676802493722
left-hand thread thin version M52.1.5USD 0.43676802493722
left-hand thread thin version M55*1.5USD 0.52676802493722
left-hand thread thin version M56*2USD 0.52676802493722
left-hand thread thin version M58*2USD 0.42676802493722
left-hand thread thin version M60*2USD 0.55676802493722
left-hand thread thin version M62*2USD 0.57676802493722
left-hand thread thin version M64*2USD 0.57676802493722
left-hand thread thin version M65*2USD 0.60676802493722
left-hand thread thin version M68*2USD 0.64676802493722
left-hand thread thin version M70*2USD 0.65676802493722
left-hand thread thin version M72*2USD 0.74676802493722
left-hand thread thin version M75*2USD 0.75676802493722
left-hand thread thin version M76*2USD 0.60676802493722
left-hand thread thin version M78*2USD 0.82676802493722
left-hand thread thin version M80*2USD 0.86676802493722
left-hand thread thin version M85*2USD 0.92676802493722
left-hand thread thin version M90*2USD 1.06676802493722
left-hand thread thin version M95*2USD 1.16676802493722
left-hand thread thin version M100*2USD 0.97676802493722
left-hand thread thin version M105*2USD 1.26676802493722
left-hand thread thin version M110*2USD 1.37676802493722
left-hand thread thin version M115*2USD 1.65676802493722
left-hand thread thin version M120*2USD 1.89676802493722
left-hand thread thin version M125*2USD 1.96676802493722
left-hand thread thin version M130*2USD 2.08676802493722
left-hand thread thin version M135*2USD 2.36676802493722
left-hand thread thin version M140*2USD 2.75676802493722
left-hand thread thin version M150*2USD 3.14676802493722
right-hand thread standard version M10*1.0USD 0.39676802493722
right-hand thread standard version M12*1.25USD 0.40676802493722
right-hand thread standard version M14*1.5USD 0.42676802493722
right-hand thread standard version M16*1.5USD 0.46676802493722
right-hand thread standard version M18*1.5USD 0.48676802493722
right-hand thread standard version M20*1.5USD 0.24676802493722
right-hand thread standard version M22*1.5USD 0.31676802493722
right-hand thread standard version M24*1.5USD 0.36676802493722
right-hand thread standard version M25*1.5USD 0.36676802493722
right-hand thread standard version M27*1.5USD 0.37676802493722
right-hand thread standard version M30*1.5USD 0.39676802493722
right-hand thread standard version M33*1.5USD 0.44676802493722
right-hand thread standard version M35*1.5USD 0.35676802493722
right-hand thread standard version M36*1.5USD 0.40676802493722
right-hand thread standard version M39*1.5USD 0.56676802493722
right-hand thread standard version M40*1.5USD 0.56676802493722
right-hand thread standard version M42*1.5USD 0.60676802493722
right-hand thread standard version M45*1.5USD 0.76676802493722
right-hand thread standard version M48*1.5USD 0.90676802493722
right-hand thread standard version M50*1.5USD 0.90676802493722
right-hand thread standard version M52.1.5USD 1.06676802493722
right-hand thread standard version M55*2USD 1.10676802493722
right-hand thread standard version M56*2USD 1.28676802493722
right-hand thread standard version M60*2USD 1.44676802493722
right-hand thread standard version M62*2USD 1.51676802493722
right-hand thread standard version M64*2USD 1.64676802493722
right-hand thread standard version M65*2USD 1.64676802493722
right-hand thread standard version M68*2USD 1.79676802493722
right-hand thread standard version M72*2USD 1.79676802493722
right-hand thread standard version M75*2USD 2.27676802493722
right-hand thread standard version M76*2USD 2.59676802493722
right-hand thread standard version M80*2USD 3.11676802493722
right-hand thread standard version M85*2USD 3.99676802493722
right-hand thread standard version M90*2USD 3.99676802493722
right-hand thread standard version M95*2USD 4.19676802493722
right-hand thread standard version M100*2USD 4.39676802493722
right-hand thread standard version M105*2USD 4.59676802493722
right-hand thread standard version M110*2USD 5.19676802493722
right-hand thread standard version M115*2USD 6.39676802493722
right-hand thread standard version M120*2USD 6.98676802493722
right-hand thread standard version M125*2USD 7.38676802493722
right-hand thread standard version M130*2USD 7.78676802493722
right-hand thread standard version M140*2USD 9.97676802493722
right-hand thread standard version M150*2USD 12.77676802493722
right-hand thread standard version M170*3USD 13.96676802493722
right-hand thread standard version M180*3USD 17.16676802493722
right-hand thread standard version M190*3USD 17.95676802493722
right-hand thread standard version M200*3USD 18.75676802493722
