PRODUCT SPECIFICATIONS
Zinc-Plated Malleable Iron Turnbuckles, Supplier Grade 4.8

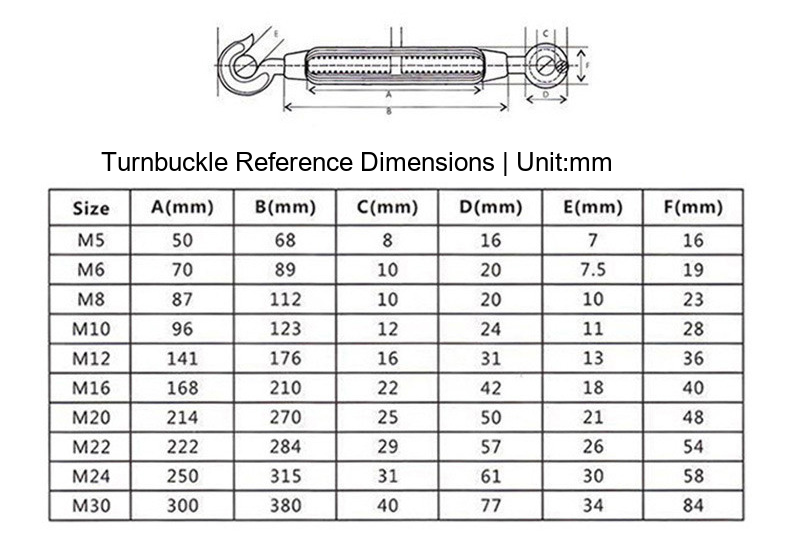

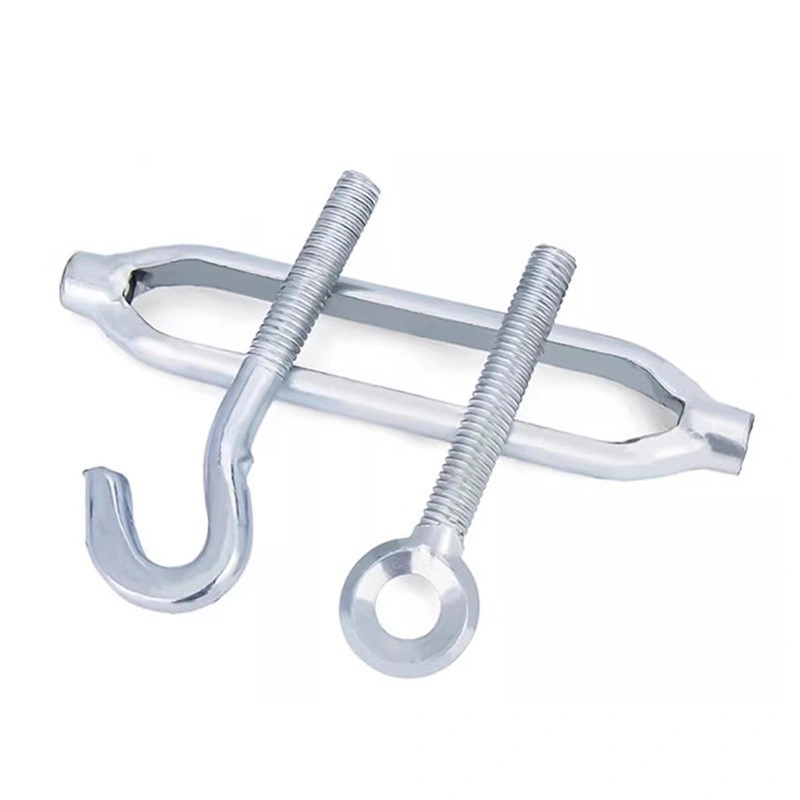

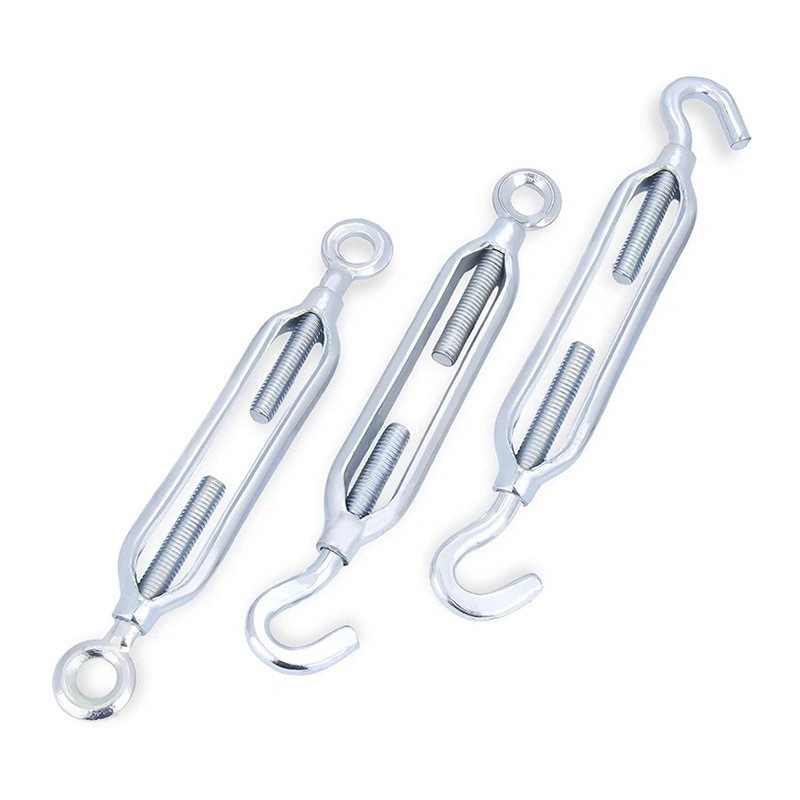

Zinc-plated open-body malleable-iron turnbuckles / wire tensioners. The supplier title states Grade4.8 for its double-ended fastener wording. Actual options select nominal size only; photographs show hook/eye alternatives. No extra end-form combinations or certified working-load rating are invented. The source reference drawing retains dimensions A-F.
Price range: $0.52 through $22.94
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
Zinc-plated open-body malleable-iron turnbuckles / wire tensioners. The supplier title states Grade4.8 for its double-ended fastener wording. Actual options select nominal size only; photographs show hook/eye alternatives. No extra end-form combinations or certified working-load rating are invented. The source reference drawing retains dimensions A-F.
Technical Specifications
| Property | Supplier data |
|---|---|
| Supplier material wording | Malleable iron |
| Finish | Zinc plated |
| Supplier designation | Grade4.8 |
| Form | Open-body turnbuckle / tensioner |
| Selection | Original nominal size; end form requires confirmation |
| Reference unit | mm |
Model: 862638781418
