PRODUCT SPECIFICATIONS
304 / 201 / 316 Stainless Steel Domed Cap Nuts, GB923, M3-M24

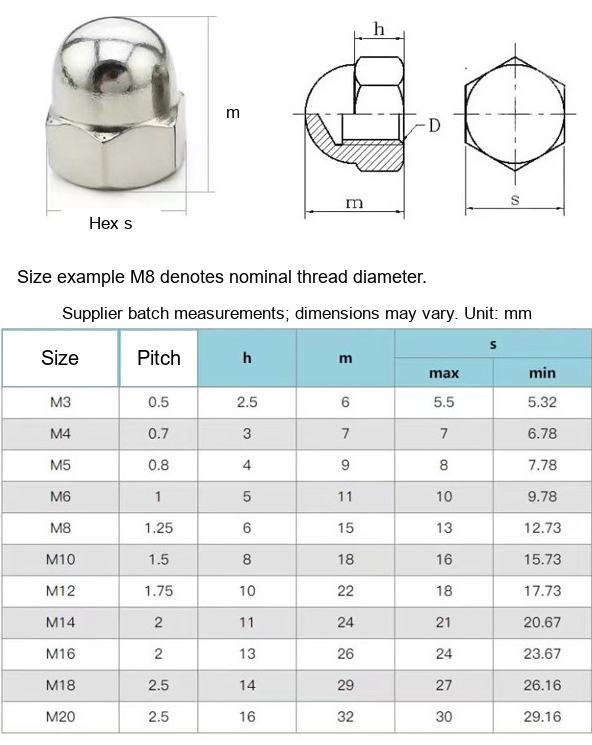

Domed / acorn hex cap nuts in actual304,316 and201 stainless steel options. The supplier title identifies GB923 and decorative cap applications. Material and nominal size remain part of each exact original option. The source drawing and table retain dome height, hex height, width across flats and pitch.
Price range: $0.07 through $5.81
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
Domed / acorn hex cap nuts in actual304,316 and201 stainless steel options. The supplier title identifies GB923 and decorative cap applications. Material and nominal size remain part of each exact original option. The source drawing and table retain dome height, hex height, width across flats and pitch.
Technical Specifications
| Property | Supplier data |
|---|---|
| Materials | 304 /316 /201 stainless steel as selected |
| Type | Domed hex cap nut |
| Supplier standard | GB923 |
| Unit | mm |
Model: 997145215841
View all specifications (28 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| 304 stainless steelM3 | USD 0.09 | 997145215841 |
| 304 stainless steelM4 | USD 0.10 | 997145215841 |
| 304 stainless steelM5 | USD 0.11 | 997145215841 |
| 304 stainless steelM6 | USD 0.14 | 997145215841 |
| 304 stainless steelM8 | USD 0.24 | 997145215841 |
| 304 stainless steelM10 | USD 0.27 | 997145215841 |
| 304 stainless steelM12 | USD 0.38 | 997145215841 |
| 304 stainless steelM14 | USD 0.67 | 997145215841 |
| 304 stainless steelM16 | USD 0.81 | 997145215841 |
| 304 stainless steelM20 | USD 1.76 | 997145215841 |
| 304 stainless steelM24 | USD 5.81 | 997145215841 |
| 316 stainless steelM4 | USD 0.14 | 997145215841 |
| 316 stainless steelM5 | USD 0.14 | 997145215841 |
| 316 stainless steelM6 | USD 0.19 | 997145215841 |
| 316 stainless steelM8 | USD 0.40 | 997145215841 |
| 316 stainless steelM10 | USD 0.32 | 997145215841 |
| 316 stainless steelM12 | USD 0.50 | 997145215841 |
| 316 stainless steelM16 | USD 1.23 | 997145215841 |
| 316 stainless steelM20 | USD 2.25 | 997145215841 |
| 201 stainless steelM4 | USD 0.07 | 997145215841 |
| 201 stainless steelM5 | USD 0.08 | 997145215841 |
| 201 stainless steelM6 | USD 0.08 | 997145215841 |
| 201 stainless steelM8 | USD 0.12 | 997145215841 |
| 201 stainless steelM10 | USD 0.21 | 997145215841 |
| 201 stainless steelM12 | USD 0.34 | 997145215841 |
| 201 stainless steelM14 | USD 0.53 | 997145215841 |
| 201 stainless steelM16 | USD 0.62 | 997145215841 |
| 201 stainless steelM18 | USD 1.13 | 997145215841 |
