PRODUCT SPECIFICATIONS
304 Stainless Steel Hex Head Internal Expansion Anchor Bolts, M6 / M8 / M10 / M12 / M16

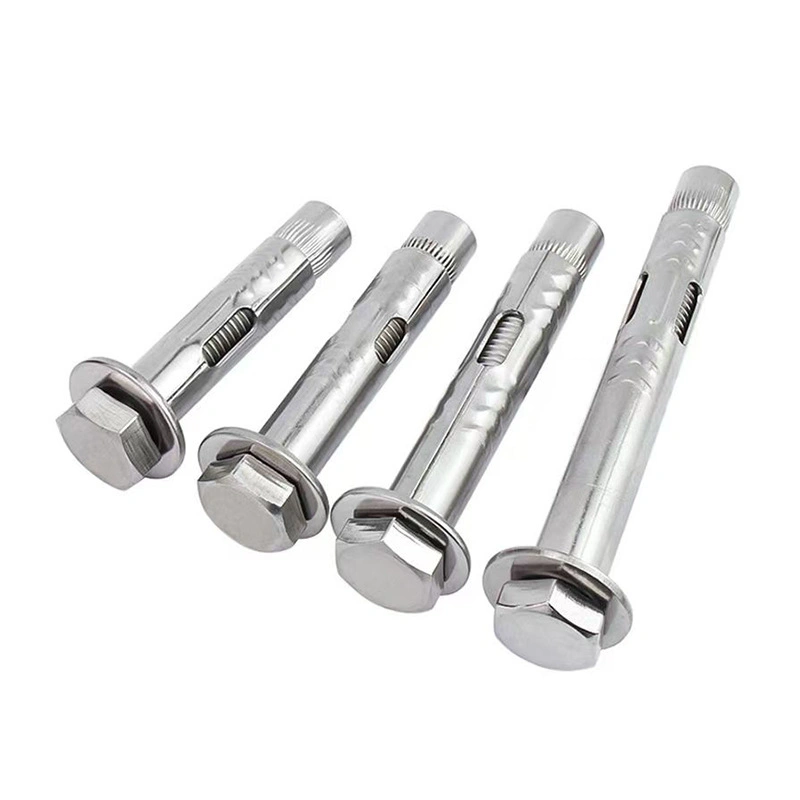

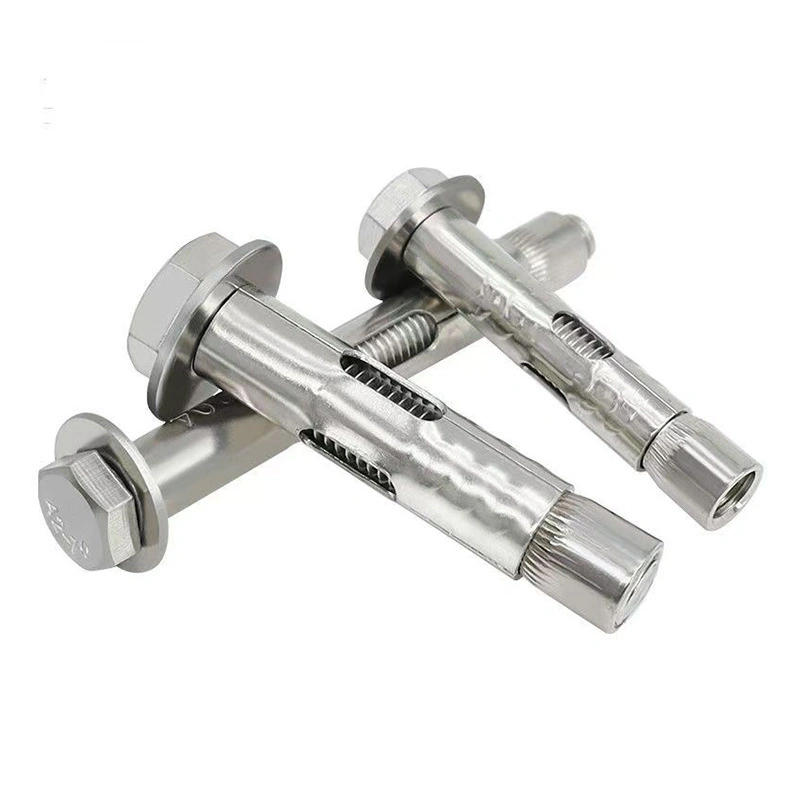

304 stainless steel internal expansion anchor assemblies with external hex head bolts, sleeves, nuts and washers as pictured. Exact source diameter and length options are retained. The source defines sleeve length excluding the head and preserves sleeve outside diameter, drill diameter and component dimensions.
Price range: $0.24 through $3.95
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
304 stainless steel internal expansion anchor assemblies with external hex head bolts, sleeves, nuts and washers as pictured. Exact source diameter and length options are retained. The source defines sleeve length excluding the head and preserves sleeve outside diameter, drill diameter and component dimensions.
Technical Specifications
| Property | Supplier data |
|---|---|
| Material | 304 stainless steel |
| Type | Hex bolt internal expansion assembly |

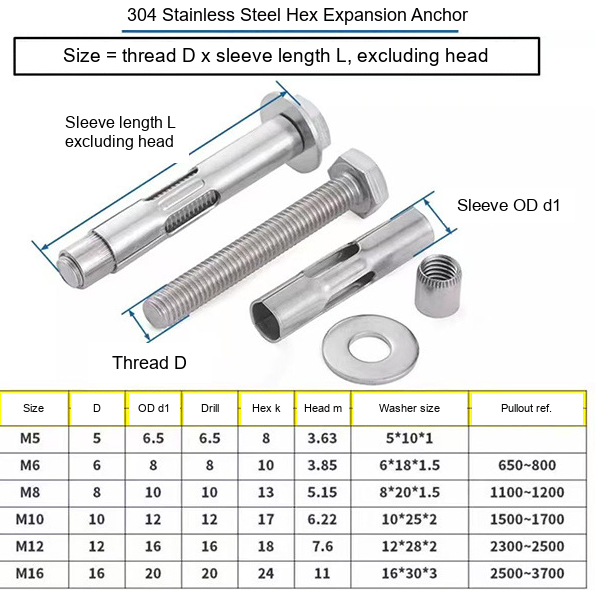

| Length convention | Sleeve length excluding head |
| Dimension unit | mm |
| Pullout data | Source unit/test conditions unspecified; not a safe-load rating |
Model: 990930822648
View all specifications (23 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| M6*50 | USD 0.41 | 990930822648 |
| M6*60 | USD 0.45 | 990930822648 |
| M6*80 | USD 0.24 | 990930822648 |
| M6*100 | USD 0.32 | 990930822648 |
| M8*50 | USD 0.26 | 990930822648 |
| M8*60 | USD 0.30 | 990930822648 |
| M8*80 | USD 0.36 | 990930822648 |
| M8*100 | USD 0.43 | 990930822648 |
| M10*60 | USD 0.48 | 990930822648 |
| M10*70 | USD 0.54 | 990930822648 |
| M10*80 | USD 0.59 | 990930822648 |
| M10*90 | USD 0.65 | 990930822648 |
| M10*100 | USD 0.70 | 990930822648 |
| M10*120 | USD 0.81 | 990930822648 |
| M12*80 | USD 0.89 | 990930822648 |
| M12*90 | USD 0.96 | 990930822648 |
| M12*100 | USD 1.05 | 990930822648 |
| M12*110 | USD 1.12 | 990930822648 |
| M12*120 | USD 1.20 | 990930822648 |
| M12*150 | USD 1.49 | 990930822648 |
| M16*100 | USD 3.16 | 990930822648 |
| M16*120 | USD 3.50 | 990930822648 |
| M16*150 | USD 3.95 | 990930822648 |
