PRODUCT SPECIFICATIONS

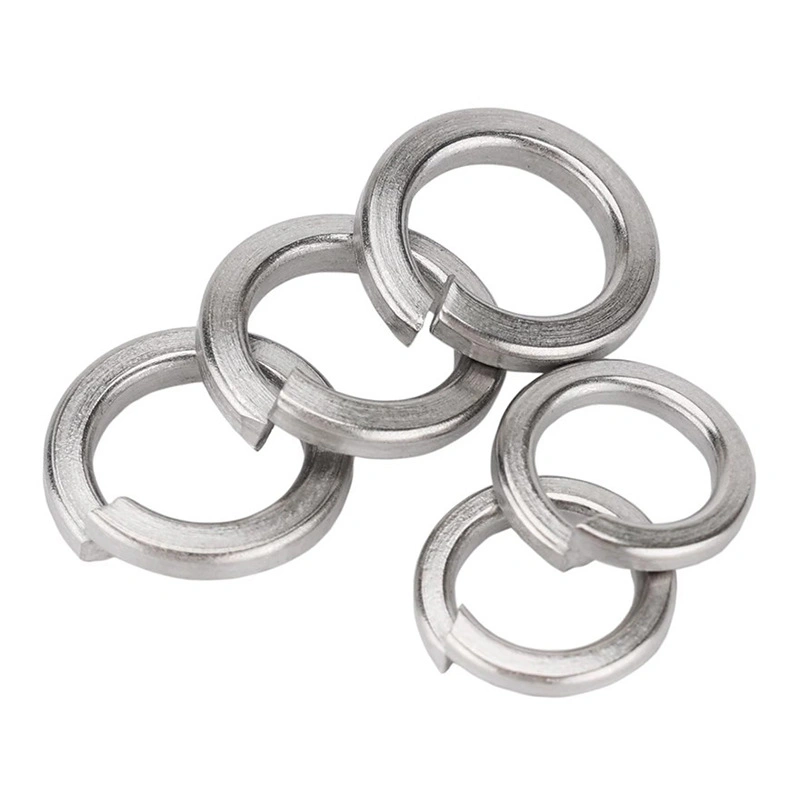

304 Stainless Steel Split Spring Lock Washers, M6/M8/M10-M52

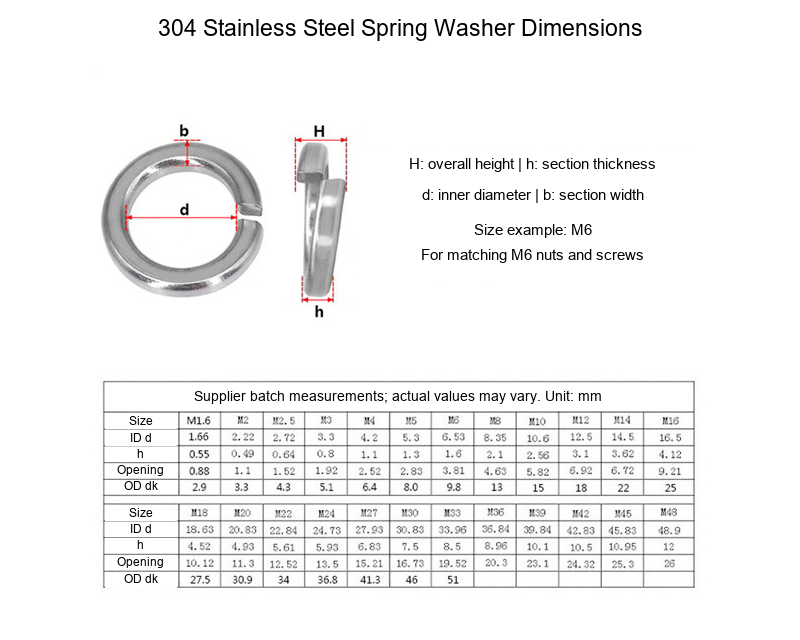

304 stainless steel split spring lock washers. Select the exact listed nominal size. The supplier drawing identifies inner diameter d, section width b, section thickness h and overall height H. Source measurements and unavailable outer-diameter cells remain unchanged.
Price range: $0.02 through $7.36
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
304 stainless steel split spring lock washers. Select the exact listed nominal size. The supplier drawing identifies inner diameter d, section width b, section thickness h and overall height H. Source measurements and unavailable outer-diameter cells remain unchanged.
Technical Specifications
| Property | Supplier data |
|---|---|
| Material | 304 stainless steel |
| Type | Split spring lock washer |
| Specification | As selected in original source order |
| Unit | mm |
Model: 680343248080
View all specifications (21 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| M3 | USD 0.02 | 680343248080 |
| M4 | USD 0.02 | 680343248080 |
| M5 | USD 0.02 | 680343248080 |
| M6 | USD 0.03 | 680343248080 |
| M8 | USD 0.06 | 680343248080 |
| M10 | USD 0.10 | 680343248080 |
| M12 | USD 0.09 | 680343248080 |
| M14 | USD 0.15 | 680343248080 |
| M16 | USD 0.22 | 680343248080 |
| M18 | USD 0.29 | 680343248080 |
| M20 | USD 0.39 | 680343248080 |
| M22 | USD 0.23 | 680343248080 |
| M24 | USD 0.29 | 680343248080 |
| M27 | USD 0.43 | 680343248080 |
| M30 | USD 0.58 | 680343248080 |
| M33 | USD 0.97 | 680343248080 |
| M36 | USD 1.32 | 680343248080 |
| M39 | USD 3.62 | 680343248080 |
| M42 | USD 4.92 | 680343248080 |
| M45 | USD 5.76 | 680343248080 |
| M48 | USD 7.36 | 680343248080 |
