Home / Products / 316 Stainless Steel Fully Threaded Long Hex Bolts M6M8M10M12M16M20-M2

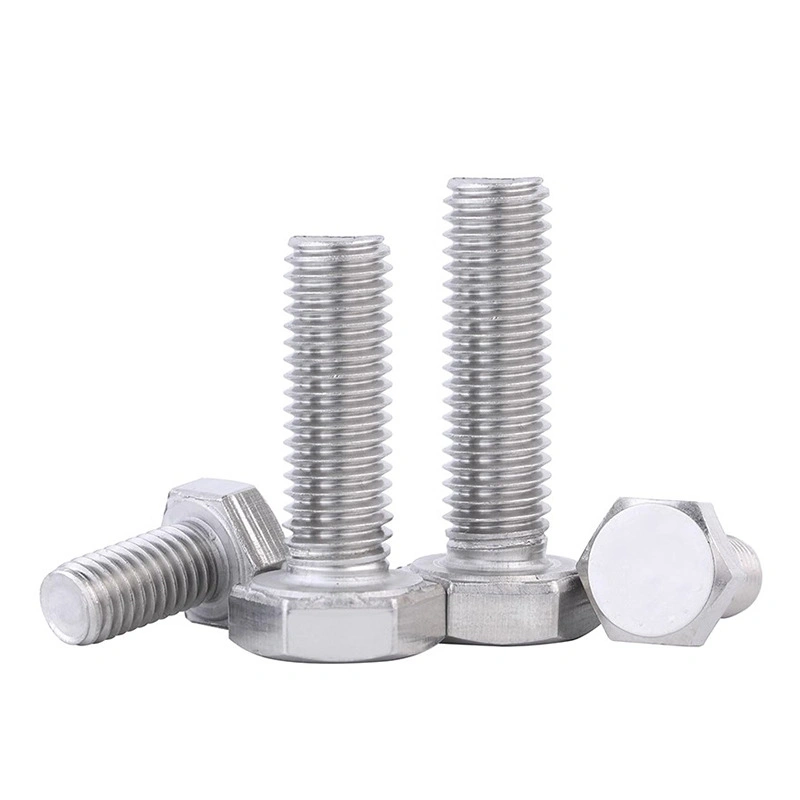

316 Stainless Steel Full-Thread Hex Head Bolts, Extended Lengths, M6 / M8 / M10 / M12 / M16 / M20

PRODUCT SPECIFICATIONS

316 Stainless Steel Fully Threaded Long Hex Bolts M6M8M10M12M16M20-M2

316 stainless steel fully threaded hex head bolts, including extended lengths. Select the actual supplier diameter and length. The source title ends with an incomplete trailing size token; no missing size has been invented. Source reference dimensions for A/B tolerance grades are preserved without asserting that a particular tolerance grade applies to every option.

Price range: $0.15 through $10.73

Reference unit price · Confirm quantity and terms by inquiry

No online payment. Only email is required to inquire.

Product details

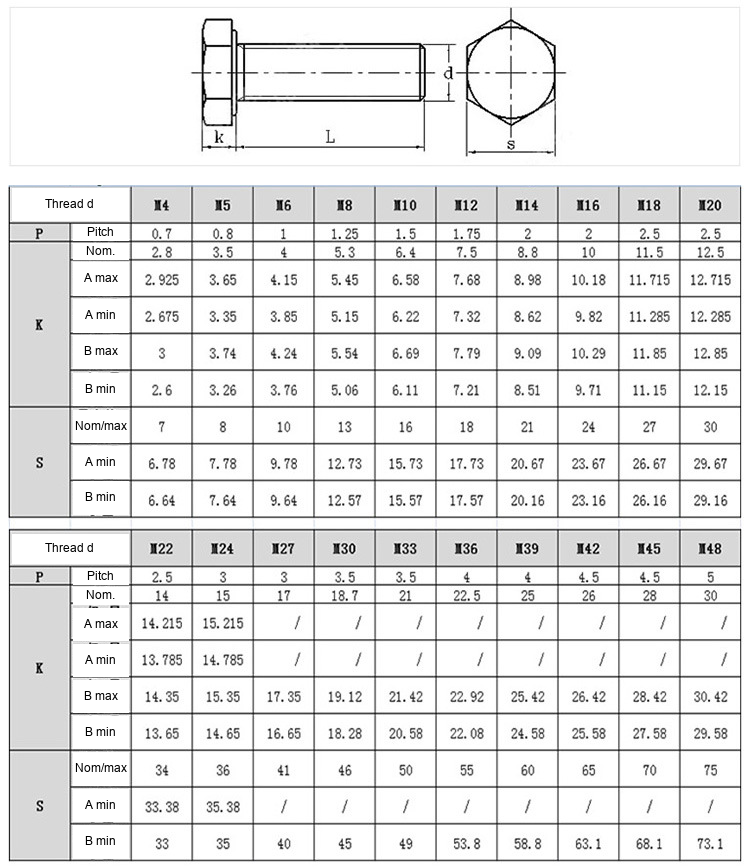

316 Stainless Steel Full-Thread Hex Head Bolts, Extended Lengths, M6 / M8 / M10 / M12 / M16 / M20 - Technical Dimensions

316 stainless steel fully threaded hex head bolts, including extended lengths. Select the actual supplier diameter and length. The source title ends with an incomplete trailing size token; no missing size has been invented. Source reference dimensions for A/B tolerance grades are preserved without asserting that a particular tolerance grade applies to every option.

Technical Specifications

Property Supplier data
Material 316 stainless steel
Head Hex
Thread coverage Full thread, as stated by supplier
Length Excludes head
Reference tolerance Source A/B entries; exact supplied grade unverified
Unit mm

Model: 681728066613

View all specifications (96 options)
SpecificationUnit priceItem Ref
M6*16USD 0.15681728066613
M6*20USD 0.16681728066613
M6*25USD 0.19681728066613
M6*30USD 0.22681728066613
M6*35USD 0.25681728066613
M6*40USD 0.27681728066613
M6*50USD 0.33681728066613
M6*60USD 0.37681728066613
M6*80USD 0.47681728066613
M8*16USD 0.31681728066613
M8*20USD 0.34681728066613
M8*25USD 0.38681728066613
M8*30USD 0.42681728066613
M8*40USD 0.23681728066613
M8*50USD 0.26681728066613
M8*60USD 0.28681728066613
M10*16USD 0.24681728066613
M10*20USD 0.26681728066613
M10*25USD 0.29681728066613
M10*30USD 0.32681728066613
M10*35USD 0.36681728066613
M10*40USD 0.38681728066613
M10*45USD 0.41681728066613
M10*50USD 0.44681728066613
M10*60USD 0.50681728066613
M12*30USD 0.46681728066613
M12*35USD 0.50681728066613
M12*40USD 0.54681728066613
M12*45USD 0.59681728066613
M12*50USD 0.64681728066613
M12*55USD 0.68681728066613
M12*60USD 0.72681728066613
M12*70USD 0.80681728066613
M12*80USD 0.88681728066613
M14*20USD 0.67681728066613
M14*25USD 0.67681728066613
M14*30USD 0.73681728066613
M14*35USD 0.76681728066613
M14*40USD 0.83681728066613
M14*45USD 0.88681728066613
M14*50USD 0.95681728066613
M14*60USD 1.11681728066613
M14*70USD 1.19681728066613
M14*80USD 1.32681728066613
M14*90USD 1.45681728066613
M14*100USD 1.60681728066613
M14*110USD 1.74681728066613
M14*120USD 1.87681728066613
M16*25USD 0.84681728066613
M16*30USD 0.93681728066613
M16*35USD 0.99681728066613
M16*40USD 1.08681728066613
M16*45USD 1.16681728066613
M16*50USD 1.24681728066613
M16*55USD 1.32681728066613
M16*60USD 1.40681728066613
M16*65USD 1.48681728066613
M16*70USD 1.56681728066613
M16*80USD 1.73681728066613
M16*90USD 1.89681728066613
M16*100USD 2.04681728066613
M20*30USD 1.71681728066613
M20*35USD 1.82681728066613
M20*40USD 1.92681728066613
M20*45USD 2.04681728066613
M20*50USD 2.17681728066613
M20*55USD 2.30681728066613
M20*60USD 2.43681728066613
M20*65USD 2.54681728066613
M20*70USD 2.69681728066613
M20*80USD 2.93681728066613
M20*90USD 3.19681728066613
M20*100USD 3.45681728066613
M20*110USD 3.83681728066613
M20*120USD 3.96681728066613
M24*50USD 3.39681728066613
M24*60USD 3.73681728066613
M24*70USD 4.10681728066613
M24*80USD 4.46681728066613
M24*90USD 4.82681728066613
M24*100USD 5.20681728066613
M24*110USD 5.55681728066613
M24*120USD 5.90681728066613
M24*130USD 6.25681728066613
M24*140USD 6.60681728066613
M24*150USD 6.95681728066613
M27*60USD 6.03681728066613
M27*70USD 6.53681728066613
M27*80USD 7.03681728066613
M27*90USD 7.52681728066613
M27*100USD 8.03681728066613
M27*110USD 8.57681728066613
M27*120USD 9.12681728066613
M27*130USD 9.66681728066613
M27*140USD 10.21681728066613
M27*150USD 10.73681728066613
