PRODUCT SPECIFICATIONS

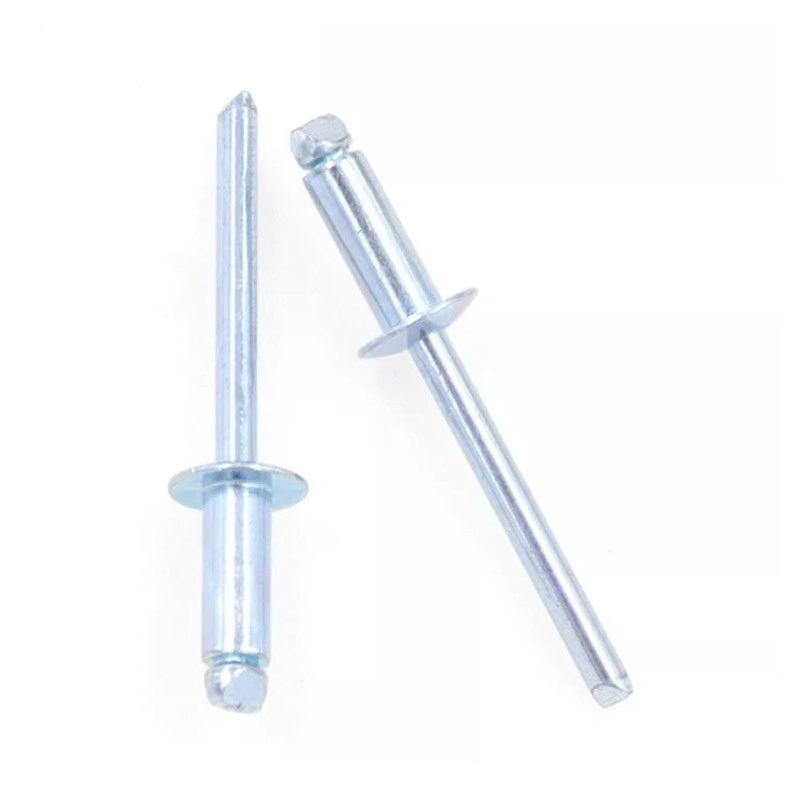

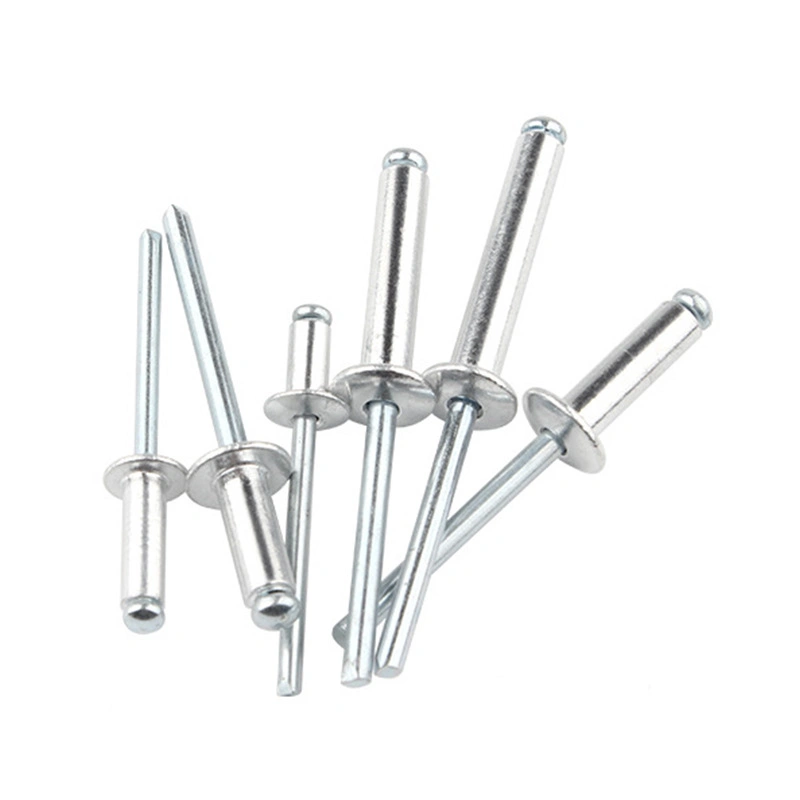

Aluminium Open-End Round Head Blind Rivets, M3.2 / M4 / M5
Aluminium open-end round-head blind / pop rivets. All original3.2,4 and5 mm body diameter, body length and500/1000-piece box options remain in order. The source drawing preserves body, flange and mandrel dimensions.
Price range: $3.90 through $14.07
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
Aluminium open-end round-head blind / pop rivets. All original3.2,4 and5 mm body diameter, body length and500/1000-piece box options remain in order. The source drawing preserves body, flange and mandrel dimensions.
Technical Specifications
| Property | Supplier data |
|---|---|
| Body material | Aluminium |
| Type | Open-end round-head blind rivet |
| Source body diameters | 3.2 /4 /5 mm |
| Size | Body diameter x body length |
| Reference unit | mm |
Model: 852246331770
View all specifications (22 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| 3.2*6 (1000 pieces per box) | USD 3.90 | 852246331770 |
| 3.2*8 (1000 pieces per box) | USD 3.90 | 852246331770 |
| 3.2*10 (1000 pieces per box) | USD 4.11 | 852246331770 |
| 3.2*12 (1000 pieces per box) | USD 4.11 | 852246331770 |
| 3.2*14 (1000 pieces per box) | USD 4.33 | 852246331770 |
| 3.2*16 (1000 pieces per box) | USD 4.76 | 852246331770 |
| 4*8 (1000 pieces per box) | USD 5.63 | 852246331770 |
| 4*10 (1000 pieces per box) | USD 5.63 | 852246331770 |
| 4*12 (1000 pieces per box) | USD 5.84 | 852246331770 |
| 4*14 (1000 pieces per box) | USD 5.84 | 852246331770 |
| 4*16 (1000 pieces per box) | USD 6.28 | 852246331770 |
| 4*18 (500 pieces per box) | USD 4.33 | 852246331770 |
| 4*20 (500 pieces per box) | USD 4.33 | 852246331770 |
| 5*8 (500 pieces per box) | USD 4.33 | 852246331770 |
| 5*10 (500 pieces per box) | USD 4.33 | 852246331770 |
| 5*12 (500 pieces per box) | USD 4.33 | 852246331770 |
| 5*14 (500 pieces per box) | USD 4.33 | 852246331770 |
| 5*16 (500 pieces per box) | USD 5.41 | 852246331770 |
| 5*18 (500 pieces per box) | USD 5.41 | 852246331770 |
| 5*20 (500 pieces per box) | USD 5.84 | 852246331770 |
| 5*25 (500 pieces per box) | USD 5.84 | 852246331770 |
| 5*30 (500 pieces per box) | USD 14.07 | 852246331770 |
