PRODUCT SPECIFICATIONS

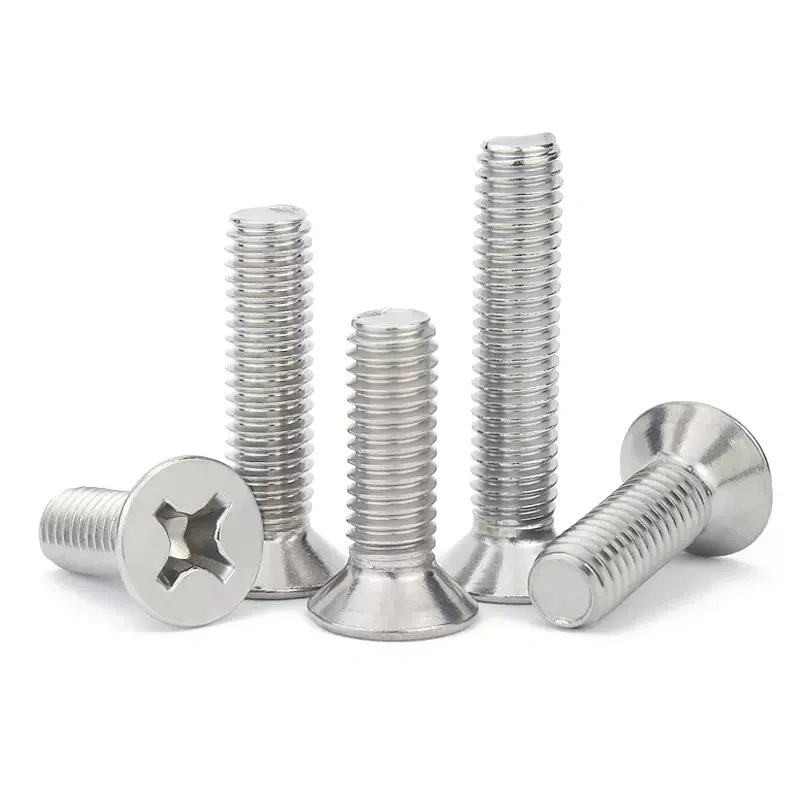

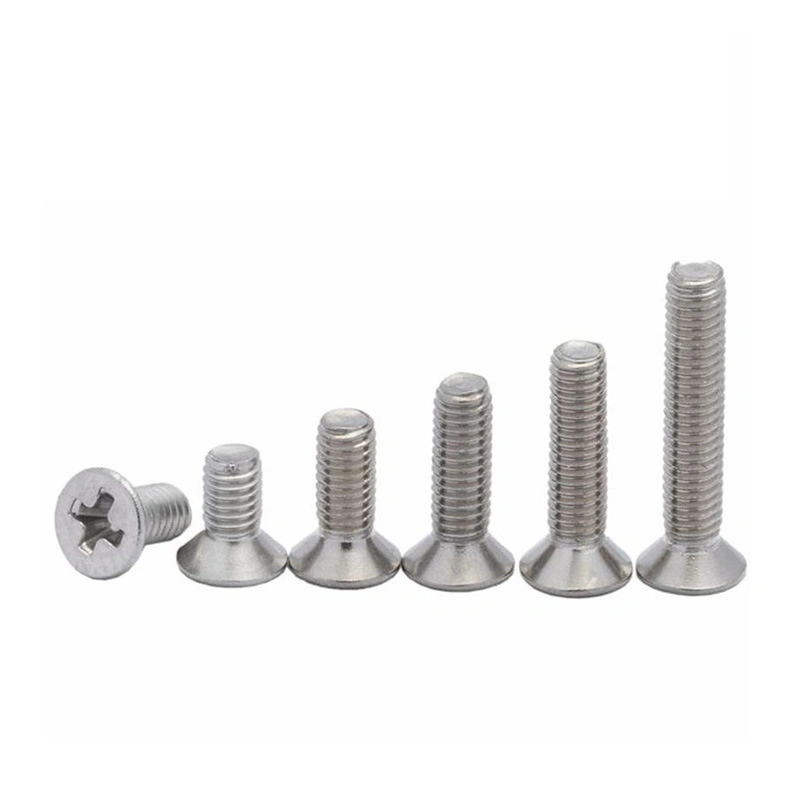

GB819 201 Stainless Steel Phillips Countersunk Machine Screws

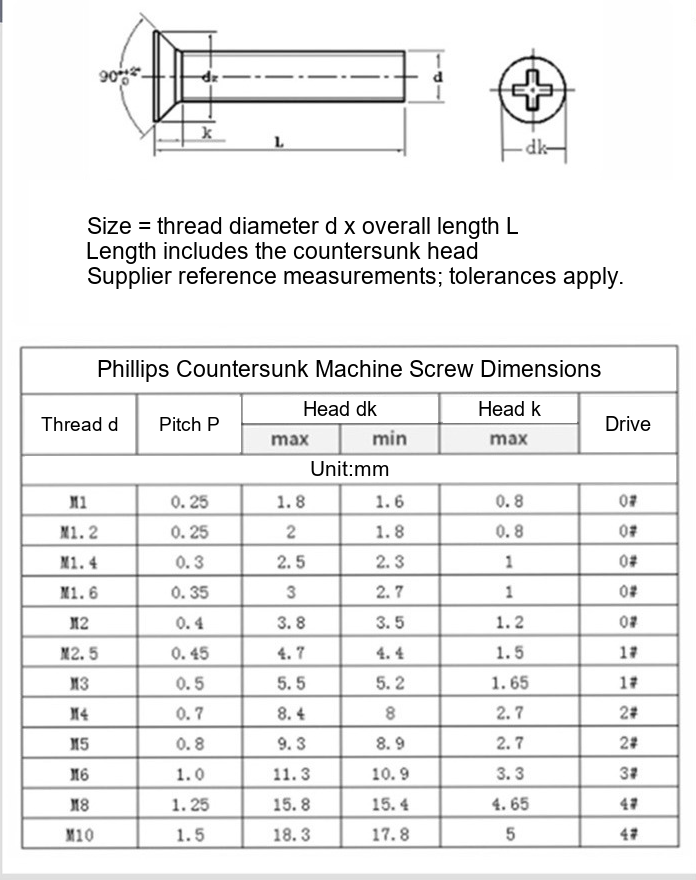

201 stainless steel Phillips countersunk flat-head machine screws identified as GB819 by the supplier. Original diameter, overall length and pack quantities are preserved, including source order. The reference drawing retains the countersunk head angle and all dimensional limits.
Price range: $12.42 through $29.41
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
201 stainless steel Phillips countersunk flat-head machine screws identified as GB819 by the supplier. Original diameter, overall length and pack quantities are preserved, including source order. The reference drawing retains the countersunk head angle and all dimensional limits.
Technical Specifications
| Property | Supplier data |
|---|---|
| Material | 201 stainless steel |
| Supplier standard | GB819 |
| Head / drive | Countersunk / Phillips |
| Length L | Overall length including head |
| Reference unit | mm |
Model: 735681255980
View all specifications (80 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| 3*4(5000 pcs) | USD 15.49 | 735681255980 |
| 3*6(5000 pcs) | USD 16.74 | 735681255980 |
| 3*8(5000 pcs) | USD 21.71 | 735681255980 |
| 3*10(5000 pcs) | USD 24.43 | 735681255980 |
| 3*12(5000 pcs) | USD 26.93 | 735681255980 |
| 3*14(5000 pcs) | USD 28.85 | 735681255980 |
| 3*16(2000 pcs) | USD 13.08 | 735681255980 |
| 3*18(2000 pcs) | USD 14.29 | 735681255980 |
| 3*20(2000 pcs) | USD 15.17 | 735681255980 |
| 3*25(2000 pcs) | USD 17.81 | 735681255980 |
| 3*30(2000 pcs) | USD 20.67 | 735681255980 |
| 3*35(2000 pcs) | USD 23.63 | 735681255980 |
| 3*40(2000 pcs) | USD 26.38 | 735681255980 |
| 4*5(5000 pcs) | USD 26.93 | 735681255980 |
| 4*6(5000 pcs) | USD 28.58 | 735681255980 |
| 4*8(2000 pcs) | USD 13.19 | 735681255980 |
| 4*10(2000 pcs) | USD 15.17 | 735681255980 |
| 4*12(2000 pcs) | USD 16.71 | 735681255980 |
| 4*14(2000 pcs) | USD 18.36 | 735681255980 |
| 4*16(2000 pcs) | USD 20.34 | 735681255980 |
| 4*18(2000 pcs) | USD 21.98 | 735681255980 |
| 4*20(2000 pcs) | USD 23.75 | 735681255980 |
| 4*22(2000 pcs) | USD 26.60 | 735681255980 |
| 4*25(1000 pcs) | USD 14.40 | 735681255980 |
| 4*30(1000 pcs) | USD 16.93 | 735681255980 |
| 4*35(1000 pcs) | USD 19.24 | 735681255980 |
| 4*40(1000 pcs) | USD 24.43 | 735681255980 |
| 4*45(1000 pcs) | USD 25.56 | 735681255980 |
| 4*50(500 pcs) | USD 13.88 | 735681255980 |
| 5*6(2000 pcs) | USD 16.71 | 735681255980 |
| 5*8(2000 pcs) | USD 18.91 | 735681255980 |
| 5*10 (2000 pcs) | USD 21.98 | 735681255980 |
| 5*12(2000 pcs) | USD 24.18 | 735681255980 |
| 5*14(2000 pcs) | USD 27.26 | 735681255980 |
| 5*16(1000 pcs) | USD 15.39 | 735681255980 |
| 5*18(1000 pcs) | USD 16.93 | 735681255980 |
| 5*20(1000 pcs) | USD 18.32 | 735681255980 |
| 5*22(1000 pcs) | USD 20.06 | 735681255980 |
| 5*25(1000 pcs) | USD 21.98 | 735681255980 |
| 5*30(1000 pcs) | USD 25.56 | 735681255980 |
| 5*35 (500 pcs) | USD 14.84 | 735681255980 |
| 5*40(500 pcs) | USD 16.76 | 735681255980 |
| 5*45(500 pcs) | USD 19.24 | 735681255980 |
| 5*50(500 pcs) | USD 21.30 | 735681255980 |
| 5*55(500 pcs) | USD 24.46 | 735681255980 |
| 5*60(500 pcs) | USD 26.66 | 735681255980 |
| 5*65(500 pcs) | USD 29.41 | 735681255980 |
| 5*70(200 pcs) | USD 12.52 | 735681255980 |
| 5*80(200 pcs) | USD 14.51 | 735681255980 |
| 6*8(1000 pcs) | USD 14.84 | 735681255980 |
| 6*10(1000 pcs) | USD 17.74 | 735681255980 |
| 6*12(1000 pcs) | USD 18.96 | 735681255980 |
| 6*14(1000 pcs) | USD 20.89 | 735681255980 |
| 6*16 (1000 pcs) | USD 23.36 | 735681255980 |
| 6*18 (1000 pcs) | USD 25.01 | 735681255980 |
| 6*20 (1000 pcs) | USD 25.01 | 735681255980 |
| 6*22 (500 pcs) | USD 25.01 | 735681255980 |
| 6*25 (500 pcs) | USD 16.49 | 735681255980 |
| 6*30 (500 pcs) | USD 19.24 | 735681255980 |
| 6*35 (500 pcs) | USD 22.75 | 735681255980 |
| 6*40 (500 pcs) | USD 26.20 | 735681255980 |
| 6*45 (500 pcs) | USD 28.03 | 735681255980 |
| 6*50 (200 pcs) | USD 12.42 | 735681255980 |
| 6*55 (200 pcs) | USD 13.96 | 735681255980 |
| 6*60 (200 pcs) | USD 15.17 | 735681255980 |
| 6*65 (200 pcs) | USD 16.49 | 735681255980 |
| 6*70 (200 pcs) | USD 17.59 | 735681255980 |
| 6*80 (200 pcs) | USD 20.34 | 735681255980 |
| 8*12 (500 pcs) | USD 23.91 | 735681255980 |
| 8*16 (500 pcs) | USD 23.91 | 735681255980 |
| 8*20 (500 pcs) | USD 28.03 | 735681255980 |
| 8*25 (200 pcs) | USD 13.07 | 735681255980 |
| 8*30 (200 pcs) | USD 15.63 | 735681255980 |
| 8*35 (200 pcs) | USD 17.37 | 735681255980 |
| 8*40 (200 pcs) | USD 19.46 | 735681255980 |
| 8*45 (200 pcs) | USD 21.98 | 735681255980 |
| 8*50 (200 pcs) | USD 23.75 | 735681255980 |
| 8*55 (200 pcs) | USD 27.79 | 735681255980 |
| 8*60 (200 pcs) | USD 28.25 | 735681255980 |
| 3*5(5000 pcs) | USD 15.99 | 735681255980 |
