GB879 Blackened Slotted Spring Pins, Hollow Cylindrical Locating Pins, M3/M5/M6/M8/M12

PRODUCT SPECIFICATIONS

GB879 Blackened Slotted Spring Pins, Hollow Cylindrical Locating Pins, M3/M5/M6/M8/M12

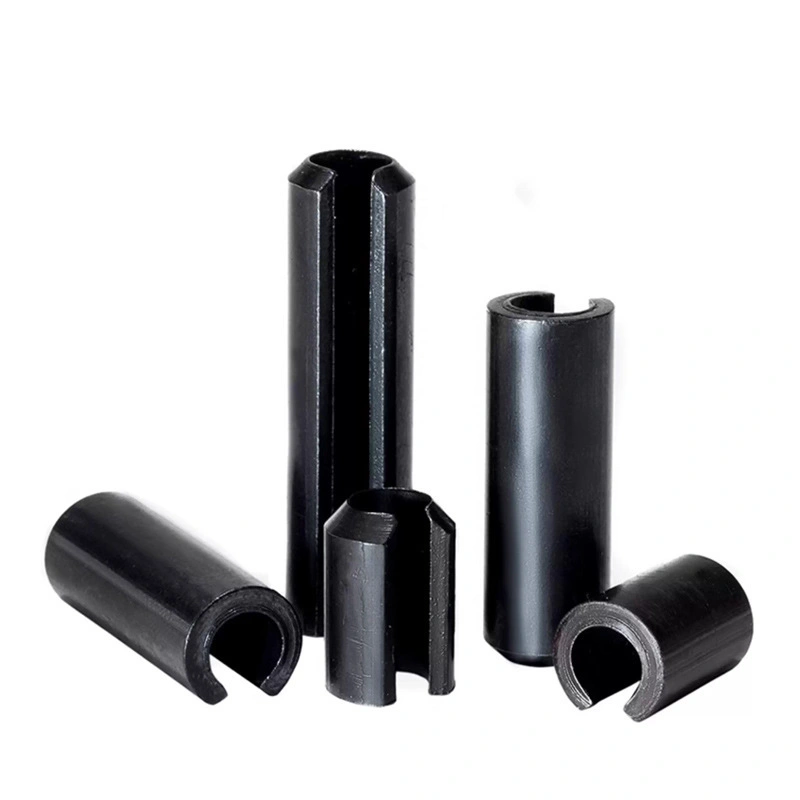

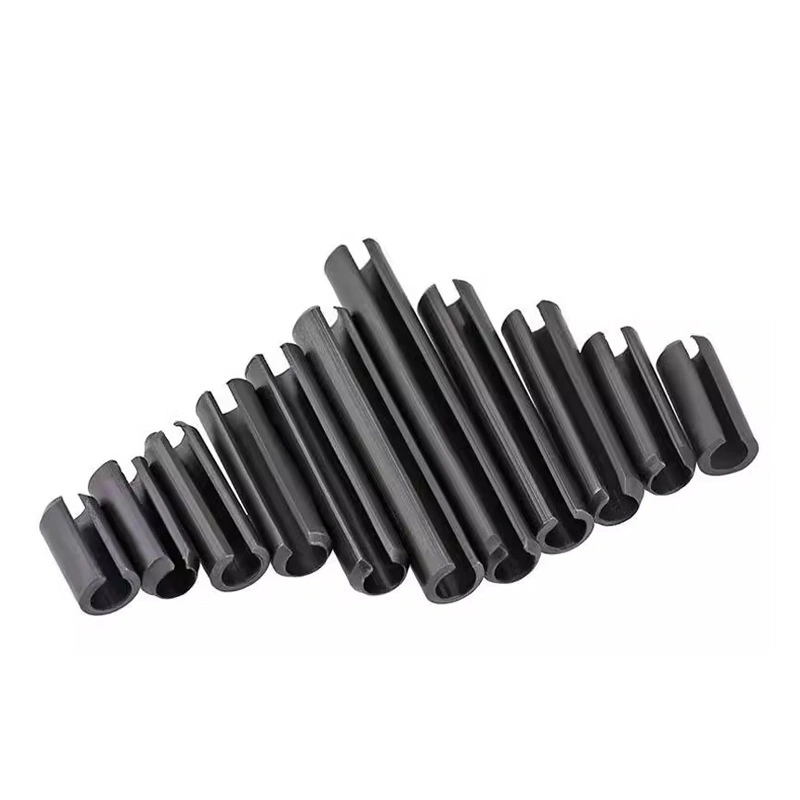

Blackened hollow slotted spring pins for positioning and retention, identified as GB879 by the supplier. Select the exact listed diameter and length. The source drawing gives the uninstalled outside diameter d and wall thickness s, with the original dimensional relationship and before-installation values retained.

Price range: $0.02 through $0.49

Reference unit price · Confirm quantity and terms by inquiry

No online payment. Only email is required to inquire.

Product details

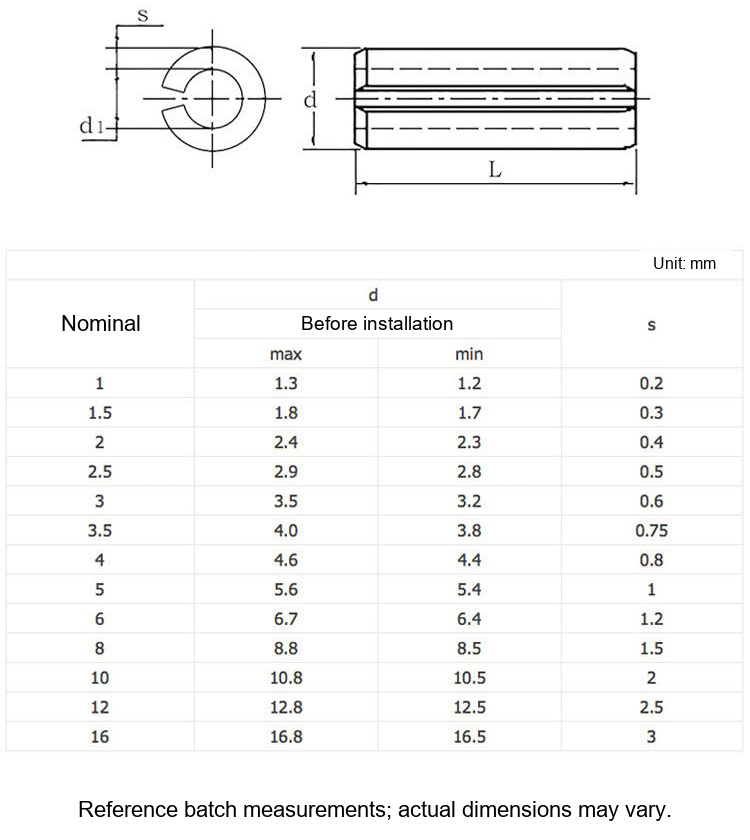

GB879 Blackened Slotted Spring Pins, Hollow Cylindrical Locating Pins, M3/M5/M6/M8/M12 - Technical Dimensions

Blackened hollow slotted spring pins for positioning and retention, identified as GB879 by the supplier. Select the exact listed diameter and length. The source drawing gives the uninstalled outside diameter d and wall thickness s, with the original dimensional relationship and before-installation values retained.

Technical Specifications

Property Supplier data
Supplier standard GB879
Type Slotted spring pin / hollow cylindrical locating pin
Finish Blackened
Reference dimensions d measured before installation; s wall thickness
Unit mm

Model: 948847653332

View all specifications (101 options)
SpecificationUnit priceItem Ref
Φ3*6USD 0.02948847653332
Φ3*8USD 0.02948847653332
Φ3*10USD 0.02948847653332
Φ3*12USD 0.02948847653332
Φ3*14USD 0.02948847653332
Φ3*16USD 0.02948847653332
Φ3*18USD 0.02948847653332
Φ3*20USD 0.03948847653332
Φ3*25USD 0.03948847653332
Φ3*30USD 0.03948847653332
Φ3*35USD 0.03948847653332
Φ3*40USD 0.03948847653332
Φ4*8USD 0.03948847653332
Φ4*10USD 0.03948847653332
Φ4*12USD 0.03948847653332
Φ4*14USD 0.03948847653332
Φ4*16USD 0.03948847653332
Φ4*18USD 0.03948847653332
Φ4*20USD 0.03948847653332
Φ4*25USD 0.04948847653332
Φ4*30USD 0.04948847653332
Φ4*35USD 0.04948847653332
Φ4*40USD 0.06948847653332
Φ4*45USD 0.06948847653332
Φ4*50USD 0.07948847653332
Φ4*55USD 0.10948847653332
Φ4*60USD 0.06948847653332
Φ5*10USD 0.04948847653332
Φ5*12USD 0.04948847653332
Φ5*14USD 0.06948847653332
Φ5*16USD 0.06948847653332
Φ5*18USD 0.06948847653332
Φ5*20USD 0.06948847653332
Φ5*25USD 0.06948847653332
Φ5*30USD 0.08948847653332
Φ5*35USD 0.08948847653332
Φ5*40USD 0.09948847653332
Φ5*45USD 0.09948847653332
Φ5*50USD 0.10948847653332
Φ5*55USD 0.10948847653332
Φ5*60USD 0.06948847653332
Φ5*70USD 0.09948847653332
Φ5*80USD 0.11948847653332
Φ6*10USD 0.06948847653332
Φ6*12USD 0.07948847653332
Φ6*14USD 0.07948847653332
Φ6*16USD 0.08948847653332
Φ6*18USD 0.08948847653332
Φ6*20USD 0.08948847653332
Φ6*25USD 0.09948847653332
Φ6*30USD 0.10948847653332
Φ6*35USD 0.10948847653332
Φ6*40USD 0.10948847653332
Φ6*45USD 0.07948847653332
Φ6*50USD 0.09948847653332
Φ6*60USD 0.10948847653332
Φ6*70USD 0.11948847653332
Φ6*80USD 0.13948847653332
Φ8*12USD 0.07948847653332
Φ8*16USD 0.07948847653332
Φ8*20USD 0.09948847653332
Φ8*25USD 0.10948847653332
Φ8*30USD 0.12948847653332
Φ8*35USD 0.12948847653332
Φ8*40USD 0.13948847653332
Φ8*45USD 0.16948847653332
Φ8*50USD 0.17948847653332
Φ8*55USD 0.20948847653332
Φ8*60USD 0.21948847653332
Φ8*70USD 0.26948847653332
Φ8*80USD 0.29948847653332
Φ8*90USD 0.31948847653332
Φ8*100USD 0.32948847653332
Φ10*20USD 0.16948847653332
Φ10*25USD 0.17948847653332
Φ10*30USD 0.18948847653332
Φ10*35USD 0.21948847653332
Φ10*40USD 0.22948847653332
Φ10*45USD 0.26948847653332
Φ10*50USD 0.26948847653332
Φ10*55USD 0.28948847653332
Φ10*60USD 0.31948847653332
Φ10*70USD 0.34948847653332
Φ10*80USD 0.35948847653332
Φ10*90USD 0.39948847653332
Φ10*100USD 0.46948847653332
Φ12*20USD 0.24948847653332
Φ12*25USD 0.24948847653332
Φ12*30USD 0.26948847653332
Φ12*35USD 0.27948847653332
Φ12*40USD 0.31948847653332
Φ12*45USD 0.34948847653332
Φ12*50USD 0.35948847653332
Φ12*55USD 0.37948847653332
Φ12*60USD 0.39948847653332
Φ12*65USD 0.42948847653332
Φ12*70USD 0.45948847653332
Φ12*75USD 0.49948847653332
Φ12*80USD 0.23948847653332
Φ12*90USD 0.24948847653332
Φ12*100USD 0.31948847653332
