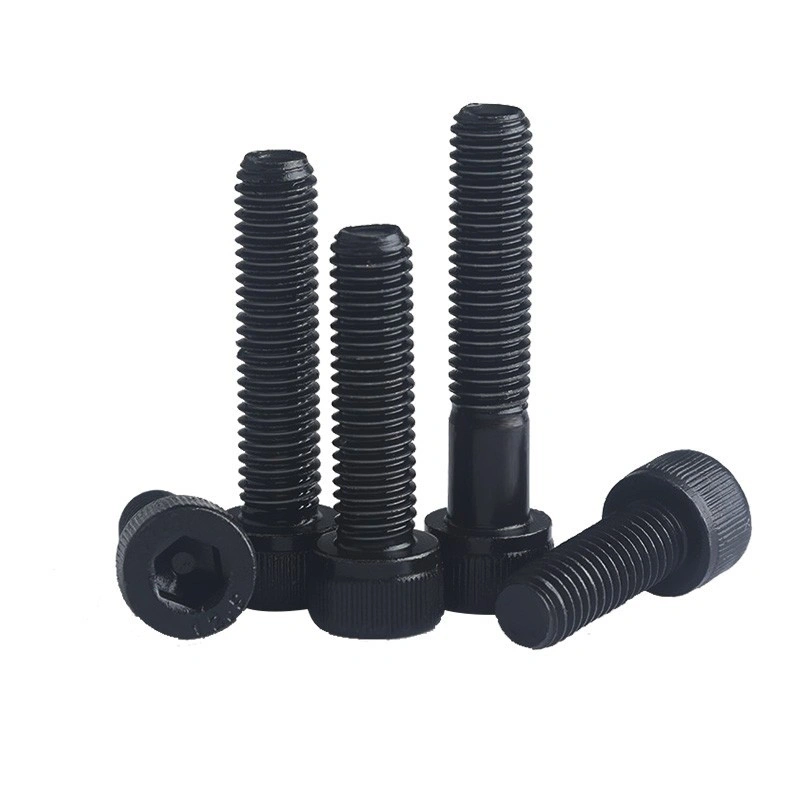

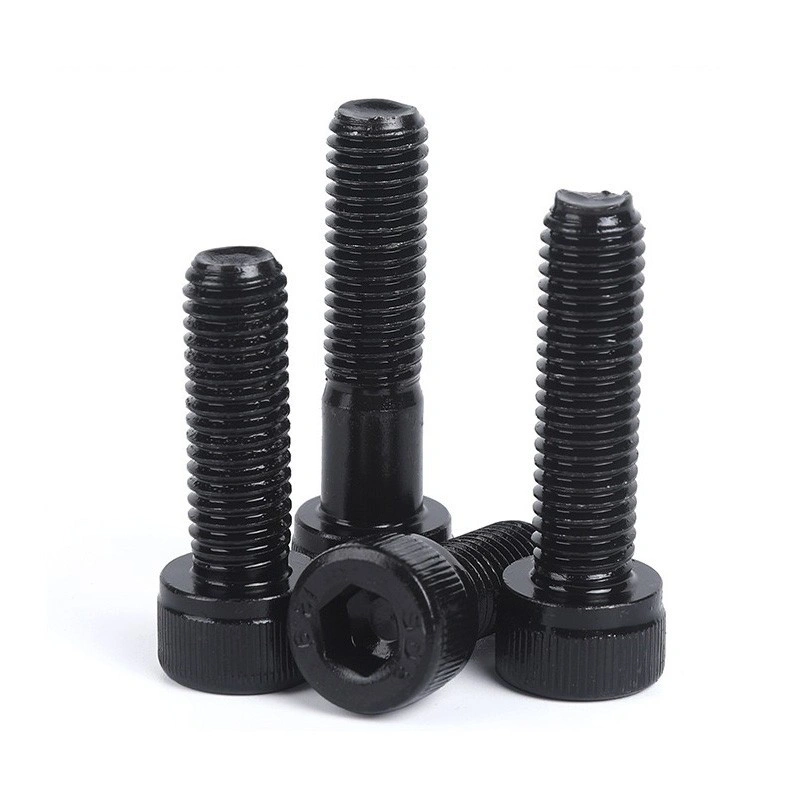

Grade 12.9 High-Strength Socket Head Cap Screws, M3/M4/M5/M6/M8
Grade 12.9 high-strength cylindrical socket head cap screws. Full-thread and partial-thread options retain the source labels and original order. The supplier reference drawing is labelled GB/T 70-1985. Its complete numerical table is reproduced below from this offer; the original diagram geometry is preserved in the English technical image.
Price range: $0.06 through $11.06
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
Grade 12.9 high-strength cylindrical socket head cap screws. Full-thread and partial-thread options retain the source labels and original order. The supplier reference drawing is labelled GB/T 70-1985. Its complete numerical table is reproduced below from this offer; the original diagram geometry is preserved in the English technical image.

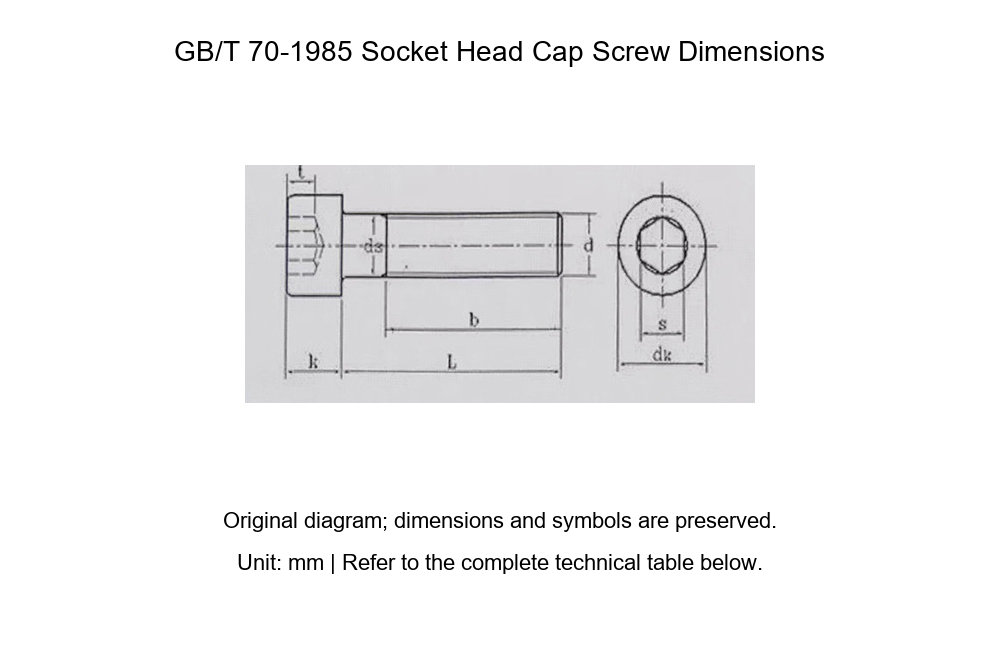

Technical Specifications
| Thread d | Pitch P (mm) | b (mm) | dk max (mm) | dk min (mm) | ds max (mm) | ds min (mm) | k max (mm) | k min (mm) | s nominal (mm) | s max (mm) | s min (mm) | t min (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M1.6 | .35 | 15 | 3.14 | 2.86 | 1.60 | 1.46 | 1.60 | 1.46 | 1.5 | 1.560 | 1.520 | .7 |
| M2 | .4 | 16 | 3.98 | 3.62 | 2.00 | 1.86 | 2.00 | 1.86 | 1.5 | 1.560 | 1.520 | 1 |
| M2.5 | .45 | 17 | 4.68 | 4.32 | 2.50 | 2.36 | 2.50 | 2.36 | 2 | 2.060 | 2.020 | 1.1 |
| M3 | .5 | 18 | 5.68 | 5.32 | 3.00 | 2.86 | 3.00 | 2.86 | 2.5 | 2.58 | 2.52 | 1.3 |
| M4 | .7 | 20 | 7.22 | 6.78 | 4.00 | 3.82 | 4.00 | 3.82 | 3 | 3.080 | 3.020 | 2 |
| M5 | .8 | 22 | 8.72 | 8.28 | 5.00 | 4.82 | 5.00 | 4.82 | 4 | 4.095 | 4.020 | 2.5 |
| M6 | 1 | 24 | 10.22 | 9.78 | 6.00 | 5.82 | 6.0 | 5.7 | 5 | 5.140 | 5.020 | 3 |
| M8 | 1.25 | 28 | 13.27 | 12.73 | 8.00 | 7.78 | 8.00 | 7.64 | 6 | 6.140 | 6.020 | 4 |
| M10 | 1.5 | 32 | 16.27 | 15.73 | 10.00 | 9.78 | 10.00 | 9.64 | 8 | 8.175 | 8.025 | 5 |
| M12 | 1.75 | 36 | 18.27 | 17.73 | 12.00 | 11.73 | 12.00 | 11.57 | 10 | 10.175 | 10.025 | 6 |
| M14 | 2 | 40 | 21.33 | 20.67 | 14.00 | 13.73 | 14.00 | 13.57 | 12 | 12.212 | 12.032 | 7 |
| M16 | 2 | 44 | 24.33 | 23.67 | 16.00 | 15.73 | 16.00 | 15.57 | 14 | 14.212 | 14.032 | 8 |
| M20 | 2.5 | 52 | 30.33 | 29.67 | 20.00 | 19.67 | 20.00 | 19.48 | 17 | 17.23 | 17.05 | 10 |
| M24 | 3 | 60 | 36.39 | 35.61 | 24.00 | 23.67 | 24.00 | 23.48 | 19 | 19.275 | 19.065 | 12 |
| M30 | 3.5 | 72 | 45.39 | 44.61 | 30.00 | 29.67 | 30.00 | 29.48 | 22 | 22.275 | 22.065 | 15.5 |
| M36 | 4 | 84 | 54.46 | 53.54 | 36.00 | 35.61 | 36.00 | 35.38 | 27 | 27.275 | 27.065 | 19 |
