Grade 4.8 GB85 Square Head Dog Point Set Screws for Tool Holders

PRODUCT SPECIFICATIONS

Grade 4.8 GB85 Square Head Dog Point Set Screws for Tool Holders

Grade 4.8 square head set screws with cylindrical projecting ends, identified as GB85 in the supplier title. Original diameter and length options are retained. The supplied generic square-head drawing and tables preserve head dimensions, pitch and reference mass; no missing dog-point length is invented.

Price range: $0.19 through $1.56

Reference unit price · Confirm quantity and terms by inquiry

No online payment. Only email is required to inquire.

Product details

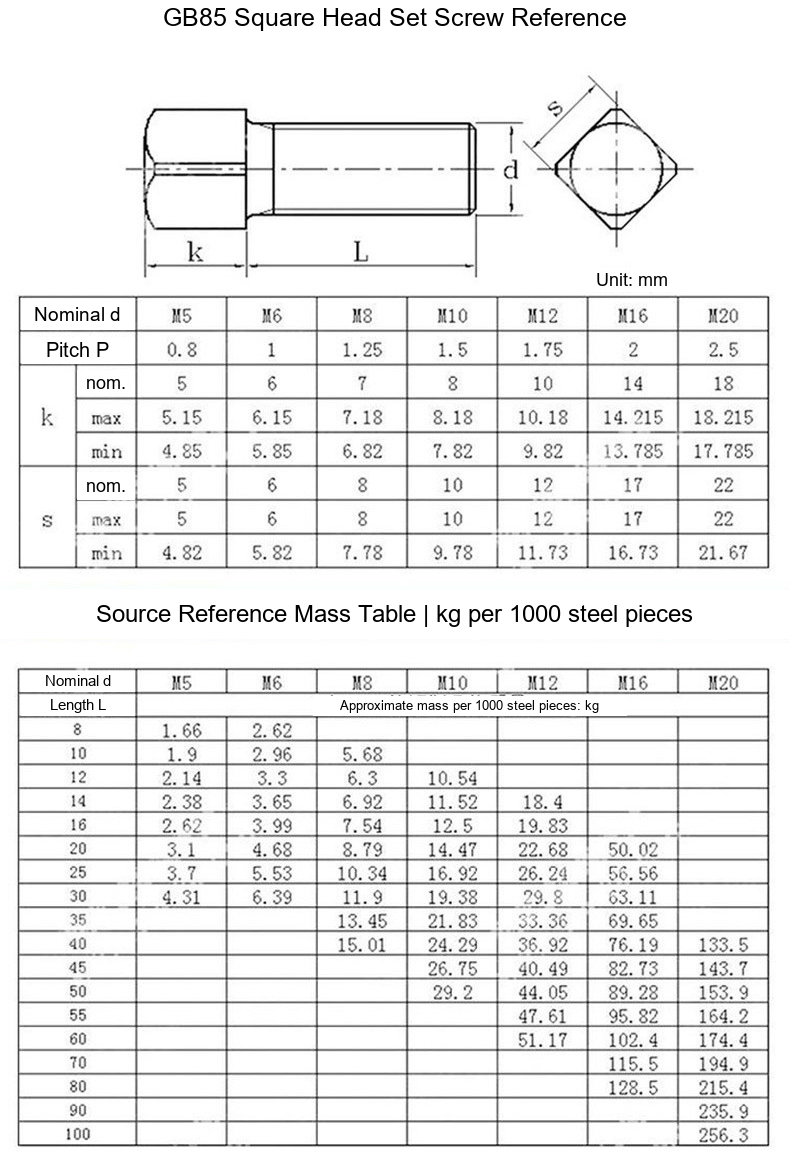

Grade 4.8 GB85 Square Head Dog Point Set Screws for Tool Holders - Technical Dimensions

Grade 4.8 square head set screws with cylindrical projecting ends, identified as GB85 in the supplier title. Original diameter and length options are retained. The supplied generic square-head drawing and tables preserve head dimensions, pitch and reference mass; no missing dog-point length is invented.

Technical Specifications

Property Supplier data
Supplier grade 4.8
Supplier standard GB85
Head Square
Point Cylindrical projecting / dog point
Application wording Tool holder screw
Reference units mm; kg/1000 steel pieces

Model: 568939255946

View all specifications (34 options)
SpecificationUnit priceItem Ref
8*20USD 0.19568939255946
8*25USD 0.23568939255946
8*30USD 0.42568939255946
8*35USD 0.48568939255946
8*40USD 0.23568939255946
10*20USD 0.24568939255946
10*25USD 0.30568939255946
10*30USD 0.36568939255946
10*35USD 0.42568939255946
10*40USD 0.48568939255946
10*45USD 0.23568939255946
10*50USD 0.26568939255946
12*30USD 0.34568939255946
12*35USD 0.36568939255946
12*40USD 0.42568939255946
12*45USD 0.47568939255946
12*50USD 0.52568939255946
16*50USD 0.57568939255946
16*60USD 0.62568939255946
16*70USD 0.68568939255946
16*80USD 0.73568939255946
16*90USD 0.78568939255946
16*100USD 0.83568939255946
20*30USD 1.04568939255946
20*35USD 1.09568939255946
20*40USD 1.14568939255946
20*45USD 1.19568939255946
20*50USD 1.25568939255946
20*55USD 1.30568939255946
20*60USD 1.35568939255946
20*65USD 1.40568939255946
20*70USD 1.45568939255946
20*80USD 1.51568939255946
20*90USD 1.56568939255946
