PRODUCT SPECIFICATIONS

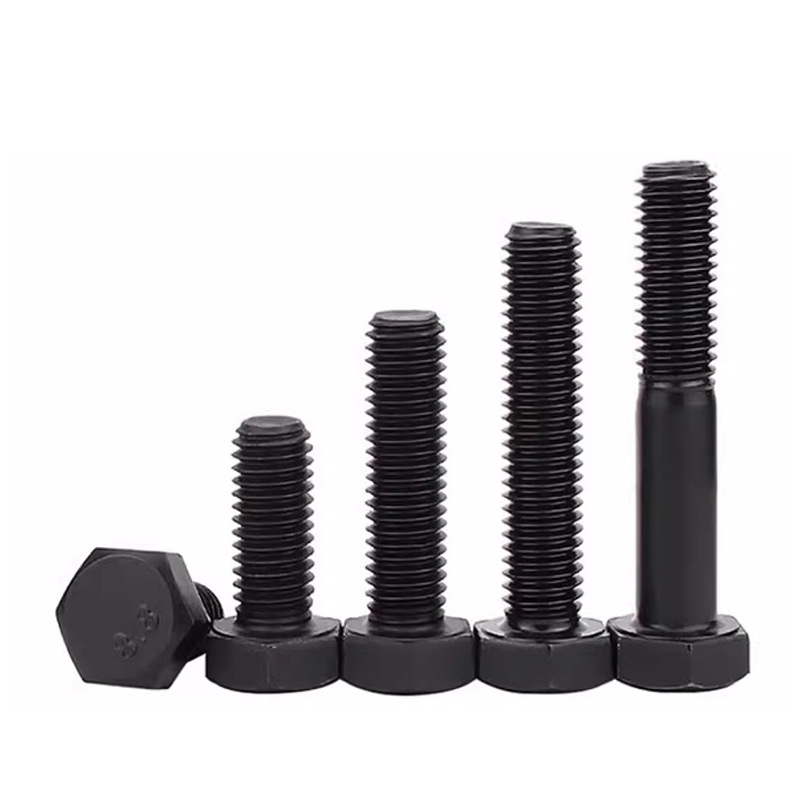

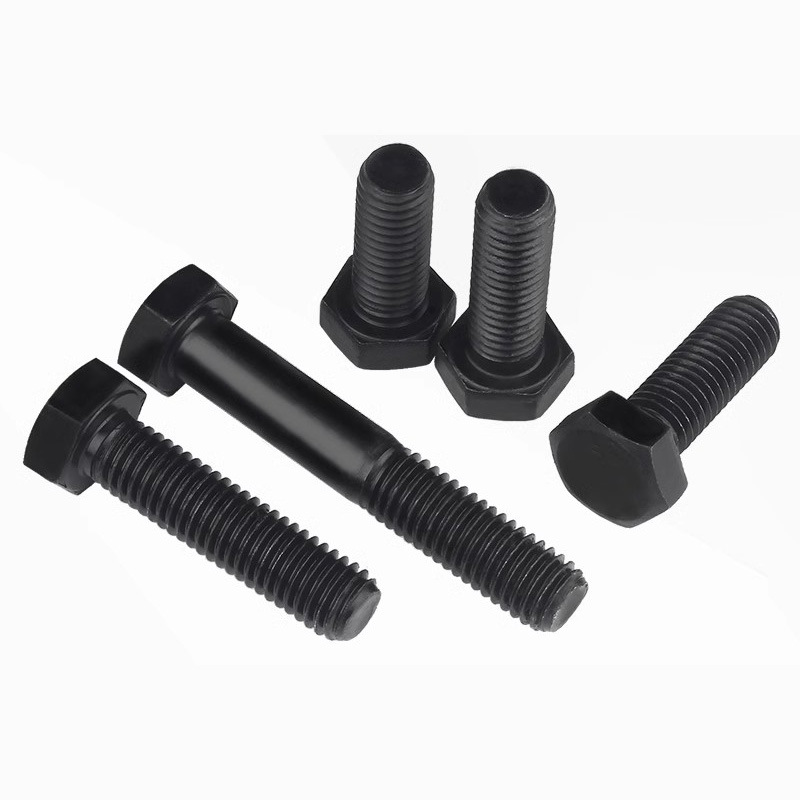

Grade 8.8 Blackened Hex Head Bolts, Extended Lengths and Left-Hand Options, M6/M8/M10/M12/M36
Grade 8.8 high-strength carbon steel hex head bolts with a blackened finish. The supplier identifies GB5782 for partial-thread options and GB5783 for full-thread options. Extended lengths and specifically labelled left-hand-thread options are listed separately; do not assume every option is left-hand threaded. Select the exact listed size and thread type. Dimensions below reproduce the supplier's table.
Price range: $0.06 through $8.33
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
Grade 8.8 high-strength carbon steel hex head bolts with a blackened finish. The supplier identifies GB5782 for partial-thread options and GB5783 for full-thread options. Extended lengths and specifically labelled left-hand-thread options are listed separately; do not assume every option is left-hand threaded. Select the exact listed size and thread type. Dimensions below reproduce the supplier's table.

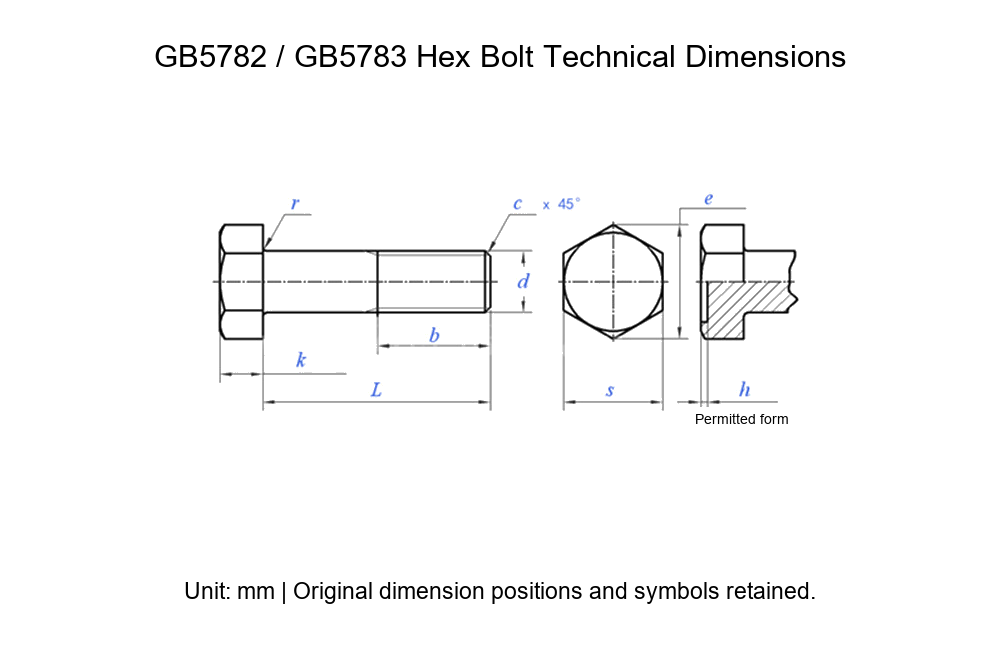

Technical Specifications
| Thread | Pitch (mm) | b: L<=125 (mm) | b: 125<L<=200 (mm) | b: L>200 (mm) | Across corners e (mm) | Head height k (mm) | Across flats s (mm) |
|---|---|---|---|---|---|---|---|
| M3 | .5 | 12 | - | - | 6.07 | 2 | 5.5 |
| M4 | .7 | 14 | - | - | 7.66 | 2.8 | 7 |
| M5 | .8 | 16 | - | - | 8.79 | 3.5 | 8 |
| M6 | 1 | 18 | - | - | 11.05 | 4 | 10 |
| M8 | 1.25 | 22 | 28 | - | 14.38 | 5.3 | 13 |
| M10 | 1.5 | 26 | 32 | - | 17.77 | 6.4 | 16 |
| M12 | 1.75 | 30 | 36 | - | 20.03 | 7.5 | 18 |
| M14 | 2 | 34 | 40 | 53 | 23.35 | 8.8 | 21 |
| M16 | 2 | 38 | 44 | 57 | 26.75 | 10 | 24 |
| M18 | 2.5 | 42 | 48 | 61 | 30.14 | 11.5 | 27 |
| M20 | 2.5 | 46 | 52 | 65 | 33.53 | 12.5 | 30 |
| M22 | 2.5 | 50 | 56 | 69 | 37.72 | 14 | 34 |
| M24 | 3 | 54 | 60 | 73 | 39.98 | 15 | 36 |
| M27 | 3 | 60 | 66 | 79 | 45.2 | 17 | 41 |
| M30 | 3.5 | 66 | 72 | 85 | 50.85 | 18.7 | 46 |
| M33 | 3.5 | 72 | 78 | 91 | 55.37 | 21 | 50 |
| M36 | 4 | 78 | 84 | 97 | 60.79 | 22.5 | 55 |
| M39 | 4 | 84 | 90 | 103 | 66.44 | 25 | 60 |
| M42 | 4.5 | 90 | 96 | 109 | 72.02 | 26 | 65 |
| M45 | 4.5 | - | 102 | 115 | 76.95 | 28 | 70 |
| M48 | 5 | - | 108 | 121 | 82.6 | 30 | 75 |
| M52 | 5 | - | 116 | 129 | 88.25 | 33 | 80 |
| M56 | 5.5 | - | 124 | 137 | 93.56 | 35 | 85 |
| M60 | 5.5 | - | 132 | 145 | 99.21 | 38 | 90 |
| M64 | 6 | - | 140 | 153 | 104.86 | 40 | 95 |
Model: 671114546867
View all specifications (395 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| M4*8 full thread | USD 0.06 | 671114546867 |
| M4*16 full thread | USD 0.06 | 671114546867 |
| M4*20 full thread | USD 0.07 | 671114546867 |
| M4*30 full thread | USD 0.08 | 671114546867 |
| M4*45 partial thread | USD 0.06 | 671114546867 |
| M5*8 full thread | USD 0.06 | 671114546867 |
| M5*10 full thread | USD 0.06 | 671114546867 |
| M5*12 full thread | USD 0.06 | 671114546867 |
| M5*16 full thread | USD 0.06 | 671114546867 |
| M5*20 full thread | USD 0.07 | 671114546867 |
| M5*25 full thread | USD 0.08 | 671114546867 |
| M5*30 full thread | USD 0.08 | 671114546867 |
| M5*35 full thread | USD 0.09 | 671114546867 |
| M5*40 full thread | USD 0.09 | 671114546867 |
| M5*45 full thread | USD 0.10 | 671114546867 |
| M5*50 full thread | USD 0.06 | 671114546867 |
| M6*8 full thread | USD 0.06 | 671114546867 |
| M6*10 full thread | USD 0.06 | 671114546867 |
| M6*12 full thread | USD 0.06 | 671114546867 |
| M6*14 full thread | USD 0.06 | 671114546867 |
| M6*16 full thread | USD 0.07 | 671114546867 |
| M6*18 full thread | USD 0.07 | 671114546867 |
| M6*20 full thread | USD 0.07 | 671114546867 |
| M6*20 left-hand thread | USD 0.12 | 671114546867 |
| M6*25 full thread | USD 0.08 | 671114546867 |
| M6*30 full thread | USD 0.09 | 671114546867 |
| M6*35 full thread | USD 0.09 | 671114546867 |
| M6*40 full thread | USD 0.10 | 671114546867 |
| M6*45 full thread | USD 0.06 | 671114546867 |
| M6*50 full thread | USD 0.06 | 671114546867 |
| M6*55 full thread | USD 0.07 | 671114546867 |
| M6*60 partial thread | USD 0.08 | 671114546867 |
| M6*70 partial thread | USD 0.09 | 671114546867 |
| M6*80 partial thread | USD 0.10 | 671114546867 |
| M6*90 partial thread | USD 0.11 | 671114546867 |
| M6*100 partial thread | USD 0.12 | 671114546867 |
| M8*10 full thread | USD 0.10 | 671114546867 |
| M8*12 full thread | USD 0.10 | 671114546867 |
| M8*14 full thread | USD 0.10 | 671114546867 |
| M8*16 full thread | USD 0.06 | 671114546867 |
| M8*18 full thread | USD 0.06 | 671114546867 |
| M8*20 full thread | USD 0.06 | 671114546867 |
| M8*25 full thread | USD 0.07 | 671114546867 |
| M8*30 full thread | USD 0.07 | 671114546867 |
| M8*35 full thread | USD 0.08 | 671114546867 |
| M8*40 full thread | USD 0.09 | 671114546867 |
| M8*45 full thread | USD 0.10 | 671114546867 |
| M8*50 full thread | USD 0.11 | 671114546867 |
| M8*50 left-hand thread | USD 0.34 | 671114546867 |
| M8*55 full thread | USD 0.12 | 671114546867 |
| M8*60 partial thread | USD 0.14 | 671114546867 |
| M8*65 partial thread | USD 0.15 | 671114546867 |
| M8*70 partial thread | USD 0.15 | 671114546867 |
| M8*75 partial thread | USD 0.17 | 671114546867 |
| M8*80 partial thread | USD 0.18 | 671114546867 |
| M8*80 left-hand thread | USD 0.23 | 671114546867 |
| M8*85 partial thread | USD 0.19 | 671114546867 |
| M8*90 partial thread | USD 0.19 | 671114546867 |
| M8*100 partial thread | USD 0.21 | 671114546867 |
| M8*110 partial thread | USD 0.23 | 671114546867 |
| M8*120 partial thread | USD 0.24 | 671114546867 |
| M8*130 partial thread | USD 0.26 | 671114546867 |
| M8*140 partial thread | USD 0.28 | 671114546867 |
| M8*150 partial thread | USD 0.30 | 671114546867 |
| M10*16 full thread | USD 0.09 | 671114546867 |
| M10*20 full thread | USD 0.09 | 671114546867 |
| M10*25 full thread | USD 0.11 | 671114546867 |
| M10*30 full thread | USD 0.12 | 671114546867 |
| M10*35 full thread | USD 0.13 | 671114546867 |
| M10*40 full thread | USD 0.14 | 671114546867 |
| M10*45 full thread | USD 0.15 | 671114546867 |
| M10*50 full thread | USD 0.18 | 671114546867 |
| M10*50 left-hand thread | USD 0.23 | 671114546867 |
| M10*55 full thread | USD 0.19 | 671114546867 |
| M10*60 partial thread | USD 0.20 | 671114546867 |
| M10*65 partial thread | USD 0.22 | 671114546867 |
| M10*70 partial thread | USD 0.24 | 671114546867 |
| M10*75 partial thread | USD 0.26 | 671114546867 |
| M10*80 partial thread | USD 0.27 | 671114546867 |
| M10*85 partial thread | USD 0.29 | 671114546867 |
| M10*90 partial thread | USD 0.30 | 671114546867 |
| M10*100 partial thread | USD 0.33 | 671114546867 |
| M10*110 partial thread | USD 0.36 | 671114546867 |
| M10*120 partial thread | USD 0.39 | 671114546867 |
| M10*130 partial thread | USD 0.42 | 671114546867 |
| M10*140 partial thread | USD 0.45 | 671114546867 |
| M10*150 partial thread | USD 0.47 | 671114546867 |
| M10*160 partial thread | USD 0.50 | 671114546867 |
| M10*170 partial thread | USD 0.24 | 671114546867 |
| M10*180 partial thread | USD 0.26 | 671114546867 |
| M10*190 partial thread | USD 0.28 | 671114546867 |
| M10*200 partial thread | USD 0.30 | 671114546867 |
| M12*20 full thread | USD 0.16 | 671114546867 |
| M12*25 full thread | USD 0.18 | 671114546867 |
| M12*30 full thread | USD 0.19 | 671114546867 |
| M12*35 full thread | USD 0.21 | 671114546867 |
| M12*40 full thread | USD 0.22 | 671114546867 |
| M12*45 full thread | USD 0.24 | 671114546867 |
| M12*50 full thread | USD 0.26 | 671114546867 |
| M12*50 left-hand thread | USD 0.34 | 671114546867 |
| M12*55 full thread | USD 0.28 | 671114546867 |
| M12*60 partial thread | USD 0.31 | 671114546867 |
| M12*65 partial thread | USD 0.34 | 671114546867 |
| M12*70 partial thread | USD 0.36 | 671114546867 |
| M12*75 partial thread | USD 0.39 | 671114546867 |
| M12*80 partial thread | USD 0.41 | 671114546867 |
| M12*85 partial thread | USD 0.43 | 671114546867 |
| M12*90 partial thread | USD 0.45 | 671114546867 |
| M12*95 partial thread | USD 0.47 | 671114546867 |
| M12*100 partial thread | USD 0.49 | 671114546867 |
| M12*110 partial thread | USD 0.23 | 671114546867 |
| M12*120 partial thread | USD 0.25 | 671114546867 |
| M12*130 partial thread | USD 0.26 | 671114546867 |
| M12*140 partial thread | USD 0.28 | 671114546867 |
| M12*150 partial thread | USD 0.30 | 671114546867 |
| M12*160 partial thread | USD 0.32 | 671114546867 |
| M12*170 partial thread | USD 0.34 | 671114546867 |
| M12*180 partial thread | USD 0.36 | 671114546867 |
| M12*190 partial thread | USD 0.38 | 671114546867 |
| M12*200 partial thread | USD 0.40 | 671114546867 |
| M14*25 full thread | USD 0.24 | 671114546867 |
| M14*30 full thread | USD 0.26 | 671114546867 |
| M14*35 full thread | USD 0.28 | 671114546867 |
| M14*40 full thread | USD 0.30 | 671114546867 |
| M14*45 full thread | USD 0.32 | 671114546867 |
| M14*50 full thread | USD 0.35 | 671114546867 |
| M14*50 left-hand thread | USD 0.46 | 671114546867 |
| M14*55 full thread | USD 0.37 | 671114546867 |
| M14*60 partial thread | USD 0.40 | 671114546867 |
| M14*65 partial thread | USD 0.43 | 671114546867 |
| M14*70 partial thread | USD 0.46 | 671114546867 |
| M14*75 partial thread | USD 0.49 | 671114546867 |
| M14*80 partial thread | USD 0.22 | 671114546867 |
| M14*85 partial thread | USD 0.24 | 671114546867 |
| M14*90 partial thread | USD 0.25 | 671114546867 |
| M14*95 partial thread | USD 0.26 | 671114546867 |
| M14*100 partial thread | USD 0.27 | 671114546867 |
| M14*110 partial thread | USD 0.30 | 671114546867 |
| M14*120 partial thread | USD 0.32 | 671114546867 |
| M14*130 partial thread | USD 0.35 | 671114546867 |
| M14*140 partial thread | USD 0.37 | 671114546867 |
| M14*150 partial thread | USD 0.40 | 671114546867 |
| M14*160 partial thread | USD 0.42 | 671114546867 |
| M14*170 partial thread | USD 0.45 | 671114546867 |
| M14*180 partial thread | USD 0.47 | 671114546867 |
| M14*190 partial thread | USD 0.50 | 671114546867 |
| M14*200 partial thread | USD 0.52 | 671114546867 |
| M16*25 full thread | USD 0.34 | 671114546867 |
| M16*30 full thread | USD 0.36 | 671114546867 |
| M16*35 full thread | USD 0.39 | 671114546867 |
| M16*40 full thread | USD 0.41 | 671114546867 |
| M16*45 full thread | USD 0.44 | 671114546867 |
| M16*50 full thread | USD 0.47 | 671114546867 |
| M16*50 left-hand thread | USD 0.61 | 671114546867 |
| M16*55 full thread | USD 0.22 | 671114546867 |
| M16*60 partial thread | USD 0.23 | 671114546867 |
| M16*65 partial thread | USD 0.25 | 671114546867 |
| M16*70 partial thread | USD 0.26 | 671114546867 |
| M16*75 partial thread | USD 0.29 | 671114546867 |
| M16*80 partial thread | USD 0.30 | 671114546867 |
| M16*85 partial thread | USD 0.32 | 671114546867 |
| M16*90 left-hand thread | USD 0.96 | 671114546867 |
| M16*90 partial thread | USD 0.34 | 671114546867 |
| M16*100 partial thread | USD 0.38 | 671114546867 |
| M16*110 partial thread | USD 0.41 | 671114546867 |
| M16*120 partial thread | USD 0.44 | 671114546867 |
| M16*130 partial thread | USD 0.48 | 671114546867 |
| M16*140 partial thread | USD 0.51 | 671114546867 |
| M16*150 partial thread | USD 0.54 | 671114546867 |
| M16*160 partial thread | USD 0.57 | 671114546867 |
| M16*170 partial thread | USD 0.61 | 671114546867 |
| M16*180 partial thread | USD 0.65 | 671114546867 |
| M16*190 partial thread | USD 0.67 | 671114546867 |
| M16*200 partial thread | USD 0.71 | 671114546867 |
| M16*210 partial thread | USD 0.74 | 671114546867 |
| M16*220 partial thread | USD 0.78 | 671114546867 |
| M16*230 partial thread | USD 0.84 | 671114546867 |
| M16*240 partial thread | USD 0.87 | 671114546867 |
| M16*250 partial thread | USD 0.91 | 671114546867 |
| M16*260 partial thread | USD 0.93 | 671114546867 |
| M16*270 partial thread | USD 0.97 | 671114546867 |
| M16*280 partial thread | USD 1.00 | 671114546867 |
| M16*290 partial thread | USD 1.04 | 671114546867 |
| M16*300 partial thread | USD 1.04 | 671114546867 |
| M18*40 full thread | USD 0.24 | 671114546867 |
| M18*45 full thread | USD 0.26 | 671114546867 |
| M18*50 full thread | USD 0.27 | 671114546867 |
| M18*50 left-hand thread | USD 0.81 | 671114546867 |
| M18*55 full thread | USD 0.29 | 671114546867 |
| M18*60 full thread | USD 0.30 | 671114546867 |
| M18*65 full thread | USD 0.32 | 671114546867 |
| M18*70 left-hand thread | USD 1.01 | 671114546867 |
| M18*70 partial thread | USD 0.34 | 671114546867 |
| M18*75 partial thread | USD 0.36 | 671114546867 |
| M18*80 partial thread | USD 0.38 | 671114546867 |
| M18*85 partial thread | USD 0.40 | 671114546867 |
| M18*90 left-hand thread | USD 1.23 | 671114546867 |
| M18*90 partial thread | USD 0.42 | 671114546867 |
| M18*95 partial thread | USD 0.44 | 671114546867 |
| M18*100 partial thread | USD 0.47 | 671114546867 |
| M18*110 partial thread | USD 0.50 | 671114546867 |
| M18*120 partial thread | USD 0.54 | 671114546867 |
| M18*130 partial thread | USD 0.58 | 671114546867 |
| M18*140 partial thread | USD 0.63 | 671114546867 |
| M18*150 partial thread | USD 0.67 | 671114546867 |
| M18*160 partial thread | USD 0.71 | 671114546867 |
| M18*170 partial thread | USD 0.76 | 671114546867 |
| M18*180 partial thread | USD 0.80 | 671114546867 |
| M18*200 partial thread | USD 0.89 | 671114546867 |
| M18*190 partial thread | USD 0.84 | 671114546867 |
| M18*210 partial thread | USD 0.93 | 671114546867 |
| M18*220 partial thread | USD 0.97 | 671114546867 |
| M18*230 partial thread | USD 1.02 | 671114546867 |
| M18*240 partial thread | USD 1.06 | 671114546867 |
| M18*250 partial thread | USD 1.10 | 671114546867 |
| M18*260 partial thread | USD 1.17 | 671114546867 |
| M18*270 partial thread | USD 1.21 | 671114546867 |
| M18*280 partial thread | USD 1.26 | 671114546867 |
| Ｍ18*300 partial thread | USD 1.41 | 671114546867 |
| M20*40 full thread | USD 0.30 | 671114546867 |
| M20*45 full thread | USD 0.32 | 671114546867 |
| M20*50 left-hand thread | USD 1.01 | 671114546867 |
| M20*50 full thread | USD 0.34 | 671114546867 |
| M20*55 full thread | USD 0.36 | 671114546867 |
| M20*60 full thread | USD 0.39 | 671114546867 |
| M20*65 full thread | USD 0.41 | 671114546867 |
| M20*70 partial thread | USD 0.44 | 671114546867 |
| M20*75 partial thread | USD 0.47 | 671114546867 |
| M20*80 partial thread | USD 0.49 | 671114546867 |
| M20*85 partial thread | USD 0.50 | 671114546867 |
| M20*90 left-hand thread | USD 1.57 | 671114546867 |
| M20*90 partial thread | USD 0.53 | 671114546867 |
| M20*100 partial thread | USD 0.57 | 671114546867 |
| M20*110 partial thread | USD 0.63 | 671114546867 |
| M20*120 partial thread | USD 0.66 | 671114546867 |
| M20*130 partial thread | USD 0.71 | 671114546867 |
| M20*140 partial thread | USD 0.75 | 671114546867 |
| M20*150 partial thread | USD 0.80 | 671114546867 |
| M20*160 partial thread | USD 0.87 | 671114546867 |
| M20*170 partial thread | USD 0.91 | 671114546867 |
| M20*180 partial thread | USD 0.97 | 671114546867 |
| M20*190 partial thread | USD 1.02 | 671114546867 |
| M20*200 partial thread | USD 1.06 | 671114546867 |
| M20*210 partial thread | USD 1.10 | 671114546867 |
| M20*220 partial thread | USD 1.17 | 671114546867 |
| M20*230 partial thread | USD 1.21 | 671114546867 |
| M20*240 partial thread | USD 1.28 | 671114546867 |
| M20*250 partial thread | USD 1.34 | 671114546867 |
| M20*260 partial thread | USD 1.43 | 671114546867 |
| M20*270 partial thread | USD 1.49 | 671114546867 |
| M20*280 partial thread | USD 1.54 | 671114546867 |
| M20*300 partial thread | USD 1.65 | 671114546867 |
| M22*50 full thread | USD 0.55 | 671114546867 |
| M22*55 full thread | USD 0.58 | 671114546867 |
| M22*60 full thread | USD 0.60 | 671114546867 |
| M22*65 full thread | USD 0.63 | 671114546867 |
| M22*70 full thread/ partial thread (source note) | USD 0.66 | 671114546867 |
| M22*75 full thread/ partial thread (source note) | USD 0.70 | 671114546867 |
| M22*80 full thread/ partial thread (source note) | USD 0.73 | 671114546867 |
| M22*85 full thread/ partial thread (source note) | USD 0.76 | 671114546867 |
| M22*90 full thread/ partial thread (source note) | USD 0.79 | 671114546867 |
| M22*100 full thread/ partial thread (source note) | USD 0.88 | 671114546867 |
| M22*110 full thread/ partial thread (source note) | USD 0.94 | 671114546867 |
| M22*120 full thread/ partial thread (source note) | USD 1.02 | 671114546867 |
| M22*130 full thread/ partial thread (source note) | USD 1.10 | 671114546867 |
| M22*140 full thread/ partial thread (source note) | USD 1.16 | 671114546867 |
| M22*150 full thread/ partial thread (source note) | USD 1.23 | 671114546867 |
| M22*160 partial thread | USD 1.30 | 671114546867 |
| M22*170 partial thread | USD 1.37 | 671114546867 |
| M22*180 partial thread | USD 1.44 | 671114546867 |
| M22*190 partial thread | USD 1.52 | 671114546867 |
| M22*200 partial thread | USD 1.58 | 671114546867 |
| M22*210 partial thread | USD 2.10 | 671114546867 |
| M22*220 partial thread | USD 1.73 | 671114546867 |
| M22*230 partial thread | USD 1.80 | 671114546867 |
| M22*240 partial thread | USD 1.88 | 671114546867 |
| M22*250 partial thread | USD 1.95 | 671114546867 |
| M22*260 partial thread | USD 2.12 | 671114546867 |
| M22*270 partial thread | USD 2.19 | 671114546867 |
| M22*280 partial thread | USD 2.27 | 671114546867 |
| M22*300 partial thread | USD 2.40 | 671114546867 |
| M24*50 full thread | USD 0.69 | 671114546867 |
| M24*55 full thread | USD 0.72 | 671114546867 |
| M24*60 full thread | USD 0.74 | 671114546867 |
| M24*65 full thread | USD 0.78 | 671114546867 |
| M24*70 full thread | USD 0.81 | 671114546867 |
| M24*75 full thread | USD 0.87 | 671114546867 |
| M24*80 partial thread | USD 0.88 | 671114546867 |
| M24*85 partial thread | USD 0.92 | 671114546867 |
| M24*90 partial thread | USD 0.95 | 671114546867 |
| M24*100 partial thread | USD 1.02 | 671114546867 |
| M24*110 partial thread | USD 1.12 | 671114546867 |
| M24*120 partial thread | USD 1.19 | 671114546867 |
| M24*130 partial thread | USD 1.27 | 671114546867 |
| M24*140 partial thread | USD 1.36 | 671114546867 |
| M24*150 partial thread | USD 1.45 | 671114546867 |
| M24*160 partial thread | USD 1.53 | 671114546867 |
| M24*170 partial thread | USD 1.62 | 671114546867 |
| M24*180 partial thread | USD 1.71 | 671114546867 |
| M24*190 partial thread | USD 1.84 | 671114546867 |
| M24*200 partial thread | USD 1.91 | 671114546867 |
| M24*210 partial thread | USD 1.99 | 671114546867 |
| M24*220 partial thread | USD 2.15 | 671114546867 |
| M24*230 partial thread | USD 2.19 | 671114546867 |
| M24*240 partial thread | USD 2.34 | 671114546867 |
| M24*250 partial thread | USD 2.40 | 671114546867 |
| M24*260 partial thread | USD 2.49 | 671114546867 |
| M24*270 partial thread | USD 2.58 | 671114546867 |
| M24*280 partial thread | USD 2.66 | 671114546867 |
| M24*300 partial thread | USD 2.84 | 671114546867 |
| M27*60 full thread | USD 1.11 | 671114546867 |
| M27*70 full thread | USD 1.21 | 671114546867 |
| M27*80 full thread | USD 1.32 | 671114546867 |
| M27*90 partial thread | USD 1.42 | 671114546867 |
| M27*100 partial thread | USD 1.54 | 671114546867 |
| M27*110 partial thread | USD 1.64 | 671114546867 |
| M27*120 partial thread | USD 1.74 | 671114546867 |
| M27*130 partial thread | USD 1.84 | 671114546867 |
| M27*140 partial thread | USD 1.96 | 671114546867 |
| M27*150 partial thread | USD 2.06 | 671114546867 |
| M27*160 partial thread | USD 2.19 | 671114546867 |
| M27*170 partial thread | USD 2.29 | 671114546867 |
| M27*180 partial thread | USD 2.42 | 671114546867 |
| M27*190 partial thread | USD 2.55 | 671114546867 |
| M27*200 partial thread | USD 2.68 | 671114546867 |
| M27*210 partial thread | USD 2.81 | 671114546867 |
| M27*220 partial thread | USD 2.94 | 671114546867 |
| M27*230 partial thread | USD 3.07 | 671114546867 |
| M27*240 partial thread | USD 3.20 | 671114546867 |
| M27*250 partial thread | USD 3.33 | 671114546867 |
| M27*260 partial thread | USD 3.46 | 671114546867 |
| M27*270 partial thread | USD 3.57 | 671114546867 |
| M27*280 partial thread | USD 3.79 | 671114546867 |
| M27*300 partial thread | USD 4.00 | 671114546867 |
| M30*60 full thread | USD 1.45 | 671114546867 |
| M30*70 full thread | USD 1.58 | 671114546867 |
| M30*80 full thread | USD 1.65 | 671114546867 |
| M30*90 full thread | USD 1.84 | 671114546867 |
| M30*100 partial thread | USD 1.98 | 671114546867 |
| M30*110 partial thread | USD 2.10 | 671114546867 |
| M30*120 partial thread | USD 2.21 | 671114546867 |
| M30*130 partial thread | USD 2.32 | 671114546867 |
| M30*140 partial thread | USD 2.45 | 671114546867 |
| M30*150 partial thread | USD 2.58 | 671114546867 |
| M30*160 partial thread | USD 2.71 | 671114546867 |
| M30*170 partial thread | USD 2.86 | 671114546867 |
| M30*180 partial thread | USD 2.99 | 671114546867 |
| M30*190 partial thread | USD 3.14 | 671114546867 |
| M30*200 partial thread | USD 3.29 | 671114546867 |
| M30*210 partial thread | USD 3.48 | 671114546867 |
| M30*220 partial thread | USD 3.61 | 671114546867 |
| M30*230 partial thread | USD 3.77 | 671114546867 |
| M30*240 partial thread | USD 3.92 | 671114546867 |
| M30*250 partial thread | USD 4.07 | 671114546867 |
| M30*260 partial thread | USD 4.20 | 671114546867 |
| M30*270 partial thread | USD 4.44 | 671114546867 |
| M30*280 partial thread | USD 4.57 | 671114546867 |
| M30*300 partial thread | USD 4.78 | 671114546867 |
| M33*90 partial thread | USD 2.14 | 671114546867 |
| M33*110 partial thread | USD 2.49 | 671114546867 |
| M33*140 partial thread | USD 2.84 | 671114546867 |
| M33*190 partial thread | USD 3.57 | 671114546867 |
| M33*200 partial thread | USD 3.79 | 671114546867 |
| M33*210 partial thread | USD 3.94 | 671114546867 |
| M33*220 partial thread | USD 4.13 | 671114546867 |
| M33*230 partial thread | USD 4.35 | 671114546867 |
| M33*240 partial thread | USD 4.44 | 671114546867 |
| M33*250 partial thread | USD 4.63 | 671114546867 |
| M33*260 partial thread | USD 5.00 | 671114546867 |
| M33*270 partial thread | USD 5.32 | 671114546867 |
| M33*280 partial thread | USD 5.67 | 671114546867 |
| M33*300 partial thread | USD 6.10 | 671114546867 |
| M36*80 | USD 3.07 | 671114546867 |
| M36*90 | USD 3.31 | 671114546867 |
| M36*100 | USD 3.55 | 671114546867 |
| M36*110 | USD 3.77 | 671114546867 |
| M36*120 | USD 3.96 | 671114546867 |
| M36*130 | USD 4.18 | 671114546867 |
| M36*140 | USD 4.42 | 671114546867 |
| M36*150 | USD 4.46 | 671114546867 |
| M36*160 | USD 4.89 | 671114546867 |
| M36*170 | USD 5.13 | 671114546867 |
| M36*180 | USD 5.37 | 671114546867 |
| M36*190 | USD 5.61 | 671114546867 |
| M36*200 | USD 5.95 | 671114546867 |
| M36*210 | USD 6.19 | 671114546867 |
| M36*220 | USD 6.43 | 671114546867 |
| M36*230 | USD 6.67 | 671114546867 |
| M36*240 | USD 6.90 | 671114546867 |
| M36*250 | USD 7.14 | 671114546867 |
| M36*260 | USD 7.38 | 671114546867 |
| M36*270 | USD 7.62 | 671114546867 |
| M36*280 | USD 7.86 | 671114546867 |
| M36*300 | USD 8.33 | 671114546867 |
| M4*50 partial thread | USD 0.08 | 671114546867 |
YOU MAY ALSO LIKE
Related Products
Discuss your requirements.
Support for your inquiry
Confirm specifications
Include standard, material, dimensions and quantity.
Reference your drawing
Include a drawing reference or special requirements in your message.
Request supply terms
Final price, lead time and availability are confirmed by quotation.
