Home / Products / Grade 8.8 Blackened High-Strength Iron Flat Washers, M8/M12/M16

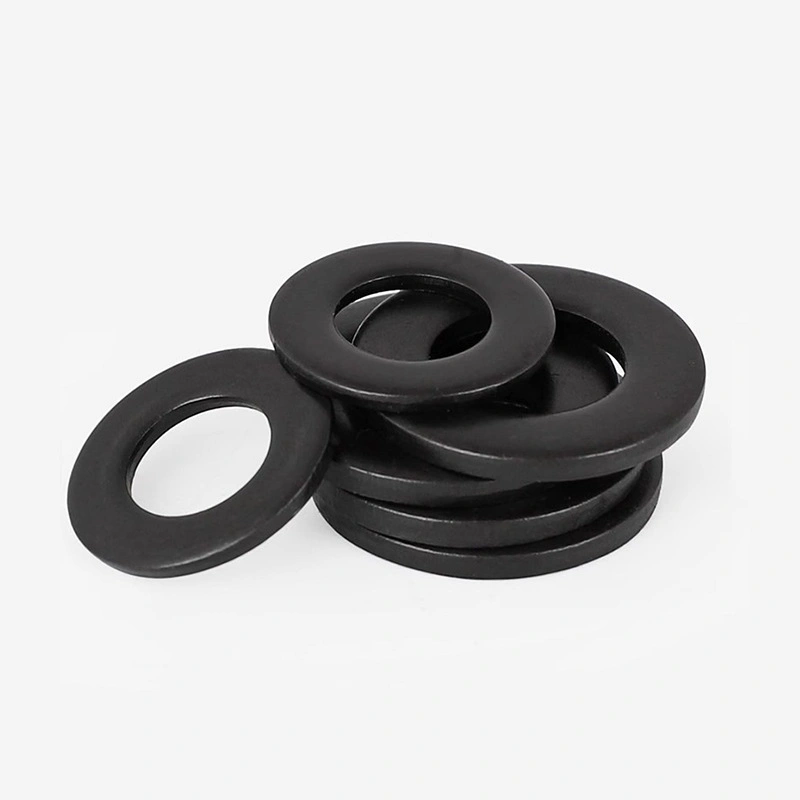

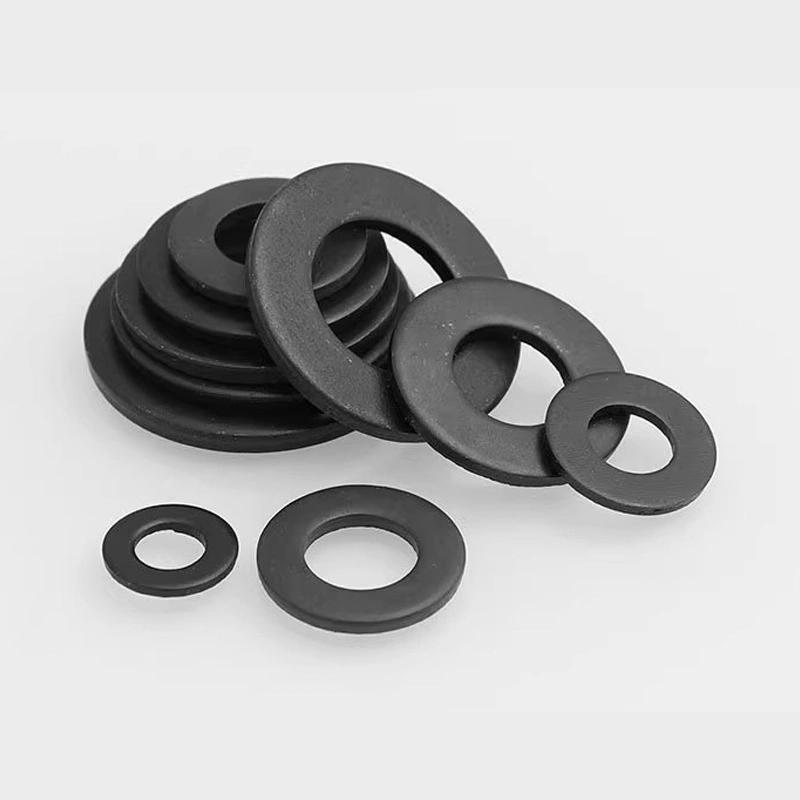

Grade 8.8 Blackened High-Strength Iron Flat Washers, M8/M12/M16

PRODUCT SPECIFICATIONS

Grade 8.8 Blackened High-Strength Iron Flat Washers, M8/M12/M16

Blackened high-strength round flat washers described as Grade 8.8 in the supplier title. The source specification image identifies GB97 and 45 steel. Select the exact inner diameter, outer diameter and thickness. The original diameter and thickness symbols and complete reference tolerance/mass table are preserved.

Price range: $0.03 through $2.10

Reference unit price · Confirm quantity and terms by inquiry

No online payment. Only email is required to inquire.

Product details

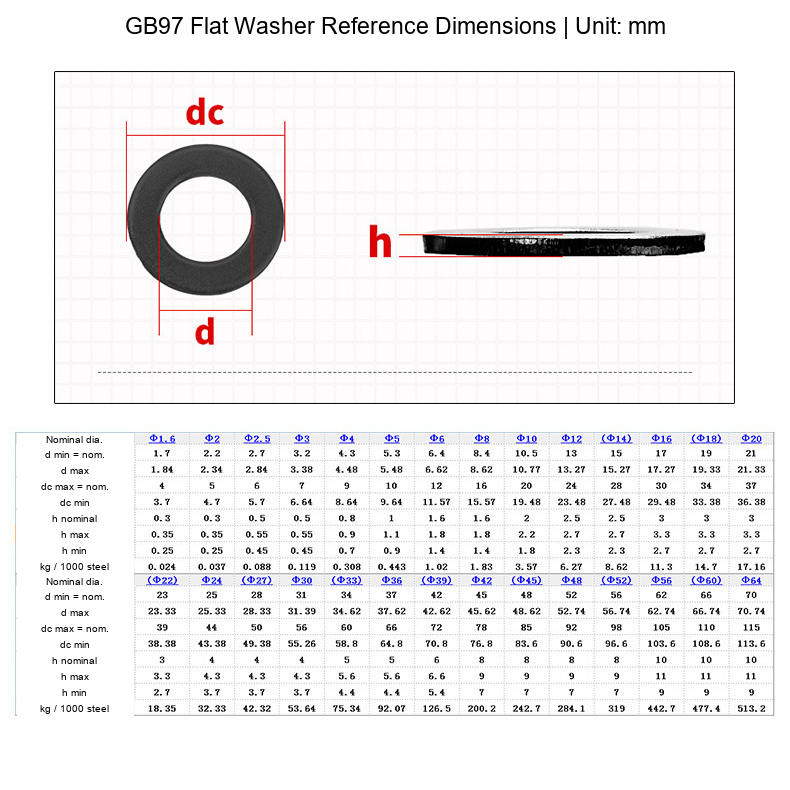

Grade 8.8 Blackened High-Strength Iron Flat Washers, M8/M12/M16 - Technical Dimensions

Blackened high-strength round flat washers described as Grade 8.8 in the supplier title. The source specification image identifies GB97 and 45 steel. Select the exact inner diameter, outer diameter and thickness. The original diameter and thickness symbols and complete reference tolerance/mass table are preserved.

Technical Specifications

Property Supplier data
Supplier grade 8.8
Material 45 steel, as listed in the source specification image
Finish Blackened
Supplier standard GB97
Option format Inner diameter x Outer diameter x Thickness
Unit mm

Model: 679092539050

View all specifications (21 options)
SpecificationUnit priceItem Ref
5*16*1.5USD 0.03679092539050
6*12*1.5USD 0.03679092539050
8*16*1.5USD 0.05679092539050
10*20*2USD 0.08679092539050
12*24*2.5USD 0.10679092539050
14*28*2.5USD 0.07679092539050
16*30*3USD 0.09679092539050
18*34*3USD 0.11679092539050
20*37*3USD 0.12679092539050
22*39*3USD 0.18679092539050
24*44*4USD 0.23679092539050
27*50*4USD 0.33679092539050
30*56*4USD 0.42679092539050
33*59*4.5USD 0.24679092539050
36*65*5USD 0.28679092539050
39*71*6USD 0.74679092539050
42*77*7USD 0.90679092539050
45*85*7USD 1.01679092539050
48*92*7USD 1.17679092539050
52*98*8USD 1.81679092539050
56*103*9USD 2.10679092539050
