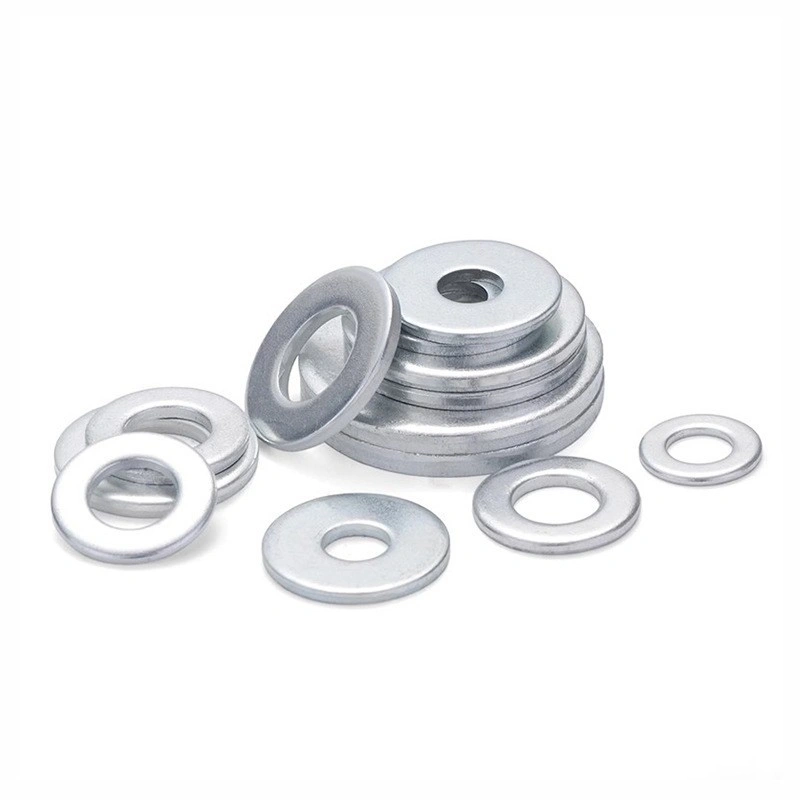

Grade 8 Zinc-Plated Iron Flat Washers, GB97, Large and Thick Options, M3-M30

PRODUCT SPECIFICATIONS

Grade 8 Zinc-Plated Iron Flat Washers, GB97, Large and Thick Options, M3-M30

Zinc-plated iron flat washers with large-diameter and thick options. The supplier title specifies Grade 8 and GB97; some supplier image text instead says 8.8, so the source designation should be confirmed for grade-sensitive orders. Select the exact inner diameter, outer diameter and thickness in the listed option.

Price range: $0.04 through $1.95

Reference unit price · Confirm quantity and terms by inquiry

No online payment. Only email is required to inquire.

Product details

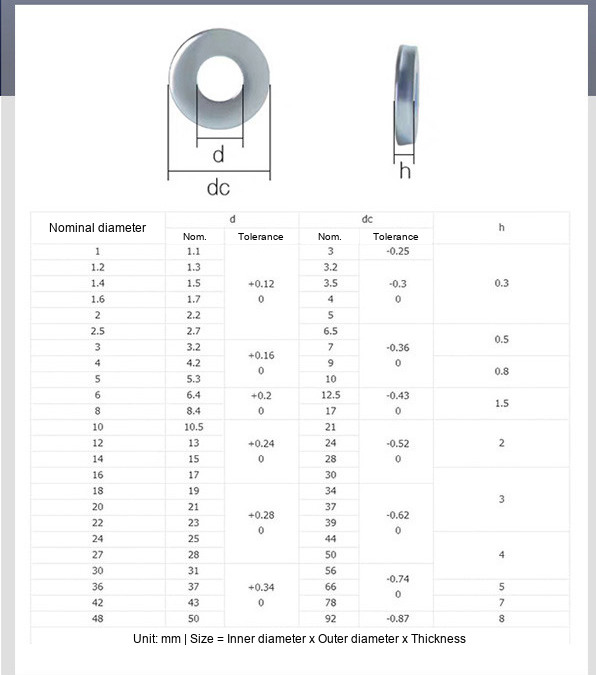

Grade 8 Zinc-Plated Iron Flat Washers, GB97, Large and Thick Options, M3-M30 - Technical Dimensions

Zinc-plated iron flat washers with large-diameter and thick options. The supplier title specifies Grade 8 and GB97; some supplier image text instead says 8.8, so the source designation should be confirmed for grade-sensitive orders. Select the exact inner diameter, outer diameter and thickness in the listed option.

Technical Specifications

Property Supplier data
Supplier title grade 8
Material in title Iron
Finish Zinc plated
Supplier standard GB97
Option format Inner diameter x Outer diameter x Thickness
Unit mm

Model: 671585635669

View all specifications (21 options)
SpecificationUnit priceItem Ref
5*10*1.0USD 0.04671585635669
6*12*1.5USD 0.04671585635669
8*16*1.5USD 0.05671585635669
10*20*2USD 0.09671585635669
12*24*2.5USD 0.06671585635669
14*28*2.5USD 0.09671585635669
16*30*3USD 0.10671585635669
18*34*3USD 0.14671585635669
20*37*3USD 0.15671585635669
22*39*3USD 0.18671585635669
24*44*4USD 0.32671585635669
27*50*4USD 0.36671585635669
30*56*4USD 0.47671585635669
33*59*4.5USD 0.31671585635669
36*65*5USD 0.36671585635669
39*71*6USD 0.89671585635669
42*77*7USD 1.09671585635669
45*85*7USD 1.18671585635669
48*92*7USD 1.26671585635669
52*98*8USD 1.81671585635669
56*103*9USD 1.95671585635669
