PRODUCT SPECIFICATIONS

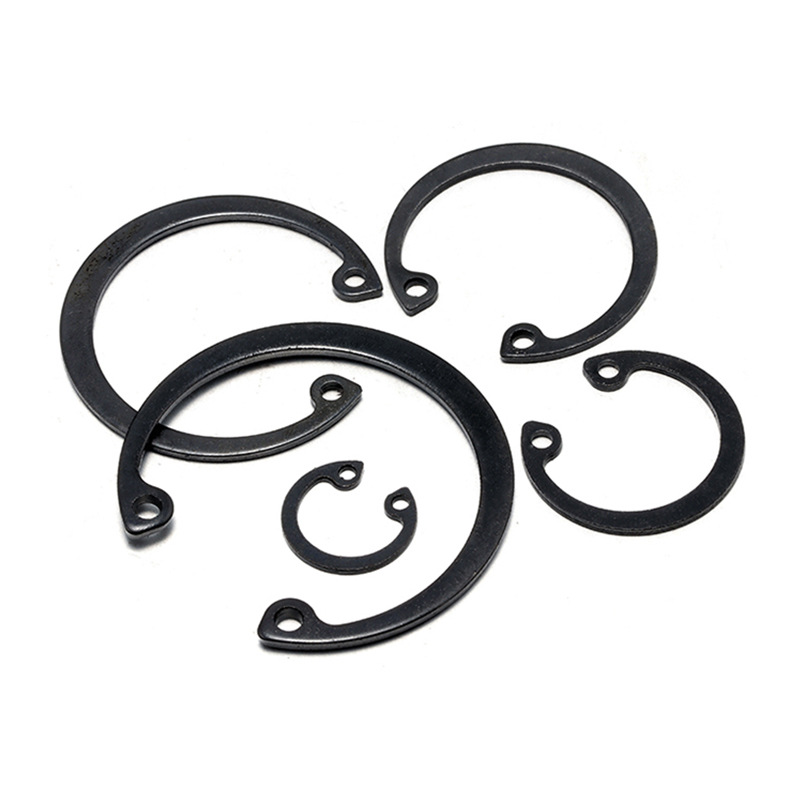

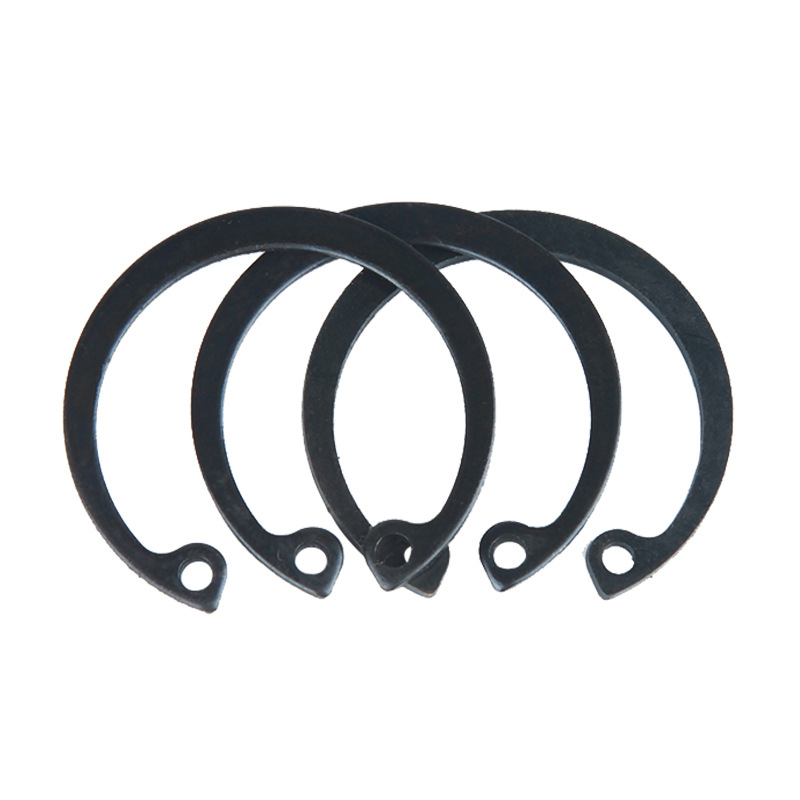

GB893 Internal Retaining Rings for Bores, 50Mn / 65Mn, Sizes 8-240
GB893 internal retaining rings (C-type circlips) for bores. The original title uses 50 manganese / 65 manganese wording, and the listed options identify 50Mn and 65Mn. Pack sizes are preserved in each option. Reference prices use the original listed option or pack price, without an inferred per-piece conversion. Inner diameter, outer diameter and thickness below reproduce the source specification table.
Price range: $0.22 through $11.31
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
GB893 internal retaining rings (C-type circlips) for bores. The original title uses 50 manganese / 65 manganese wording, and the listed options identify 50Mn and 65Mn. Pack sizes are preserved in each option. Reference prices use the original listed option or pack price, without an inferred per-piece conversion. Inner diameter, outer diameter and thickness below reproduce the source specification table.

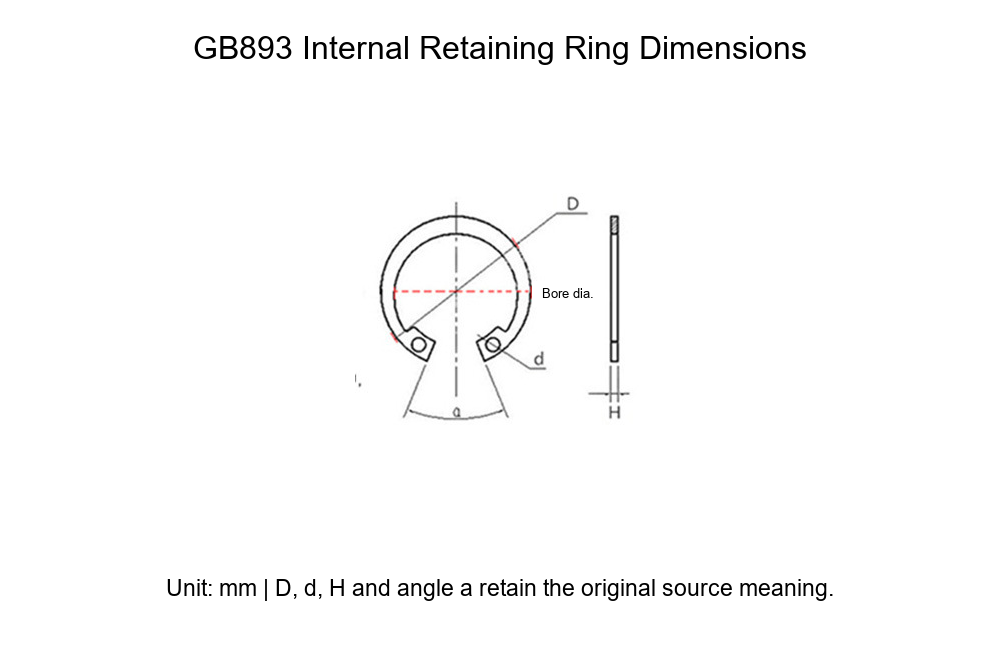

Technical Specifications
| Specification / pack | Ring inner diameter (mm) | Ring outer diameter (mm) | Thickness (mm) |
|---|---|---|---|
| 8(500 pcs)50Mn | 6.8 | 8.7 | 0.5 |
| 9(500 pcs)50Mn | 7.7 | 9.7 | 0.45 |
| 10(500 pcs)50Mn | 8 | 10.8 | 0.77 |
| 11(500 pcs)50Mn | 9 | 11.8 | 0.65 |
| 12(500 pcs)50Mn | 10 | 13 | 0.65 |
| 13(500 pcs)50Mn | 10.4 | 14.2 | 0.66 |
| 14(500 pcs)50Mn | 11.8 | 15 | 0.9 |
| 15(500 pcs)50Mn | 13 | 16.3 | 0.9 |
| 16(500 pcs)50Mn | 13.8 | 17.1 | 0.95 |
| 17(500 pcs)50Mn | 14.8 | 18.4 | 1 |
| 18(500 pcs)50Mn | 16 | 19.5 | 0.9 |
| 19(500 pcs)50Mn | 16.5 | 20.7 | 0.9 |
| 20(500 pcs)50Mn | 18.3 | 21.5 | 0.9 |
| 22(50 pcs)50Mn | 19.7 | 23.5 | 0.92 |
| 24(50 pcs)50Mn | 22.1 | 25.9 | 1.15 |
| 25(50 pcs)50Mn | 22.4 | 27 | 1.13 |
| 26(50 pcs)50Mn | 23.6 | 28 | 1.15 |
| 28(50 pcs)50Mn | 25.2 | 30.1 | 1.13 |
| 30(50 pcs)50Mn | 27.1 | 32.1 | 1.12 |
| 32(50 pcs)50Mn | 29.7 | 34.4 | 1.1 |
| 34(50 pcs)50Mn | 30.9 | 36.5 | 1.35 |
| 35(50 pcs)50Mn | 32.2 | 37.8 | 1.35 |
| 36(50 pcs)50Mn | 33.5 | 38.8 | 1.36 |
| 37(50 pcs)50Mn | 34.5 | 39.5 | 1.42 |
| 38(50 pcs)50Mn | 35.4 | 40.8 | 1.4 |
| 40(50 pcs)50Mn | 37 | 43.5 | 1.4 |
| 42(50 pcs)50Mn | 39.4 | 45.5 | 1.4 |
| 45(50 pcs)50Mn | 41.6 | 48.5 | 1.5 |
| 47(50 pcs)50Mn | 43.9 | 50.5 | 1.5 |
| 48(50 pcs)50Mn | 44.5 | 51.5 | 1.45 |
| 50(50 pcs)50Mn | 47.6 | 54.2 | 1.8 |
| 52(50 pcs)50Mn | 49.5 | 56.2 | 1.65 |
| 55(50 pcs)50Mn | 52.2 | 59.2 | 1.8 |
| 56(50 pcs)50Mn | 52.3 | 60.2 | 1.7 |
| 58(50 pcs)50Mn | 55 | 62.2 | 1.8 |
| 60(50 pcs)50Mn | 56.9 | 64.2 | 1.7 |
| 62(50 pcs)50Mn | 58.5 | 66.2 | 1.62 |
| 65(50 pcs)50Mn | 61.4 | 69.2 | 2.2 |
| 68(50 pcs)50Mn | 63.7 | 73 | 2.35 |
| 70(50 pcs)50Mn | 65.7 | 74.5 | 2.18 |
| 72(50 pcs)50Mn | 66.9 | 76.5 | 2.2 |
| 75(50 pcs)50Mn | 70.5 | 79.5 | 2.2 |
| 78(50 pcs)50Mn | 73.1 | 82.5 | 2.2 |
| 80(50 pcs)50Mn | 73.8 | 85.5 | 2.2 |
| 85(50 pcs)50Mn | 80.3 | 90.5 | 2.15 |
| 90(50 pcs)50Mn | 84.5 | 94.8 | 2.35 |
| 95(50 pcs)50Mn | 88.8 | 100.5 | 2.34 |
| 100(50 pcs)50Mn | 93 | 105.5 | 2.2 |
| 105(50Mn steel) | 99 | 112 | 2.55 |
| 110(50Mn steel) | 104 | 117 | 2.55 |
| 115(50Mn steel) | 108 | 122 | 2.6 |
| 120(50Mn steel) | 112 | 127 | 2.65 |
| 125(50Mn steel) | 119 | 132 | 2.63 |
| 130(50Mn steel) | 124 | 137 | 2.65 |
| 135(50Mn steel) | 126 | 142 | 2.75 |
| 140(50Mn steel) | 130 | 147 | 2.75 |
| 145(50Mn steel) | 138 | 152 | 3 |
| 150(50Mn steel) | 144 | 158 | 2.6 |
| 155(50Mn steel) | 146.4 | 164 | 2.63 |
| 160(50Mn steel) | 153 | 169 | 2.63 |
| 165(50Mn steel) | 153 | 171 | 2.65 |
| 170(50Mn steel) | 161 | 179.5 | 2.6 |
| 175(50Mn steel) | 165.5 | 184.5 | 2.7 |
| 180(50Mn steel) | 170.2 | 189.5 | 2.8 |
| 190(50Mn steel) | 180 | 197 | 3 |
| 200(50Mn steel) | 190 | 209 | 2.7 |
| 210(50Mn steel) | 200 | 219 | 2.7 |
| 220(50Mn steel) | 210 | 229 | 2.75 |
| 230(50Mn steel) | 218 | 244 | 3 |
| 240(50Mn steel) | 228 | 255 | 3 |
| 8(500 pcs)65Mn | 7 | 8.7 | 0.6 |
| 9(500 pcs)65Mn | 8 | 9.8 | 0.6 |
| 10(500 pcs)65Mn | 8.3 | 10.8 | 0.8 |
| 11(500 pcs)65Mn | 9.2 | 11.8 | 0.8 |
| 12(500 pcs)65Mn | 10.2 | 13 | 0.8 |
| 13(500 pcs)65Mn | 11.5 | 14.1 | 0.8 |
| 14(500 pcs)65Mn | 11.9 | 15.1 | 1 |
| 15(500 pcs)65Mn | 13 | 16.2 | 1 |
| 16(500 pcs)65Mn | 14.1 | 17.3 | 1 |
| 17(500 pcs)65Mn | 15.1 | 18.3 | 1 |
| 18(500 pcs)65Mn | 16.3 | 19.5 | 1 |
| 19(500 pcs)65Mn | 16.7 | 20.5 | 1 |
| 20(500 pcs)65Mn | 17.7 | 21.5 | 1 |
| 22(50 pcs)65Mn | 19.7 | 23.5 | 1 |
| 24(50 pcs)65Mn | 22.1 | 25.9 | 1.2 |
| 25(50 pcs)65Mn | 22.7 | 26.9 | 1.2 |
| 26(50 pcs)65Mn | 23.7 | 27.9 | 1.2 |
| 28(50 pcs)65Mn | 25.7 | 30.1 | 1.2 |
| 30(50 pcs)65Mn | 27.3 | 32.1 | 1.2 |
| 32(50 pcs)65Mn | 29.3 | 34.4 | 1.2 |
| 34(50 pcs)65Mn | 31.3 | 36.5 | 1.5 |
| 35(50 pcs)65Mn | 32.4 | 37.8 | 1.5 |
| 36(50 pcs)65Mn | 33.4 | 38.8 | 1.5 |
| 37(50 pcs)65Mn | 34.5 | 39.8 | 1.5 |
| 38(50 pcs)65Mn | 35.5 | 40.8 | 1.5 |
| 40(50 pcs)65Mn | 37.3 | 43.5 | 1.5 |
| 42(50 pcs)65Mn | 39.3 | 45.5 | 1.5 |
| 45(50 pcs)65Mn | 41.5 | 48.5 | 1.5 |
| 47(50 pcs)65Mn | 43.5 | 50.5 | 1.5 |
| 48(50 pcs)65Mn | 44.5 | 51.5 | 1.5 |
| 50(50 pcs)65Mn | 47.5 | 54.2 | 2 |
| 52(50 pcs)65Mn | 49.5 | 56.2 | 2 |
| 55(50 pcs)65Mn | 52.2 | 59.2 | 2 |
| 56(50 pcs)65Mn | 53.5 | 60.2 | 2 |
| 58(50 pcs)65Mn | 54.5 | 62.2 | 2 |
| 60(50 pcs)65Mn | 56.4 | 64.2 | 2 |
| 62(50 pcs)65Mn | 58.4 | 66.2 | 2 |
| 65(50 pcs)65Mn | 61.4 | 69.2 | 2.5 |
| 68(50 pcs)65Mn | 63.9 | 72.5 | 2.5 |
| 70(50 pcs)65Mn | 65.9 | 74.5 | 2.5 |
| 72(50 pcs)65Mn | 67.9 | 76.5 | 2.5 |
| 75(50 pcs)65Mn | 70.1 | 79.5 | 2.5 |
| 78(50 pcs)65Mn | 73.1 | 82.5 | 2.5 |
| 80(50 pcs)65Mn | 75.3 | 85.5 | 2.5 |
| 85(50 pcs)65Mn | 80.3 | 90.5 | 2.5 |
| 90(50 pcs)65Mn | 84.5 | 95.5 | 2.5 |
| 95(50 pcs)65Mn | 88.9 | 100.5 | 2.5 |
| 100(50 pcs)65Mn | 93.9 | 105.5 | 2.5 |
| 105(65Mn steel) | 99.6 | 112 | 3 |
| 110(65Mn steel) | 103.8 | 117 | 3 |
| 115(65Mn steel) | 108 | 122 | 3 |
| 120(65Mn steel) | 113 | 127 | 3 |
| 125(65Mn steel) | 117 | 132 | 3 |
| 130(65Mn steel) | 121 | 137 | 3 |
| 135(65Mn steel) | 126 | 142 | 3 |
| 140(65Mn steel) | 131 | 147 | 3 |
| 145(65Mn steel) | 135.7 | 152 | 3 |
| 150(65Mn steel) | 141.2 | 158 | 3 |
| 160(65Mn steel) | 151.6 | 169 | 3 |
| 170(65Mn steel) | 161 | 179.5 | 3 |
| 180(65Mn steel) | 170 | 189.5 | 3 |
| 190(65Mn steel) | 180.2 | 199.5 | 3 |
| 200(65Mn steel) | 190.2 | 209.5 | 3 |
Model: 678060073324
View all specifications (133 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| 8(500 pcs)50Mn | USD 2.06 | 678060073324 |
| 9(500 pcs)50Mn | USD 2.06 | 678060073324 |
| 10(500 pcs)50Mn | USD 2.06 | 678060073324 |
| 11(500 pcs)50Mn | USD 2.06 | 678060073324 |
| 12(500 pcs)50Mn | USD 2.06 | 678060073324 |
| 13(500 pcs)50Mn | USD 3.08 | 678060073324 |
| 14(500 pcs)50Mn | USD 3.08 | 678060073324 |
| 15(500 pcs)50Mn | USD 3.08 | 678060073324 |
| 16(500 pcs)50Mn | USD 3.08 | 678060073324 |
| 17(500 pcs)50Mn | USD 3.08 | 678060073324 |
| 18(500 pcs)50Mn | USD 3.08 | 678060073324 |
| 19(500 pcs)50Mn | USD 2.78 | 678060073324 |
| 20(500 pcs)50Mn | USD 3.08 | 678060073324 |
| 22(50 pcs)50Mn | USD 0.41 | 678060073324 |
| 24(50 pcs)50Mn | USD 0.52 | 678060073324 |
| 25(50 pcs)50Mn | USD 0.62 | 678060073324 |
| 26(50 pcs)50Mn | USD 0.62 | 678060073324 |
| 28(50 pcs)50Mn | USD 0.62 | 678060073324 |
| 30(50 pcs)50Mn | USD 0.74 | 678060073324 |
| 32(50 pcs)50Mn | USD 0.82 | 678060073324 |
| 34(50 pcs)50Mn | USD 1.03 | 678060073324 |
| 35(50 pcs)50Mn | USD 1.03 | 678060073324 |
| 36(50 pcs)50Mn | USD 1.03 | 678060073324 |
| 37(50 pcs)50Mn | USD 1.13 | 678060073324 |
| 38(50 pcs)50Mn | USD 1.13 | 678060073324 |
| 40(50 pcs)50Mn | USD 1.23 | 678060073324 |
| 42(50 pcs)50Mn | USD 1.23 | 678060073324 |
| 45(50 pcs)50Mn | USD 1.34 | 678060073324 |
| 47(50 pcs)50Mn | USD 1.44 | 678060073324 |
| 48(50 pcs)50Mn | USD 1.54 | 678060073324 |
| 50(50 pcs)50Mn | USD 1.85 | 678060073324 |
| 52(50 pcs)50Mn | USD 1.85 | 678060073324 |
| 55(50 pcs)50Mn | USD 2.06 | 678060073324 |
| 56(50 pcs)50Mn | USD 2.16 | 678060073324 |
| 58(50 pcs)50Mn | USD 2.47 | 678060073324 |
| 60(50 pcs)50Mn | USD 2.47 | 678060073324 |
| 62(50 pcs)50Mn | USD 2.47 | 678060073324 |
| 65(50 pcs)50Mn | USD 3.39 | 678060073324 |
| 68(50 pcs)50Mn | USD 3.70 | 678060073324 |
| 70(50 pcs)50Mn | USD 3.70 | 678060073324 |
| 72(50 pcs)50Mn | USD 3.81 | 678060073324 |
| 75(50 pcs)50Mn | USD 4.01 | 678060073324 |
| 78(50 pcs)50Mn | USD 4.52 | 678060073324 |
| 80(50 pcs)50Mn | USD 4.52 | 678060073324 |
| 85(50 pcs)50Mn | USD 4.63 | 678060073324 |
| 90(50 pcs)50Mn | USD 5.04 | 678060073324 |
| 95(50 pcs)50Mn | USD 5.55 | 678060073324 |
| 100(50 pcs)50Mn | USD 5.96 | 678060073324 |
| 105(50Mn steel) | USD 0.34 | 678060073324 |
| 110(50Mn steel) | USD 0.36 | 678060073324 |
| 115(50Mn steel) | USD 0.41 | 678060073324 |
| 120(50Mn steel) | USD 0.43 | 678060073324 |
| 125(50Mn steel) | USD 0.46 | 678060073324 |
| 130(50Mn steel) | USD 0.22 | 678060073324 |
| 135(50Mn steel) | USD 0.23 | 678060073324 |
| 140(50Mn steel) | USD 0.24 | 678060073324 |
| 145(50Mn steel) | USD 0.25 | 678060073324 |
| 150(50Mn steel) | USD 0.25 | 678060073324 |
| 155(50Mn steel) | USD 0.31 | 678060073324 |
| 160(50Mn steel) | USD 0.35 | 678060073324 |
| 165(50Mn steel) | USD 0.39 | 678060073324 |
| 170(50Mn steel) | USD 0.41 | 678060073324 |
| 175(50Mn steel) | USD 0.43 | 678060073324 |
| 180(50Mn steel) | USD 0.44 | 678060073324 |
| 190(50Mn steel) | USD 0.47 | 678060073324 |
| 200(50Mn steel) | USD 0.52 | 678060073324 |
| 210(50Mn steel) | USD 0.62 | 678060073324 |
| 220(50Mn steel) | USD 0.68 | 678060073324 |
| 230(50Mn steel) | USD 0.97 | 678060073324 |
| 240(50Mn steel) | USD 1.13 | 678060073324 |
| 8(500 pcs)65Mn | USD 2.06 | 678060073324 |
| 9(500 pcs)65Mn | USD 2.06 | 678060073324 |
| 10(500 pcs)65Mn | USD 2.06 | 678060073324 |
| 11(500 pcs)65Mn | USD 2.06 | 678060073324 |
| 12(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 13(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 14(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 15(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 16(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 17(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 18(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 19(500 pcs)65Mn | USD 3.08 | 678060073324 |
| 20(500 pcs)65Mn | USD 4.11 | 678060073324 |
| 22(50 pcs)65Mn | USD 0.52 | 678060073324 |
| 24(50 pcs)65Mn | USD 0.52 | 678060073324 |
| 25(50 pcs)65Mn | USD 0.62 | 678060073324 |
| 26(50 pcs)65Mn | USD 0.62 | 678060073324 |
| 28(50 pcs)65Mn | USD 0.72 | 678060073324 |
| 30(50 pcs)65Mn | USD 0.82 | 678060073324 |
| 32(50 pcs)65Mn | USD 0.93 | 678060073324 |
| 34(50 pcs)65Mn | USD 1.44 | 678060073324 |
| 35(50 pcs)65Mn | USD 1.44 | 678060073324 |
| 36(50 pcs)65Mn | USD 1.44 | 678060073324 |
| 37(50 pcs)65Mn | USD 1.44 | 678060073324 |
| 38(50 pcs)65Mn | USD 1.54 | 678060073324 |
| 40(50 pcs)65Mn | USD 1.65 | 678060073324 |
| 42(50 pcs)65Mn | USD 1.75 | 678060073324 |
| 45(50 pcs)65Mn | USD 1.75 | 678060073324 |
| 47(50 pcs)65Mn | USD 1.85 | 678060073324 |
| 48(50 pcs)65Mn | USD 2.98 | 678060073324 |
| 50(50 pcs)65Mn | USD 3.39 | 678060073324 |
| 52(50 pcs)65Mn | USD 3.60 | 678060073324 |
| 55(50 pcs)65Mn | USD 3.70 | 678060073324 |
| 56(50 pcs)65Mn | USD 5.14 | 678060073324 |
| 58(50 pcs)65Mn | USD 5.14 | 678060073324 |
| 60(50 pcs)65Mn | USD 4.42 | 678060073324 |
| 62(50 pcs)65Mn | USD 4.52 | 678060073324 |
| 65(50 pcs)65Mn | USD 5.66 | 678060073324 |
| 68(50 pcs)65Mn | USD 6.37 | 678060073324 |
| 70(50 pcs)65Mn | USD 7.30 | 678060073324 |
| 72(50 pcs)65Mn | USD 7.92 | 678060073324 |
| 75(50 pcs)65Mn | USD 8.23 | 678060073324 |
| 78(50 pcs)65Mn | USD 10.28 | 678060073324 |
| 80(50 pcs)65Mn | USD 9.36 | 678060073324 |
| 85(50 pcs)65Mn | USD 10.18 | 678060073324 |
| 90(50 pcs)65Mn | USD 10.90 | 678060073324 |
| 95(50 pcs)65Mn | USD 11.10 | 678060073324 |
| 100(50 pcs)65Mn | USD 11.31 | 678060073324 |
| 105(65Mn steel) | USD 0.41 | 678060073324 |
| 110(65Mn steel) | USD 0.45 | 678060073324 |
| 115(65Mn steel) | USD 0.50 | 678060073324 |
| 120(65Mn steel) | USD 0.55 | 678060073324 |
| 125(65Mn steel) | USD 0.59 | 678060073324 |
| 130(65Mn steel) | USD 0.61 | 678060073324 |
| 135(65Mn steel) | USD 0.63 | 678060073324 |
| 140(65Mn steel) | USD 0.66 | 678060073324 |
| 145(65Mn steel) | USD 0.66 | 678060073324 |
| 150(65Mn steel) | USD 0.68 | 678060073324 |
| 160(65Mn steel) | USD 0.72 | 678060073324 |
| 170(65Mn steel) | USD 0.84 | 678060073324 |
| 180(65Mn steel) | USD 1.00 | 678060073324 |
| 190(65Mn steel) | USD 1.04 | 678060073324 |
| 200(65Mn steel) | USD 1.09 | 678060073324 |
YOU MAY ALSO LIKE
Related Products
Discuss your requirements.
Support for your inquiry
Confirm specifications
Include standard, material, dimensions and quantity.
Reference your drawing
Include a drawing reference or special requirements in your message.
Request supply terms
Final price, lead time and availability are confirmed by quotation.
