PRODUCT SPECIFICATIONS

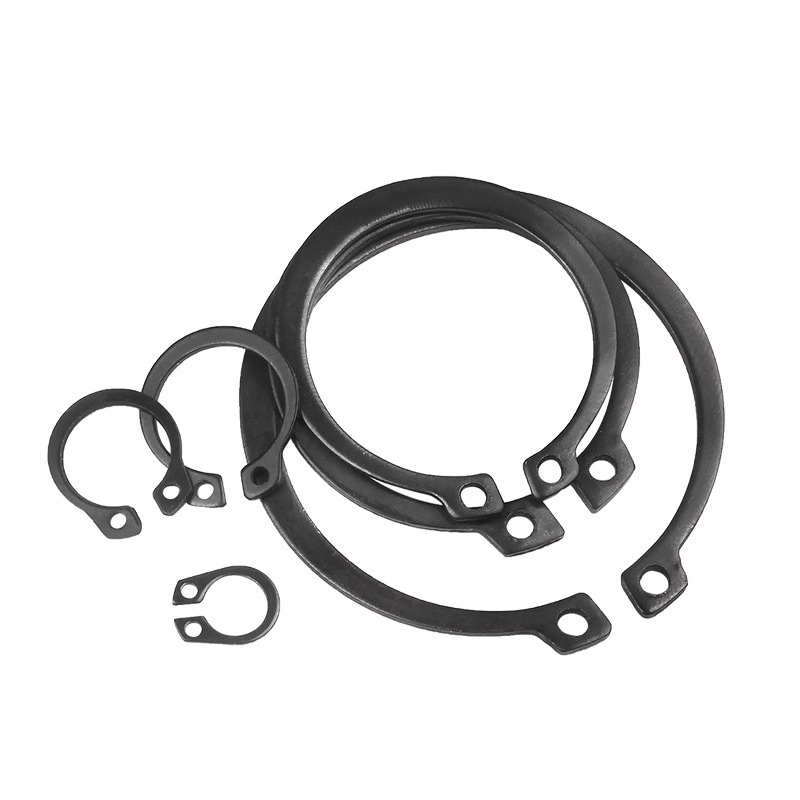

Black GB894 External Retaining Rings (Circlips), 50# Steel / 65Mn
Black GB894 external retaining rings for shafts. The original product title lists 50# steel and 65Mn; the selectable source options use 50Mn and 65Mn material labels. Confirm the material designation with your specification. Pack quantities, where stated, are retained in each option; the displayed reference price is for the selected listed option or pack, not an inferred per-piece conversion.
Price range: $0.24 through $13.57
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
Product Description
Black GB894 external retaining rings for shafts. The original product title lists 50# steel and 65Mn; the selectable source options use 50Mn and 65Mn material labels. Confirm the material designation with your specification. Pack quantities, where stated, are retained in each option; the displayed reference price is for the selected listed option or pack, not an inferred per-piece conversion.

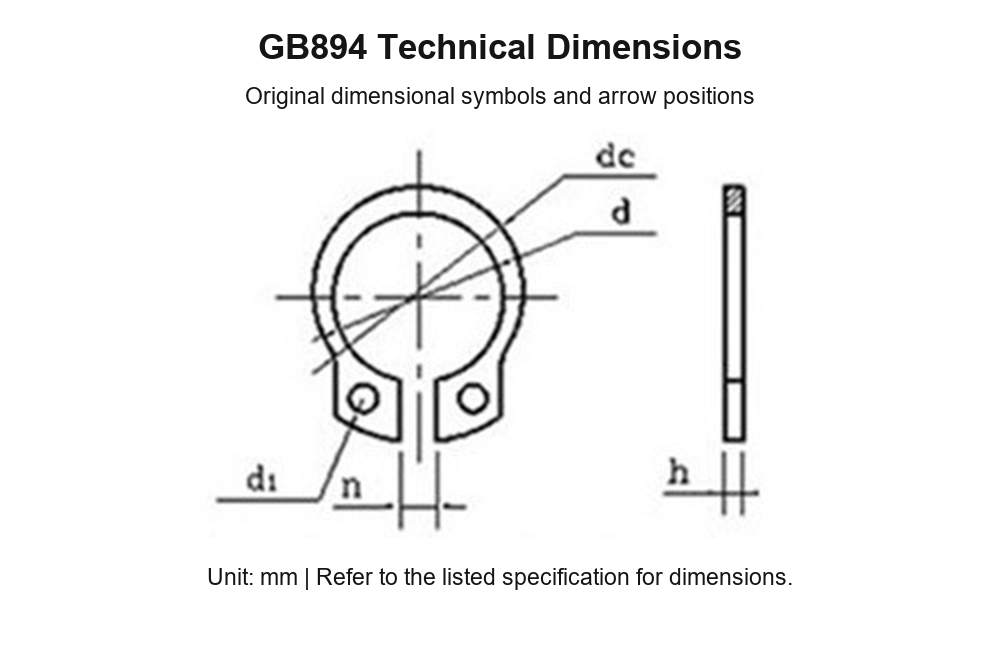

Technical Specifications
Standard: GB894; Type: External shaft retaining ring / circlip; Color: Black; Material labels: 50# steel in title; 50Mn / 65Mn in options.
| Specification / Pack | Inner Diameter (mm) | Outer Diameter (mm) | Thickness (mm) |
|---|---|---|---|
| 4 (500 pcs), 50Mn | 3.7 | 5 | 0.4 |
| 5 (500 pcs), 50Mn | 4.7 | 6.4 | 0.5 |
| 6 (500 pcs), 50Mn | 5.6 | 6.4 | 0.63 |
| 7 (500 pcs), 50Mn | 6.5 | 7.7 | 0.7 |
| 8 (500 pcs), 50Mn | 7.4 | 9.6 | 0.8 |
| 9 (500 pcs), 50Mn | 8.3 | 11 | 0.7 |
| 10 (500 pcs), 50Mn | 9.1 | 11.6 | 0.95 |
| 11 (500 pcs), 50Mn | 10 | 12.5 | 1.06 |
| 12 (500 pcs), 50Mn | 10.8 | 13.7 | 1 |
| 13 (500 pcs), 50Mn | 11.9 | 14.7 | 1. |
| 14 (500 pcs), 50Mn | 12.8 | 15.7 | 1 |
| 15 (500 pcs), 50Mn | 13.3 | 16.8 | 1 |
| 16 (500 pcs), 50Mn | 14.5 | 18.2 | 1 |
| 17 (500 pcs), 50Mn | 15.5 | 19.4 | 1 |
| 18 (500 pcs), 50Mn | 16.4 | 20.2 | 1 |
| 19 (500 pcs), 50Mn | 17.4 | 21.2 | 1.1 |
| 20 (500 pcs), 50Mn | 18.4 | 22.5 | 1 |
| 22 (50 pcs), 50Mn | 20.4 | 24.5 | 1.1 |
| 24 (50 pcs), 50Mn | 22.1 | 26.5 | 1.25 |
| 25 (50 pcs), 50Mn | 22.6 | 27.5 | 1.4 |
| 26 (50 pcs), 50Mn | 23.7 | 28.4 | 1.3 |
| 28 (50 pcs), 50Mn | 25.5 | 31.3 | 1.2 |
| 30 (50 pcs), 50Mn | 27.4 | 32.9 | 1.2 |
| 32 (50 pcs), 50Mn | 29.2 | 35.2 | 1.2 |
| 34 (50 pcs), 50Mn | 31.6 | 38.1 | 1.56 |
| 35 (50 pcs), 50Mn | 31.6 | 38.4 | 1.52 |
| 36 (50 pcs), 50Mn | 32.8 | 39.4 | 1.57 |
| 37 (50 pcs), 50Mn | 34.2 | 41 | 1.57 |
| 38 (50 pcs), 50Mn | 35.2 | 42.7 | 1.48 |
| 40 (50 pcs), 50Mn | 37.1 | 44 | 1.53 |
| 42 (50 pcs), 50Mn | 37.3 | 44.3 | 1.55 |
| 45 (50 pcs), 50Mn | 41.1 | 48.7 | 1.5 |
| 48 (50 pcs), 50Mn | 43.9 | 51.4 | 1.45 |
| 50 (50 pcs), 50Mn | 45.2 | 54.1 | 1.9 |
| 52 (50 pcs), 50Mn | 46.7 | 56.1 | 1.9 |
| 55 (50 pcs), 50Mn | 50.1 | 59.4 | 1.92 |
| 56 (50 pcs), 50Mn | 51.7 | 60.4 | 1.9 |
| 58 (50 pcs), 50Mn | 53.2 | 62.7 | 1.84 |
| 60 (50 pcs), 50Mn | 54.5 | 64.5 | 1.8 |
| 62 (50 pcs), 50Mn | 57.3 | 66.7 | 2.05 |
| 65 (50 pcs), 50Mn | 60.6 | 70.3 | 2.77 |
| 68 (50 pcs), 50Mn | 64 | 75.1 | 2.58 |
| 70 (50 pcs), 50Mn | 64.3 | 75.6 | 2.3 |
| 72 (50 pcs), 50Mn | 65.8 | 77.1 | 2.3 |
| 75 (50 pcs), 50Mn | 69.8 | 81.4 | 2.2 |
| 78 (50 pcs), 50Mn | 73.5 | 82.5 | 2.3 |
| 80 (50 pcs), 50Mn | 69.8 | 81.4 | 2.35 |
| 85 (50 pcs), 50Mn | 78.9 | 89.9 | 2.3 |
| 90 (50 pcs), 50Mn | 84.3 | 95.8 | 2.5 |
| 95 (50 pcs), 50Mn | 89.5 | 102 | 2.3 |
| 100 (50 pcs), 50Mn | 93 | 105.8 | 2.45 |
| 110 (50Mn steel) | 101.8 | 116.7 | 2.7 |
| 120 (50Mn steel) | 114 | 128 | 2.85 |
| 125 (50Mn steel) | 121 | 135 | 2.7 |
| 130 (50Mn steel) | 123 | 141 | 2.75 |
| 135 (50Mn steel) | 127 | 149 | 2.85 |
| 140 (50Mn steel) | 135 | 146 | 3.05 |
| 150 (50Mn steel) | 141 | 160 | 2.85 |
| 160 (50Mn steel) | 151 | 173 | 2.65 |
| 170 (50Mn steel) | 163 | 180 | 2.75 |
| 180 (50Mn steel) | 170 | 186 | 2.75 |
| 190 (50Mn steel) | 178 | 197 | 2.7 |
| 200 (50Mn steel) | 185 | 209 | 2.85 |
| 210 (50Mn steel) | 197 | 220 | 2.85 |
| 220 (50Mn steel) | 207 | 228 | 2.85 |
| 230 (50Mn steel) | 218 | 242 | 2.85 |
| 240 (50Mn steel) | 221 | 250 | 2.75 |
| 4 (500 pcs), 65Mn | 3.8 | 5 | 0.4 |
| 5 (500 pcs), 65Mn | 4.7 | 6.4 | 0.6 |
| 6 (500 pcs), 65Mn | 5.6 | 7.6 | 0.6 |
| 7 (500 pcs), 65Mn | 6.5 | 8.4 | 0.6 |
| 8 (500 pcs), 65Mn | 7.4 | 9.38 | 0.8 |
| 9 (500 pcs), 65Mn | 8.4 | 9.6 | 0.8 |
| 10 (500 pcs), 65Mn | 9.3 | 11.5 | 1 |
| 11 (500 pcs), 65Mn | 10.2 | 12.5 | 1 |
| 12 (500 pcs), 65Mn | 11 | 13.6 | 1 |
| 13 (500 pcs), 65Mn | 11.9 | 14.7 | 1 |
| 14 (500 pcs), 65Mn | 12.9 | 15.7 | 1 |
| 15 (500 pcs), 65Mn | 13.8 | 16.8 | 1 |
| 16 (500 pcs), 65Mn | 14.7 | 18.2 | 1 |
| 17 (500 pcs), 65Mn | 15.7 | 19.4 | 1 |
| 18 (500 pcs), 65Mn | 16.5 | 20.2 | 1 |
| 19 (500 pcs), 65Mn | 17.5 | 21.2 | 1 |
| 20 (500 pcs), 65Mn | 18.5 | 22.5 | 1 |
| 22 (50 pcs), 65Mn | 20.5 | 24.5 | 1 |
| 24 (50 pcs), 65Mn | 22.2 | 27.2 | 1.2 |
| 25 (50 pcs), 65Mn | 23.2 | 28.2 | 1.2 |
| 26 (50 pcs), 65Mn | 24.2 | 29.2 | 1.2 |
| 28 (50 pcs), 65Mn | 25.9 | 31.3 | 1.2 |
| 30 (50 pcs), 65Mn | 27.9 | 33.5 | 1.2 |
| 32 (50 pcs), 65Mn | 29.6 | 35.5 | 1.2 |
| 34 (50 pcs), 65Mn | 31.5 | 38 | 1.5 |
| 35 (50 pcs), 65Mn | 32.2 | 39 | 1.5 |
| 36 (50 pcs), 65Mn | 33.2 | 40 | 1.5 |
| 37 (50 pcs), 65Mn | 35.2 | 41 | 1.5 |
| 38 (50 pcs), 65Mn | 36.5 | 42.7 | 1.5 |
| 40 (50 pcs), 65Mn | 37.5 | 46 | 1.5 |
| 42 (50 pcs), 65Mn | 38.5 | 49 | 1.5 |
| 45 (50 pcs), 65Mn | 41.5 | 49 | 1.5 |
| 48 (50 pcs), 65Mn | 44.5 | 52 | 1.5 |
| 50 (50 pcs), 65Mn | 45.8 | 54 | 2 |
| 52 (50 pcs), 65Mn | 47.8 | 56 | 2 |
| 55 (50 pcs), 65Mn | 50.8 | 59 | 2 |
| 56 (50 pcs), 65Mn | 51.8 | 61 | 2 |
| 58 (50 pcs), 65Mn | 53.8 | 63 | 2 |
| 60 (50 pcs), 65Mn | 55.8 | 65 | 2 |
| 62 (50 pcs), 65Mn | 57.8 | 67 | 2 |
| 65 (50 pcs), 65Mn | 60.8 | 70 | 2.5 |
| 68 (50 pcs), 65Mn | 63.5 | 73 | 2.5 |
| 70 (50 pcs), 65Mn | 65.5 | 75 | 2.5 |
| 72 (50 pcs), 65Mn | 67.5 | 77 | 2.5 |
| 75 (50 pcs), 65Mn | 70 | 80 | 2.5 |
| 78 (50 pcs), 65Mn | 73.5 | 83 | 2.5 |
| 80 (50 pcs), 65Mn | 74.5 | 85 | 2.5 |
| 85 (50 pcs), 65Mn | 79.5 | 90 | 2.5 |
| 90 (50 pcs), 65Mn | 84.5 | 96 | 2.5 |
| 95 (50 pcs), 65Mn | 89.5 | 103.3 | 2.5 |
| 100 (50 pcs), 65Mn | 94.5 | 108.5 | 2.5 |
| 105 (65Mn steel) | 98 | 112 | 3 |
| 110 (65Mn steel) | 103 | 119 | 3 |
| 120 (65Mn steel) | 113 | 129 | 3 |
| 125 (65Mn steel) | 118 | 132 | 3 |
| 130 (65Mn steel) | 125 | 136 | 3 |
| 135 (65Mn steel) | 128 | 141 | 3 |
| 140 (65Mn steel) | 133 | 146 | 3 |
| 150 (65Mn steel) | 142 | 155 | 3 |
| 160 (65Mn steel) | 151 | 173 | 3 |
| 170 (65Mn steel) | 160.5 | 181 | 3 |
| 180 (65Mn steel) | 170.5 | 193 | 3 |
| 190 (65Mn steel) | 180.5 | 203.3 | 3 |
| 200 (65Mn steel) | 190.5 | 214 | 3 |
Model: 678301614353
View all specifications (131 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| 4 (500 pcs), 50Mn | USD 1.03 | 678301614353 |
| 5 (500 pcs), 50Mn | USD 1.03 | 678301614353 |
| 6 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 7 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 8 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 9 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 10 (500 pcs), 50Mn | USD 1.65 | 678301614353 |
| 11 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 12 (500 pcs), 50Mn | USD 1.65 | 678301614353 |
| 13 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 14 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 15 (500 pcs), 50Mn | USD 2.06 | 678301614353 |
| 16 (500 pcs), 50Mn | USD 3.08 | 678301614353 |
| 17 (500 pcs), 50Mn | USD 3.08 | 678301614353 |
| 18 (500 pcs), 50Mn | USD 3.08 | 678301614353 |
| 19 (500 pcs), 50Mn | USD 3.08 | 678301614353 |
| 20 (500 pcs), 50Mn | USD 4.11 | 678301614353 |
| 22 (50 pcs), 50Mn | USD 0.52 | 678301614353 |
| 24 (50 pcs), 50Mn | USD 0.62 | 678301614353 |
| 25 (50 pcs), 50Mn | USD 0.62 | 678301614353 |
| 26 (50 pcs), 50Mn | USD 0.54 | 678301614353 |
| 28 (50 pcs), 50Mn | USD 0.72 | 678301614353 |
| 30 (50 pcs), 50Mn | USD 0.63 | 678301614353 |
| 32 (50 pcs), 50Mn | USD 0.93 | 678301614353 |
| 34 (50 pcs), 50Mn | USD 1.03 | 678301614353 |
| 35 (50 pcs), 50Mn | USD 1.09 | 678301614353 |
| 36 (50 pcs), 50Mn | USD 1.13 | 678301614353 |
| 37 (50 pcs), 50Mn | USD 1.23 | 678301614353 |
| 38 (50 pcs), 50Mn | USD 1.34 | 678301614353 |
| 40 (50 pcs), 50Mn | USD 1.31 | 678301614353 |
| 42 (50 pcs), 50Mn | USD 1.54 | 678301614353 |
| 45 (50 pcs), 50Mn | USD 1.75 | 678301614353 |
| 48 (50 pcs), 50Mn | USD 1.85 | 678301614353 |
| 50 (50 pcs), 50Mn | USD 2.37 | 678301614353 |
| 52 (50 pcs), 50Mn | USD 2.67 | 678301614353 |
| 55 (50 pcs), 50Mn | USD 3.08 | 678301614353 |
| 56 (50 pcs), 50Mn | USD 3.19 | 678301614353 |
| 58 (50 pcs), 50Mn | USD 3.39 | 678301614353 |
| 60 (50 pcs), 50Mn | USD 3.39 | 678301614353 |
| 62 (50 pcs), 50Mn | USD 3.50 | 678301614353 |
| 65 (50 pcs), 50Mn | USD 4.63 | 678301614353 |
| 68 (50 pcs), 50Mn | USD 5.14 | 678301614353 |
| 70 (50 pcs), 50Mn | USD 5.35 | 678301614353 |
| 72 (50 pcs), 50Mn | USD 5.55 | 678301614353 |
| 75 (50 pcs), 50Mn | USD 5.66 | 678301614353 |
| 78 (50 pcs), 50Mn | USD 5.76 | 678301614353 |
| 80 (50 pcs), 50Mn | USD 5.86 | 678301614353 |
| 85 (50 pcs), 50Mn | USD 5.96 | 678301614353 |
| 90 (50 pcs), 50Mn | USD 6.07 | 678301614353 |
| 95 (50 pcs), 50Mn | USD 6.68 | 678301614353 |
| 100 (50 pcs), 50Mn | USD 7.61 | 678301614353 |
| 110 (50Mn steel) | USD 0.43 | 678301614353 |
| 120 (50Mn steel) | USD 0.24 | 678301614353 |
| 125 (50Mn steel) | USD 0.25 | 678301614353 |
| 130 (50Mn steel) | USD 0.26 | 678301614353 |
| 135 (50Mn steel) | USD 0.27 | 678301614353 |
| 140 (50Mn steel) | USD 0.29 | 678301614353 |
| 150 (50Mn steel) | USD 0.35 | 678301614353 |
| 160 (50Mn steel) | USD 0.39 | 678301614353 |
| 170 (50Mn steel) | USD 0.43 | 678301614353 |
| 180 (50Mn steel) | USD 0.46 | 678301614353 |
| 190 (50Mn steel) | USD 0.50 | 678301614353 |
| 200 (50Mn steel) | USD 0.55 | 678301614353 |
| 210 (50Mn steel) | USD 0.72 | 678301614353 |
| 220 (50Mn steel) | USD 0.82 | 678301614353 |
| 230 (50Mn steel) | USD 0.99 | 678301614353 |
| 240 (50Mn steel) | USD 1.12 | 678301614353 |
| 4 (500 pcs), 65Mn | USD 1.03 | 678301614353 |
| 5 (500 pcs), 65Mn | USD 1.03 | 678301614353 |
| 6 (500 pcs), 65Mn | USD 2.06 | 678301614353 |
| 7 (500 pcs), 65Mn | USD 2.06 | 678301614353 |
| 8 (500 pcs), 65Mn | USD 2.06 | 678301614353 |
| 9 (500 pcs), 65Mn | USD 2.06 | 678301614353 |
| 10 (500 pcs), 65Mn | USD 2.06 | 678301614353 |
| 11 (500 pcs), 65Mn | USD 2.06 | 678301614353 |
| 12 (500 pcs), 65Mn | USD 1.61 | 678301614353 |
| 13 (500 pcs), 65Mn | USD 2.06 | 678301614353 |
| 14 (500 pcs), 65Mn | USD 3.08 | 678301614353 |
| 15 (500 pcs), 65Mn | USD 3.08 | 678301614353 |
| 16 (500 pcs), 65Mn | USD 3.08 | 678301614353 |
| 17 (500 pcs), 65Mn | USD 3.08 | 678301614353 |
| 18 (500 pcs), 65Mn | USD 4.11 | 678301614353 |
| 19 (500 pcs), 65Mn | USD 4.11 | 678301614353 |
| 20 (500 pcs), 65Mn | USD 5.14 | 678301614353 |
| 22 (50 pcs), 65Mn | USD 0.62 | 678301614353 |
| 24 (50 pcs), 65Mn | USD 0.93 | 678301614353 |
| 25 (50 pcs), 65Mn | USD 0.93 | 678301614353 |
| 26 (50 pcs), 65Mn | USD 1.03 | 678301614353 |
| 28 (50 pcs), 65Mn | USD 1.03 | 678301614353 |
| 30 (50 pcs), 65Mn | USD 1.13 | 678301614353 |
| 32 (50 pcs), 65Mn | USD 1.23 | 678301614353 |
| 34 (50 pcs), 65Mn | USD 1.54 | 678301614353 |
| 35 (50 pcs), 65Mn | USD 1.85 | 678301614353 |
| 36 (50 pcs), 65Mn | USD 2.26 | 678301614353 |
| 37 (50 pcs), 65Mn | USD 2.26 | 678301614353 |
| 38 (50 pcs), 65Mn | USD 2.26 | 678301614353 |
| 40 (50 pcs), 65Mn | USD 2.26 | 678301614353 |
| 42 (50 pcs), 65Mn | USD 2.67 | 678301614353 |
| 45 (50 pcs), 65Mn | USD 3.08 | 678301614353 |
| 48 (50 pcs), 65Mn | USD 3.70 | 678301614353 |
| 50 (50 pcs), 65Mn | USD 4.52 | 678301614353 |
| 52 (50 pcs), 65Mn | USD 5.04 | 678301614353 |
| 55 (50 pcs), 65Mn | USD 5.15 | 678301614353 |
| 56 (50 pcs), 65Mn | USD 5.45 | 678301614353 |
| 58 (50 pcs), 65Mn | USD 5.66 | 678301614353 |
| 60 (50 pcs), 65Mn | USD 6.17 | 678301614353 |
| 62 (50 pcs), 65Mn | USD 6.17 | 678301614353 |
| 65 (50 pcs), 65Mn | USD 7.92 | 678301614353 |
| 68 (50 pcs), 65Mn | USD 9.36 | 678301614353 |
| 70 (50 pcs), 65Mn | USD 9.77 | 678301614353 |
| 72 (50 pcs), 65Mn | USD 10.26 | 678301614353 |
| 75 (50 pcs), 65Mn | USD 11.31 | 678301614353 |
| 78 (50 pcs), 65Mn | USD 11.82 | 678301614353 |
| 80 (50 pcs), 65Mn | USD 12.03 | 678301614353 |
| 85 (50 pcs), 65Mn | USD 12.44 | 678301614353 |
| 90 (50 pcs), 65Mn | USD 12.75 | 678301614353 |
| 95 (50 pcs), 65Mn | USD 13.16 | 678301614353 |
| 100 (50 pcs), 65Mn | USD 13.57 | 678301614353 |
| 105 (65Mn steel) | USD 0.31 | 678301614353 |
| 110 (65Mn steel) | USD 0.34 | 678301614353 |
| 120 (65Mn steel) | USD 0.55 | 678301614353 |
| 125 (65Mn steel) | USD 0.58 | 678301614353 |
| 130 (65Mn steel) | USD 0.64 | 678301614353 |
| 135 (65Mn steel) | USD 0.66 | 678301614353 |
| 140 (65Mn steel) | USD 0.68 | 678301614353 |
| 150 (65Mn steel) | USD 0.72 | 678301614353 |
| 160 (65Mn steel) | USD 0.74 | 678301614353 |
| 170 (65Mn steel) | USD 0.78 | 678301614353 |
| 180 (65Mn steel) | USD 0.86 | 678301614353 |
| 190 (65Mn steel) | USD 0.99 | 678301614353 |
| 200 (65Mn steel) | USD 1.00 | 678301614353 |
YOU MAY ALSO LIKE
Related Products
Discuss your requirements.
Support for your inquiry
Confirm specifications
Include standard, material, dimensions and quantity.
Reference your drawing
Include a drawing reference or special requirements in your message.
Request supply terms
Final price, lead time and availability are confirmed by quotation.
