PRODUCT SPECIFICATIONS

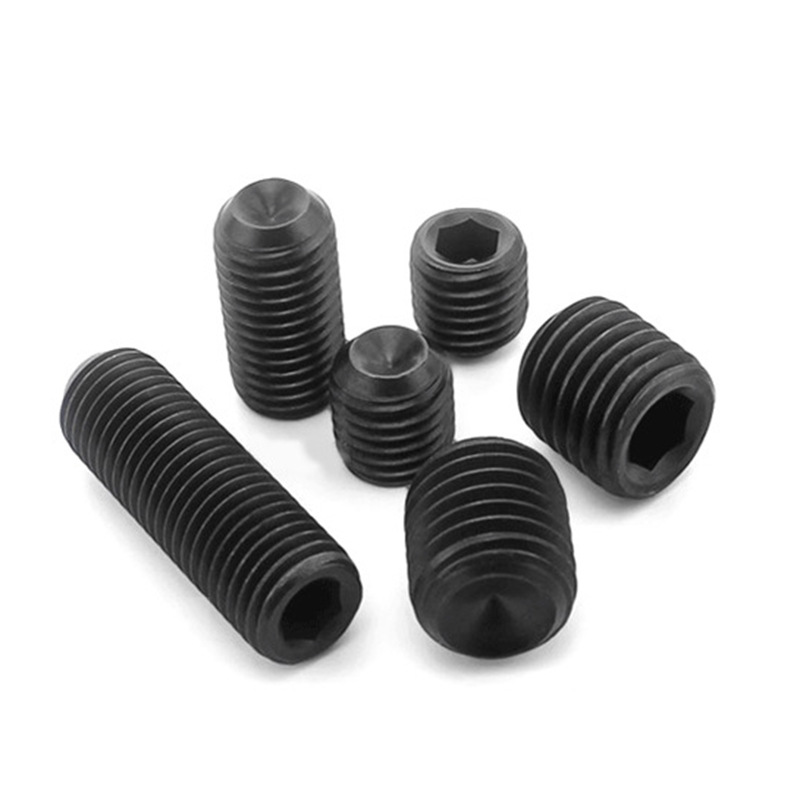

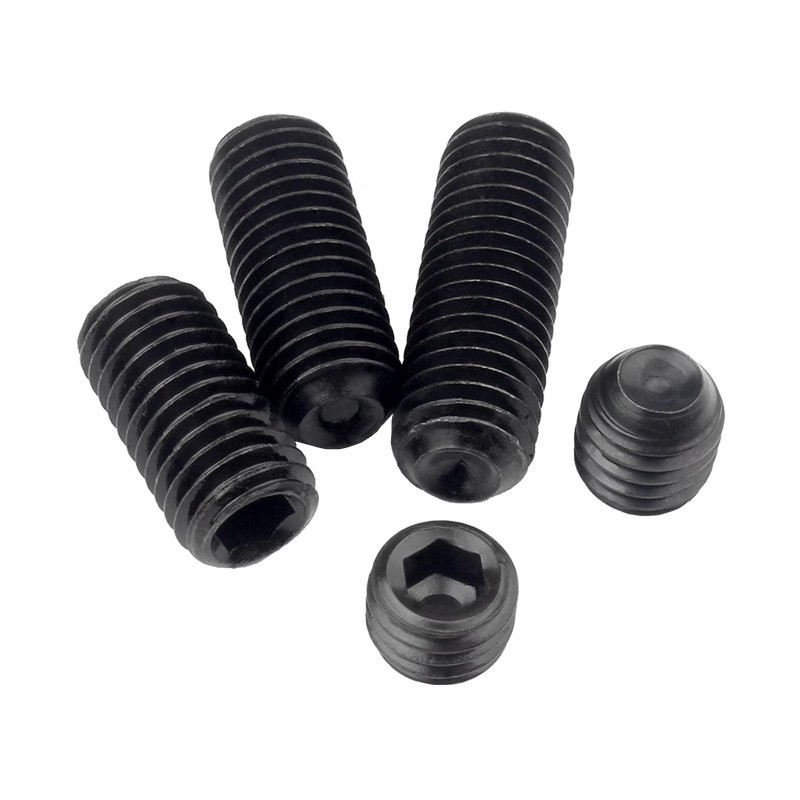

Grade 12.9 Cup-Point Hex Socket Set Screws, M3-M20
Grade 12.9 headless hex socket set screws with cup points, in the supplier's listed M3-M20 range. Select the exact size and pack option. Prices refer to the listed 100-piece pack options; no unsupported per-piece conversion has been made. Dimensions below reproduce the supplier's technical table.
Price range: $0.24 through $13.50
Reference unit price · Confirm quantity and terms by inquiry
Item Ref:
No online payment. Only email is required to inquire.
Product details
Grade 12.9 headless hex socket set screws with cup points, in the supplier's listed M3-M20 range. Select the exact size and pack option. Prices refer to the listed 100-piece pack options; no unsupported per-piece conversion has been made. Dimensions below reproduce the supplier's technical table.

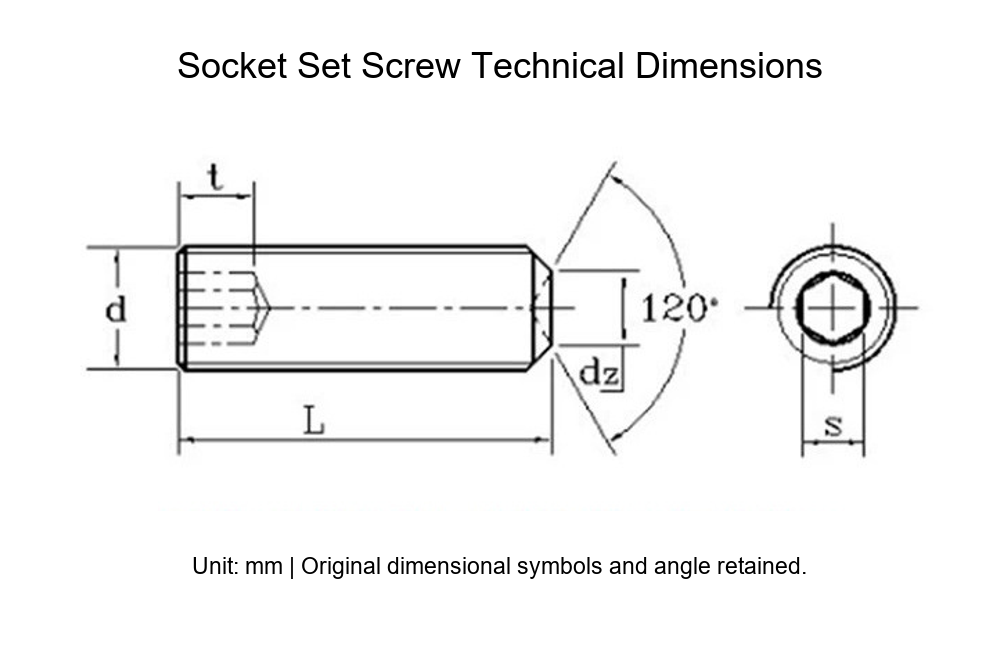

Technical Specifications
| Thread | Pitch (mm) | s nominal (mm) | s max (mm) | s min (mm) | t (mm) |
|---|---|---|---|---|---|
| M3 | .5 | 1.5 | 1.545 | 1.52 | 1.2 |
| M4 | .7 | 2 | 2.045 | 2.02 | 1.5 |
| M5 | .8 | 2.5 | 2.56 | 2.52 | 2 |
| M6 | 1 | 3 | 3.08 | 3.02 | 2 |
| M8 | 1.25 | 4 | 4.095 | 4.02 | 3 |
| M10 | 1.5 | 5 | 5.095 | 5.02 | 4 |
| M12 | 1.75 | 6 | 6.095 | 6.02 | 4.8 |
| M14 | 2 | 6 | 6.095 | 6.02 | 5.6 |
| M16 | 2 | 8 | 8.115 | 8.025 | 6.4 |
| M18 | 2.5 | 10 | 10.12 | 10.03 | 7.2 |
| M20 | 2.5 | 10 | 10.12 | 10.03 | 8 |
Model: 568854034172
View all specifications (131 options)
| Specification | Unit price | Item Ref |
|---|---|---|
| 3*3 (100 pcs) | USD 0.43 | 568854034172 |
| 3*4 (100 pcs) | USD 0.43 | 568854034172 |
| 3*5 (100 pcs) | USD 0.43 | 568854034172 |
| 3*6 (100 pcs) | USD 0.43 | 568854034172 |
| 3*8 (100 pcs) | USD 0.50 | 568854034172 |
| 3*10 (100 pcs) | USD 0.54 | 568854034172 |
| 3*12 (100 pcs) | USD 0.78 | 568854034172 |
| 3*16 (100 pcs) | USD 2.14 | 568854034172 |
| 3*20 (100 pcs) | USD 2.76 | 568854034172 |
| 4*4 (100 pcs) | USD 0.43 | 568854034172 |
| 4*5 (100 pcs) | USD 0.43 | 568854034172 |
| 4*6 (100 pcs) | USD 0.43 | 568854034172 |
| 4*8 (100 pcs) | USD 0.50 | 568854034172 |
| 4*10 (100 pcs) | USD 0.58 | 568854034172 |
| 4*12 (100 pcs) | USD 0.81 | 568854034172 |
| 4*16 (100 pcs) | USD 2.18 | 568854034172 |
| 4*20 (100 pcs) | USD 3.08 | 568854034172 |
| 4*25 (100 pcs) | USD 3.90 | 568854034172 |
| 5*4 (100 pcs) | USD 0.54 | 568854034172 |
| 5*5 (100 pcs) | USD 0.43 | 568854034172 |
| 5*6 (100 pcs) | USD 0.45 | 568854034172 |
| 5*8 (100 pcs) | USD 0.58 | 568854034172 |
| 5*10 (100 pcs) | USD 0.75 | 568854034172 |
| 5*12 (100 pcs) | USD 0.91 | 568854034172 |
| 5*16 (100 pcs) | USD 1.33 | 568854034172 |
| 5*20 (100 pcs) | USD 1.70 | 568854034172 |
| 5*25 (100 pcs) | USD 2.60 | 568854034172 |
| 5*30 (100 pcs) | USD 3.10 | 568854034172 |
| 5*35 (100 pcs) | USD 6.52 | 568854034172 |
| 5*40 (100 pcs) | USD 7.31 | 568854034172 |
| 5*45 (100 pcs) | USD 8.93 | 568854034172 |
| 5*50 (100 pcs) | USD 10.55 | 568854034172 |
| 6*5 (100 pcs) | USD 0.65 | 568854034172 |
| 6*6 (100 pcs) | USD 0.59 | 568854034172 |
| 6*8 (100 pcs) | USD 0.65 | 568854034172 |
| 6*10 (100 pcs) | USD 0.91 | 568854034172 |
| 6*12 (100 pcs) | USD 1.14 | 568854034172 |
| 6*16 (100 pcs) | USD 1.79 | 568854034172 |
| 6*20 (100 pcs) | USD 2.27 | 568854034172 |
| 6*25 (100 pcs) | USD 2.92 | 568854034172 |
| 6*30 (100 pcs) | USD 3.57 | 568854034172 |
| 6*35 (10 pcs) | USD 0.63 | 568854034172 |
| 6*40 (10 pcs) | USD 0.81 | 568854034172 |
| 6*50 (10 pcs) | USD 1.07 | 568854034172 |
| 6*55 (10 pcs) | USD 1.24 | 568854034172 |
| 6*60 (10 pcs) | USD 1.44 | 568854034172 |
| 6*70 (10 pcs) | USD 1.79 | 568854034172 |
| 8*6 (100 pcs) | USD 1.17 | 568854034172 |
| 8*8 (100 pcs) | USD 1.19 | 568854034172 |
| 8*10 (100 pcs) | USD 1.21 | 568854034172 |
| 8*12 (100 pcs) | USD 1.43 | 568854034172 |
| 8*16 (100 pcs) | USD 2.34 | 568854034172 |
| 8*20 (100 pcs) | USD 3.08 | 568854034172 |
| 8*25 (100 pcs) | USD 3.73 | 568854034172 |
| 8*30 (100 pcs) | USD 4.57 | 568854034172 |
| 8*35 (100 pcs) | USD 6.52 | 568854034172 |
| 8*40 (100 pcs) | USD 7.17 | 568854034172 |
| 8*45 (100 pcs) | USD 8.78 | 568854034172 |
| 8*50 (100 pcs) | USD 10.55 | 568854034172 |
| 8*55 (10 pcs) | USD 1.70 | 568854034172 |
| 8*60 (10 pcs) | USD 1.87 | 568854034172 |
| 8*70 (10 pcs) | USD 2.29 | 568854034172 |
| 8*80 (10 pcs) | USD 2.66 | 568854034172 |
| 10*8 (100 pcs) | USD 1.97 | 568854034172 |
| 10*10 (100 pcs) | USD 2.01 | 568854034172 |
| 10*12 (100 pcs) | USD 2.10 | 568854034172 |
| 10*14 (100 pcs) | USD 3.01 | 568854034172 |
| 10*16 (100 pcs) | USD 3.16 | 568854034172 |
| 10*20 (100 pcs) | USD 4.14 | 568854034172 |
| 10*25 (100 pcs) | USD 5.36 | 568854034172 |
| 10*30 (100 pcs) | USD 6.52 | 568854034172 |
| 10*35 (100 pcs) | USD 8.28 | 568854034172 |
| 10*40 (100 pcs) | USD 9.58 | 568854034172 |
| 10*45 (100 pcs) | USD 12.18 | 568854034172 |
| 10*50 (100 pcs) | USD 13.50 | 568854034172 |
| 10*55 (10 pcs) | USD 2.76 | 568854034172 |
| 10*60 (10 pcs) | USD 2.94 | 568854034172 |
| 10*70 (10 pcs) | USD 3.58 | 568854034172 |
| 10*80 (10 pcs) | USD 4.23 | 568854034172 |
| 10*90 (10 pcs) | USD 4.88 | 568854034172 |
| 10*100 (10 pcs) | USD 5.53 | 568854034172 |
| 12*10 (100 pcs) | USD 3.25 | 568854034172 |
| 12*12 (100 pcs) | USD 3.31 | 568854034172 |
| 12*16 (100 pcs) | USD 3.98 | 568854034172 |
| 12*20 (100 pcs) | USD 5.68 | 568854034172 |
| 12*25 (100 pcs) | USD 6.66 | 568854034172 |
| 12*30 (100 pcs) | USD 8.60 | 568854034172 |
| 12*35 (100 pcs) | USD 11.37 | 568854034172 |
| 12*40 (100 pcs) | USD 13.31 | 568854034172 |
| 12*45 (10 pcs) | USD 1.70 | 568854034172 |
| 12*50 (10 pcs) | USD 2.94 | 568854034172 |
| 12*55 (10 pcs) | USD 3.92 | 568854034172 |
| 12*60 (10 pcs) | USD 4.22 | 568854034172 |
| 12*70 (10 pcs) | USD 5.26 | 568854034172 |
| 12*80 (10 pcs) | USD 6.00 | 568854034172 |
| 12*90 (10 pcs) | USD 6.82 | 568854034172 |
| 12*100 (10 pcs) | USD 7.63 | 568854034172 |
| 14*14 (10 pcs) | USD 1.05 | 568854034172 |
| 14*16 (10 pcs) | USD 1.07 | 568854034172 |
| 14*20 (10 pcs) | USD 1.16 | 568854034172 |
| 14*25 (10 pcs) | USD 1.22 | 568854034172 |
| 14*30 (10 pcs) | USD 1.35 | 568854034172 |
| 14*35 (10 pcs) | USD 1.63 | 568854034172 |
| 14*40 (10 pcs) | USD 1.97 | 568854034172 |
| 14*45 (10 pcs) | USD 2.11 | 568854034172 |
| 14*50 (10 pcs) | USD 2.44 | 568854034172 |
| 14*55 (10 pcs) | USD 3.73 | 568854034172 |
| 14*60 (10 pcs) | USD 4.22 | 568854034172 |
| 16*16 (10 pcs) | USD 0.86 | 568854034172 |
| 16*20 (10 pcs) | USD 1.07 | 568854034172 |
| 16*25 (10 pcs) | USD 1.41 | 568854034172 |
| 16*30 (10 pcs) | USD 1.79 | 568854034172 |
| 16*35 (10 pcs) | USD 2.11 | 568854034172 |
| 16*40 (1 pcs) | USD 0.24 | 568854034172 |
| 16*45 (1 pcs) | USD 0.29 | 568854034172 |
| 16*50 (1 pcs) | USD 0.34 | 568854034172 |
| 16*60 (1 pcs) | USD 0.75 | 568854034172 |
| 16*70 (1 pcs) | USD 1.07 | 568854034172 |
| 16*80 (1 pcs) | USD 1.24 | 568854034172 |
| 16*90 (1 pcs) | USD 1.40 | 568854034172 |
| 16*100 (1 pcs) | USD 1.55 | 568854034172 |
| 20*25 (1 pcs) | USD 0.67 | 568854034172 |
| 20*30 (1 pcs) | USD 0.74 | 568854034172 |
| 20*40 (1 pcs) | USD 0.95 | 568854034172 |
| 20*45 (1 pcs) | USD 1.07 | 568854034172 |
| 20*50 (1 pcs) | USD 1.19 | 568854034172 |
| 20*60 (1 pcs) | USD 1.90 | 568854034172 |
| 20*70 (1 pcs) | USD 2.38 | 568854034172 |
| 20*80 (1 pcs) | USD 2.62 | 568854034172 |
| 20*90 (1 pcs) | USD 3.07 | 568854034172 |
| 20*100 (1 pcs) | USD 3.53 | 568854034172 |
